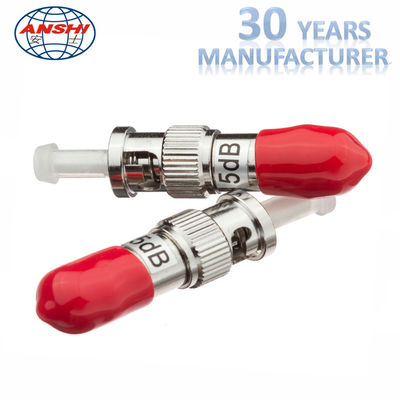

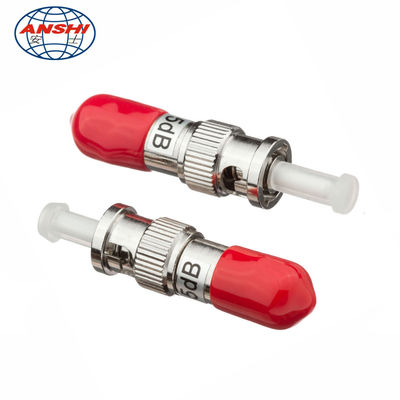

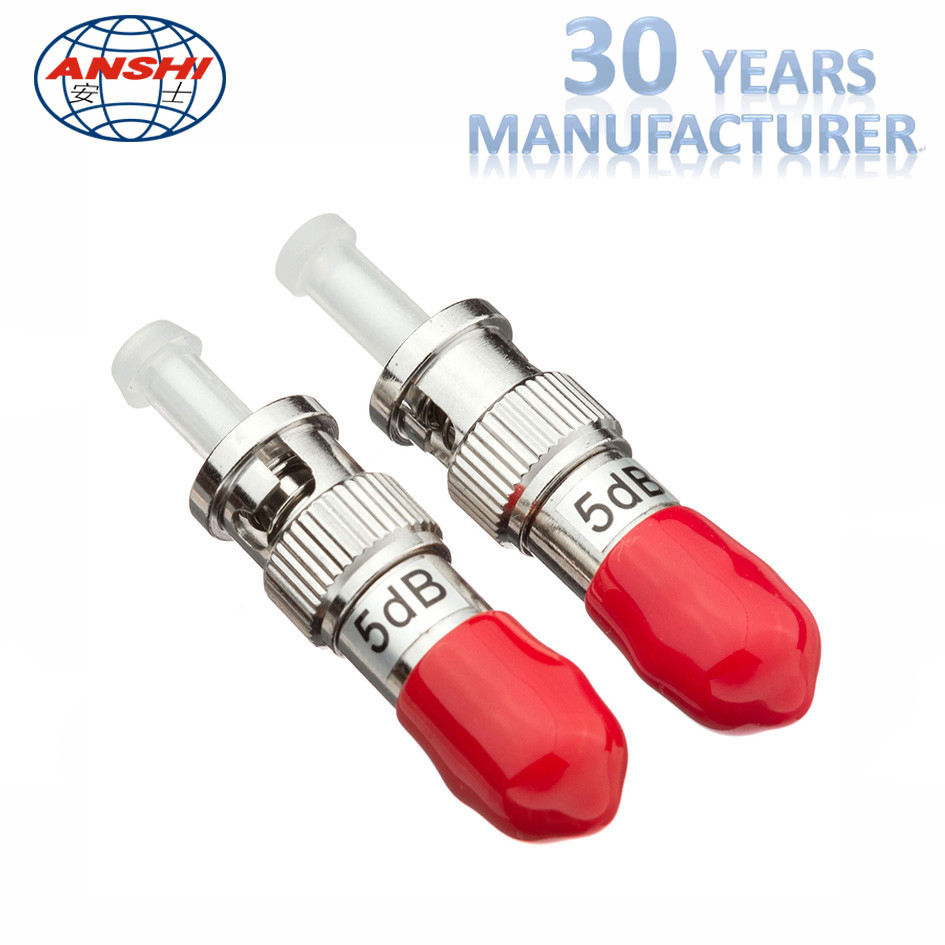

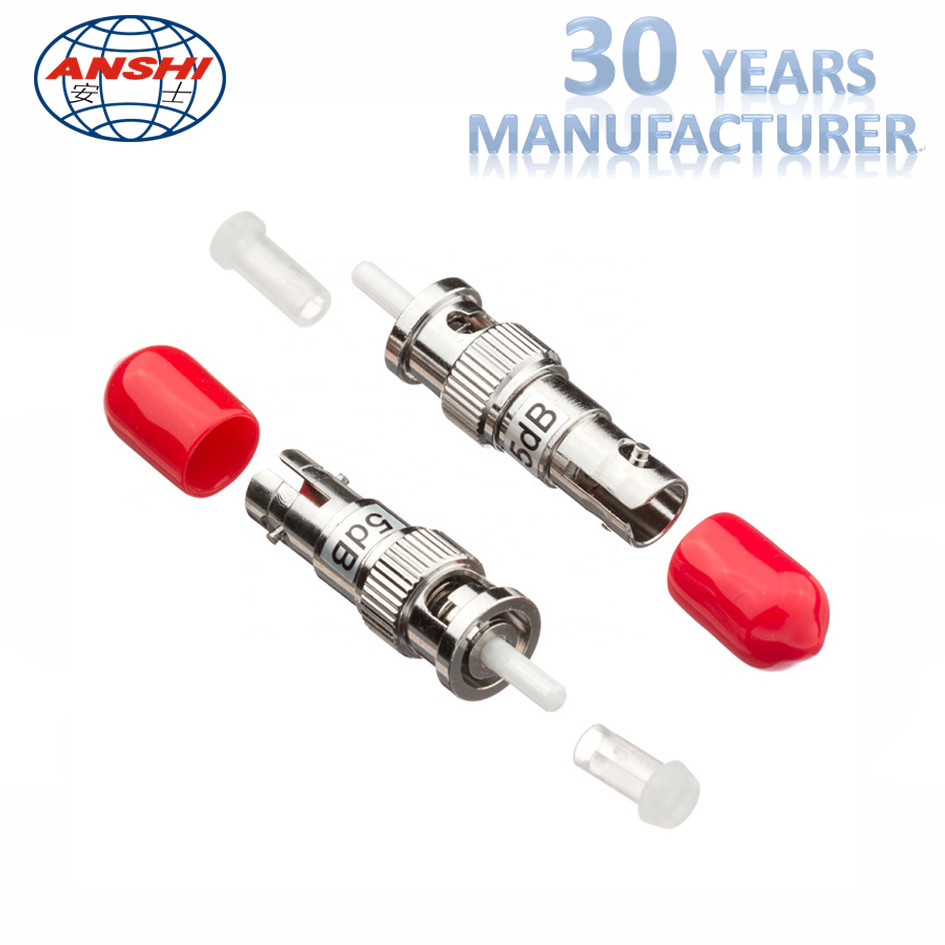

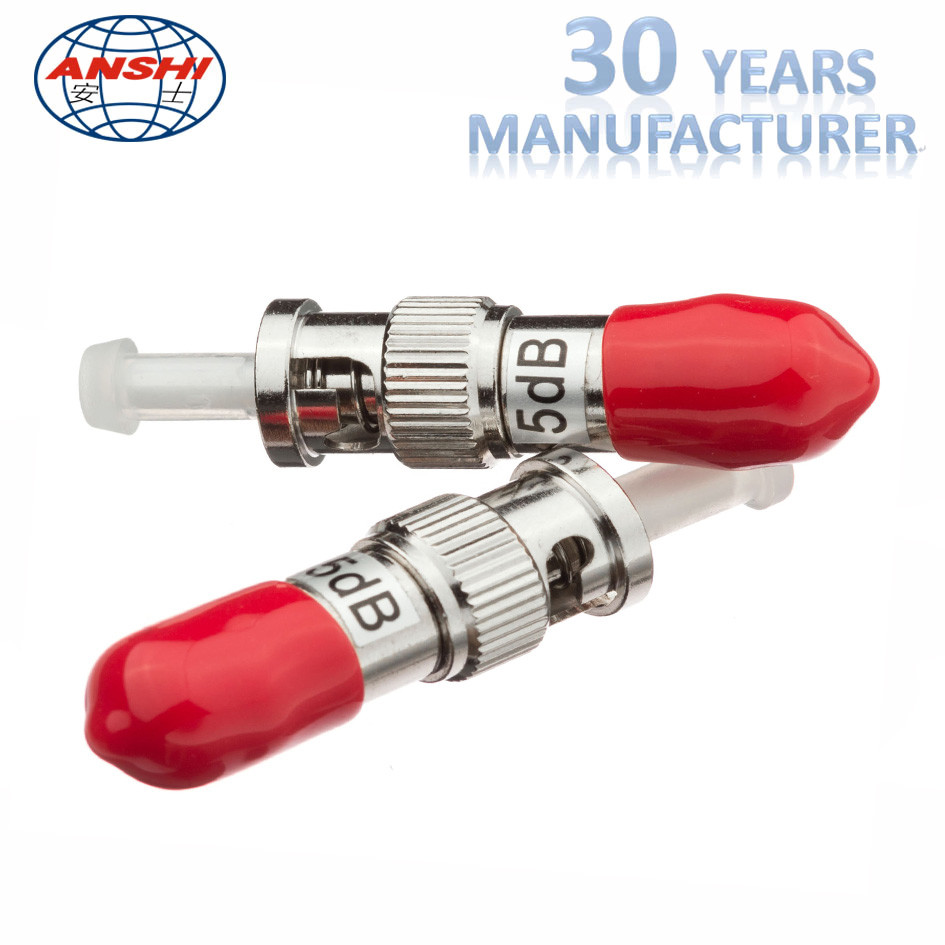

Fiber Optic ST SM Male to Female Attenuator

  • Fiber Optic ST SM Male to Female Attenuator
  • Fiber Optic ST SM Male to Female Attenuator
  • Fiber Optic ST SM Male to Female Attenuator
  • Fiber Optic ST SM Male to Female Attenuator
Place of Origin China
Brand Name ANSHI
Certification ROHS, ISO9001
Model Number AS-SJQ-ST
Minimum Order Quantity Negotiable
Price Negotiable
Supply Ability 500,000pcs/week
Product Details
Product Name Fiber Optic Attenuator Specification 1~20dB
Type Male To Female Attenuator Value 0~30dB Can Be Chose
Fiber Type SM Application Telecommunciation
Highlight

fiber optic cable accessories

,

optical cable accessories
Leave a Message
Product Description

Fiber Optic ST SM Male to Female Attenuator



FTTH Passive FC Fiber Optic Attenuator



Features:

1. Low back reflection and Low PDL

2. High precision attenuation value
3. Precision control of attenuation range
4. Wide attenuation range
5. Precision ceramic ferrule
6. FC, SC, ST, LC … optional
7. Plastic or metal housing material



Application:

• Fiber Optical distributing frame
• Fiber Optical network system
• High speed fiber optical transmission system
• CATV system
• Long distance DWDM system
• Optical add-drop multiplexers(OADM)



Specifications:


Attenuation Value 1dB ~ 30dB
Operating Wavelength 1240 ~ 1620nm (Dual 1310/1550nm)
Premium
Return Loss UPC >55dB
APC >65dB
Attenuation
Accuracy		 1 ~ 7 dB ±0.5dB
8 ~ 12 dB ±0.7dB
13 ~ 17 dB ±1.0dB
18 ~ 25 dB ±1.3dB
Maximum Optical Input Power 1000mW
Polarization Dependent Loss ≤0.1dB
Operating Temperature Range -40 to 75
Storage Temperature Range -40 to 85
Humidity 95%RH

Fiber Optic ST SM Male to Female Attenuator 0
