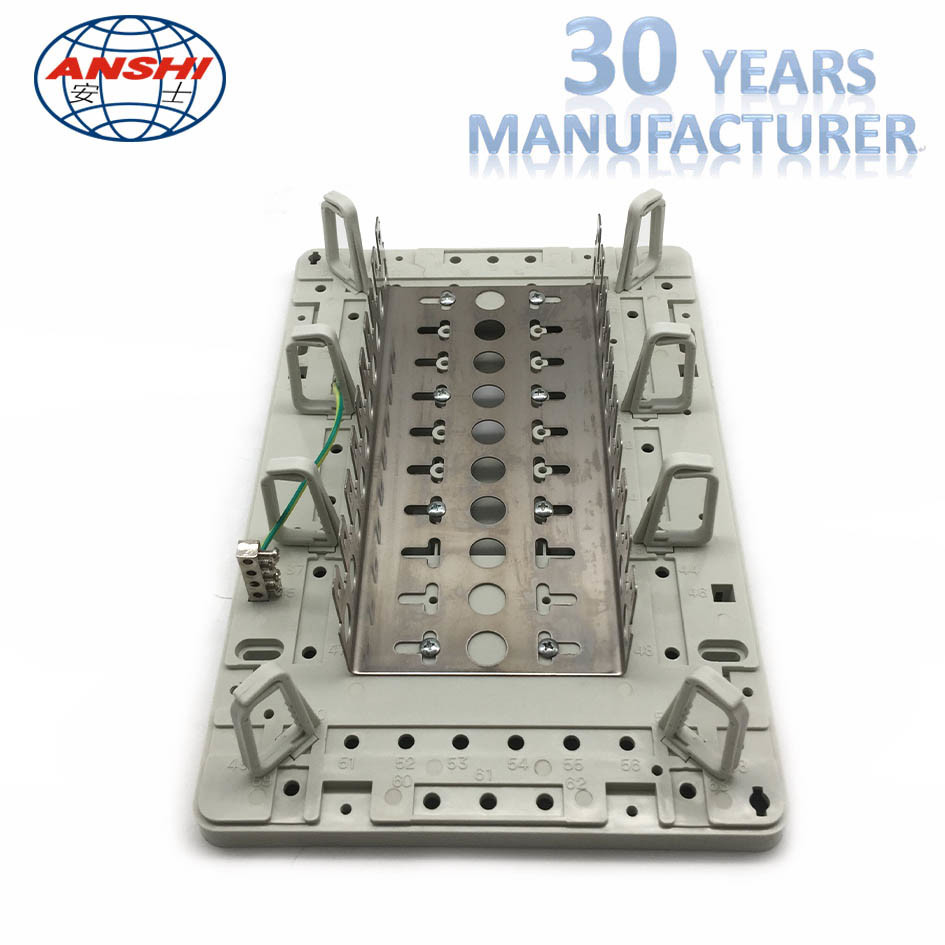

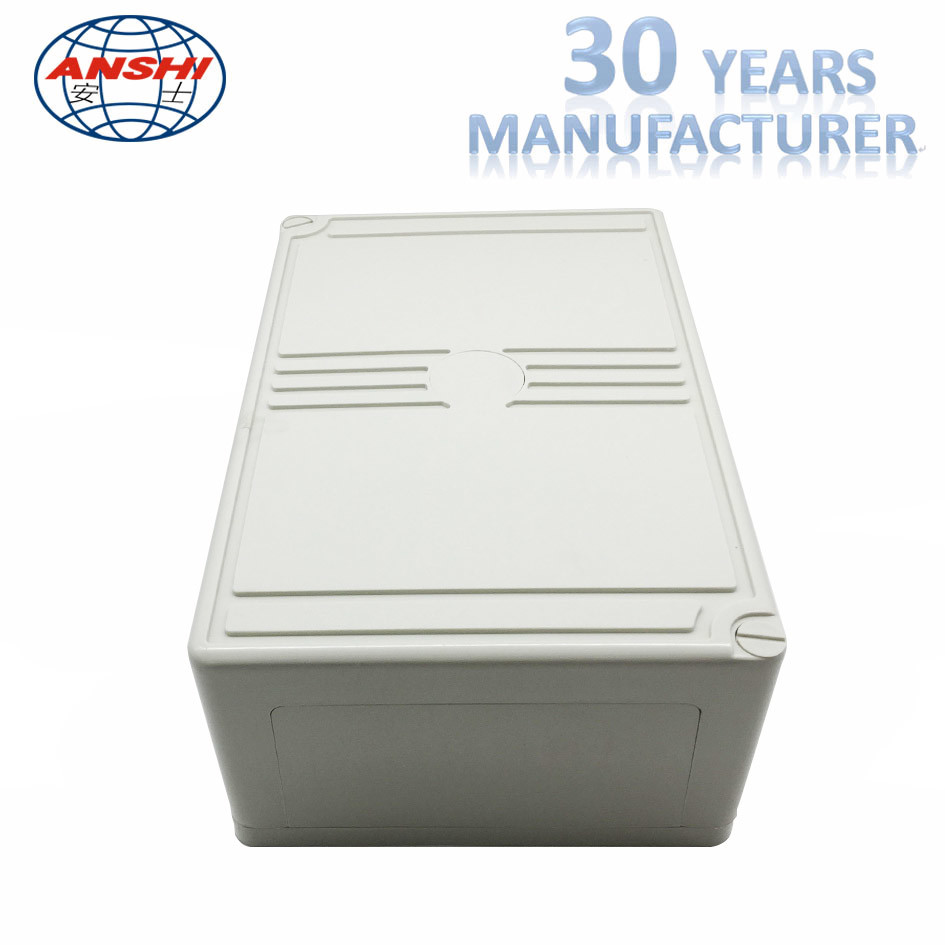

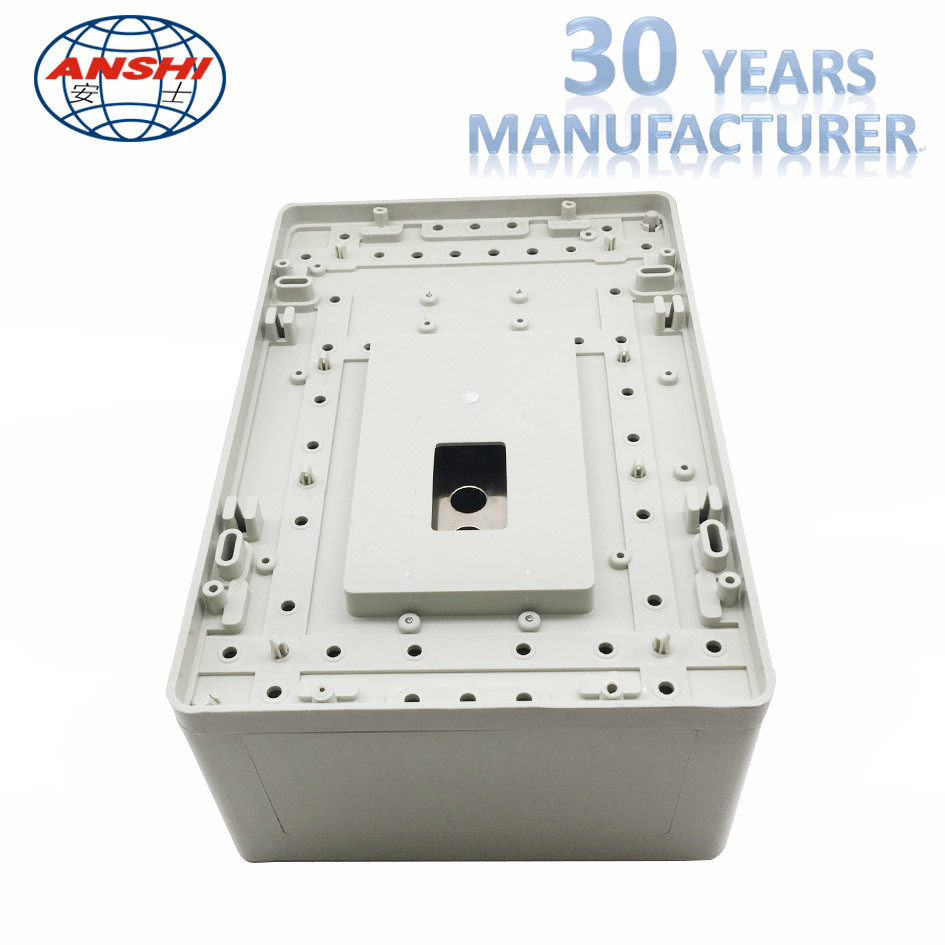

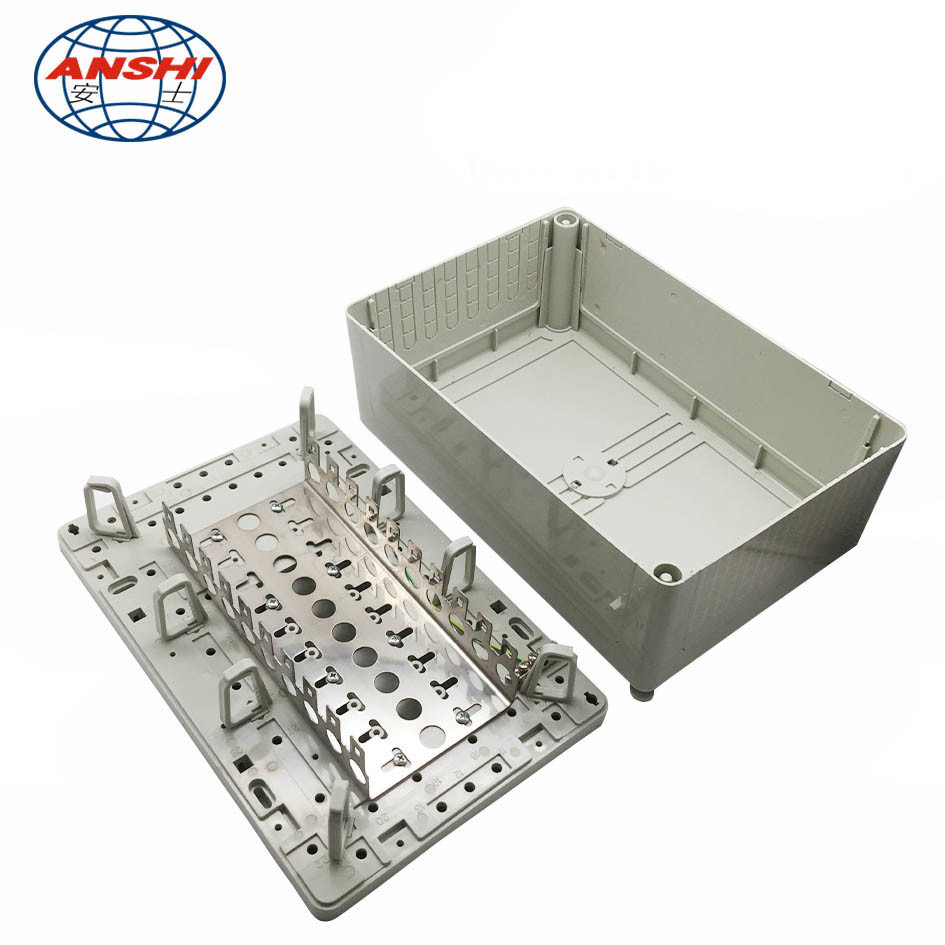

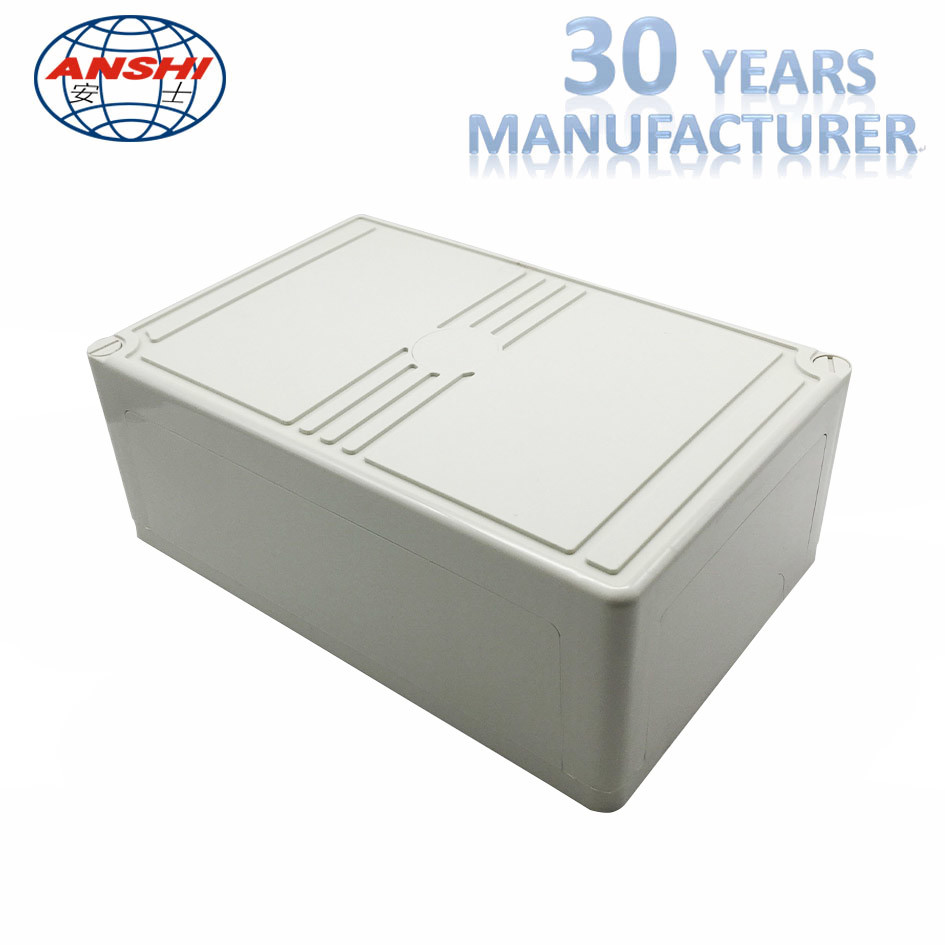

100 Pairs Cable Distribution Box Telephone Distribution Box For LSA Module

100 Pairs Cable Distribution Box Telephone Distribution Box For LSA Module

100 Pairs Cable Distribution Box Telephone Distribution Box For LSA Module

Product Details:

Place of Origin: ZHEJIANG, CHINA
Brand Name: ANSHI
Certification: ISO 90001, SGS, DAS
Model Number: AS-DB100B

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 69*34*54cm, 18pcs/ctn, 24kgs, 23kgs
Supply Ability: 50000 Pieces per Month
Contact Now
Detailed Product Description
Product: Telephone Distribution Box Material: ABS
Color: White Type: 100 Pairs
Lock: Screw Lock Application: Telephone

KRONE CONNECTION BOX 301A Cable Distribution Box 100 Pair For LSA Module



Features:


1) Can be mounted with LSA-PLUS 10-pair distribution or connection module


2) Waterproof box, suitable for outdoor wire distribution


3) Material of house: ABS


4) Including stainless steel mounting frame, but modules to be ordered separately


5) Including 1 back mount frame(10ways)


6) Compatible with Krone modules


Specifications:



1. Environment condition: -5-40 degree Celsius ;Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa ;


2. The modules are compatible with KRONE LSA-PLUS modules.


3. The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires


4. Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N


5. Internal diameter of connection wire: 0.4-0.6 mm


6. The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard



7. Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections


8. Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition


9. Intermediate resistance: no more than 3m ohm under standard examination condition


10. Dielectric strength: according to industry standard


11. Specification:10-30 pairs,Waterless,every specification has connection or disconnection types


12. Life: durability 200 cycles



100 Pairs Cable Distribution Box Telephone Distribution Box For LSA Module
