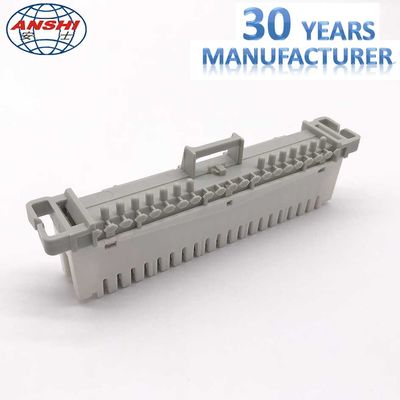

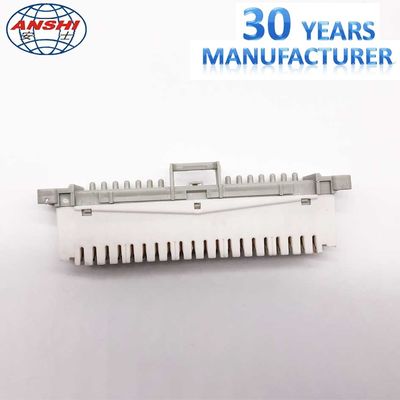

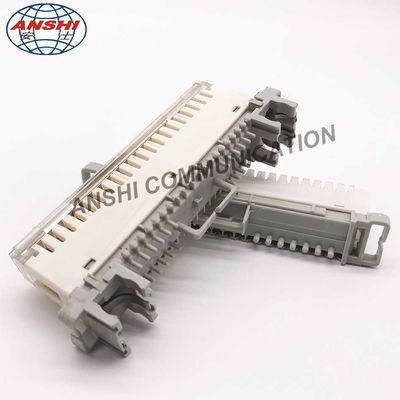

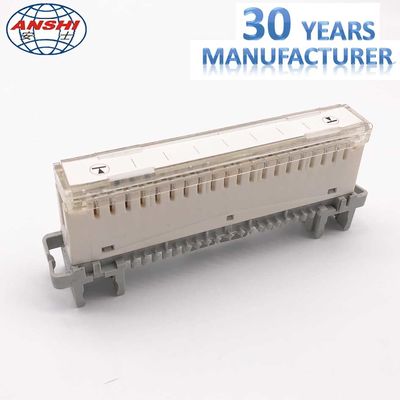

Telecommunication LSA Plus Module 10 Pair Disconnection Module High Endurance

Telecommunication LSA Plus Module 10 Pair Disconnection Module High Endurance
Telecommunication LSA Plus Module 10 Pair Disconnection Module High Endurance Telecommunication LSA Plus Module 10 Pair Disconnection Module High Endurance Telecommunication LSA Plus Module 10 Pair Disconnection Module High Endurance Telecommunication LSA Plus Module 10 Pair Disconnection Module High Endurance Telecommunication LSA Plus Module 10 Pair Disconnection Module High Endurance

Large Image :  Telecommunication LSA Plus Module 10 Pair Disconnection Module High Endurance

Product Details:
Place of Origin: ZHEJIANG, CHINA
Brand Name: ANSHI
Certification: ISO9001, CNACL, SGS, DAS
Model Number: XL-011
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: CARTON:53*24*24CM
Supply Ability: 10000 pcs per week
Detailed Product Description
Product Name: 10 Pair Krone Module Material: ABS Or PBT
Contact Pin: Silver-plated Phosphor Bronze Flame Retardance: UL94-V0 Or NOT
Application: Telecommunication Type: Disconnection
High Light:

krone connection module

,

krone disconnection module

KRONE 237A Module 10 Pair Disconnection Module​



Features:


1) Temperature: -5 - 40°C
2) Relative humidity: <85% (+30°C)
3) Atmospheric pressure: 70 106KPa
4) Material: stainless steel and cuprum, cuprum gold plating over nickel
5) Performance of anti-burn: PPT (UL94V-0) or anti-burn ABS (UL94V-0),
combustibility of GB/T 5169.7-1985 standard
6) Construction features: adopts modularization design, elegant
outlook and high endurance
7) Pulling-out force: tin bronze and silver plating (20 - 40uinch), pulling-out
force not less than 25N
8) Intermediate resistance between reed terminators: no more than 7m
(ohm between intermediate reeds under standard examination
condition)
9) Intermediate resistance: no more than 3m ohm under standard
examination condition
10) Performance impedance: 120Ω (balance)
11) Work rate: 2mb/s
12) Insulation resistance: 1,000mΩ / 500V (DC)
13) Resistance to voltage: no breakdown or arc for 1 minute under 1kV (DC)
14) Crosstalk ratio: ≥60dB (50kHz - 210MHz)
15) Plug-in loss: ≤0.4dB (50kHz - 210MHz)
16) Back wave loss: ≥18dB (50kHz - 210MHz)
17) Life: 200 cycles





Technique Characteristics:

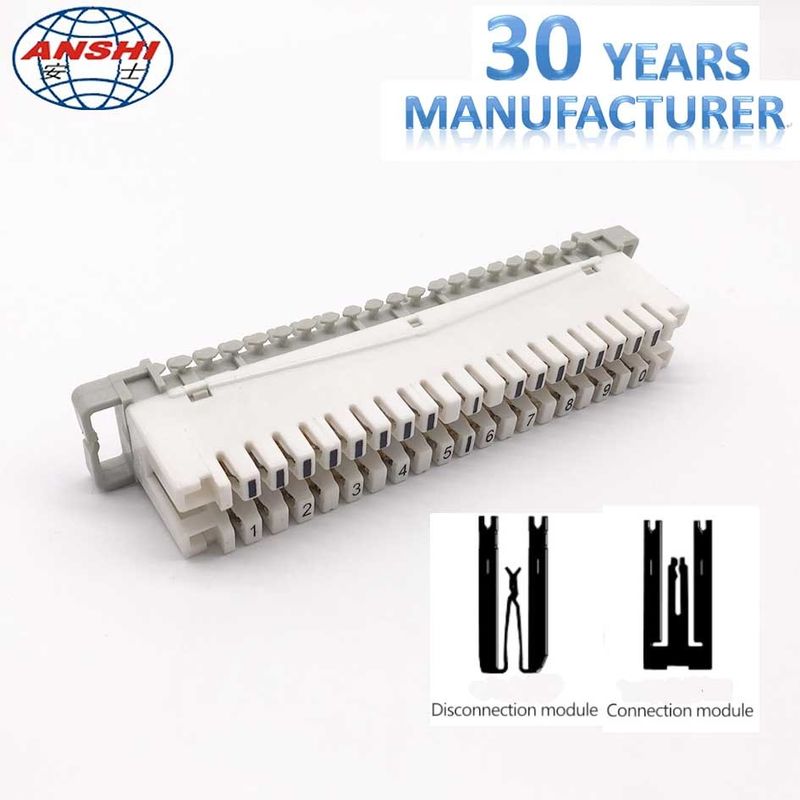

The disconnection type CT module have provision of testing the electrical parameters of the exchange and distribution sides by insertion of test plug without actually disconnecting the jumper wire or the cable from the termination module.



The module housing material we mainly offer with imported GE PBT and ABS(UL94V-0).Both material we will use new rall material but not recycling material(first recycling or second recycling).So we can offer good performance modules.You can get very cheap products in the market but they are mainly made of such recycling material PBT or ABS.



Mechanical Performance Insertion force : 40~75N
Pull Out Force : F≥25N(axial) F≥7.5N(radial)
IDC Life : 200 times(20-26 AWG Solid wire) minimum
Copper Conductor Diameter: Φ0.4~Φ0.8(mm)
Environment Characteristic Storage Tempreture: 40 to 70°C
Operating Temperature : 10 to 60°C
Relative Humidity: 95%, noncondition
Electrical Performance Insulation resistance: 1000 Mohms minimum
Contact resistance:7 mohms maximum

Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s
