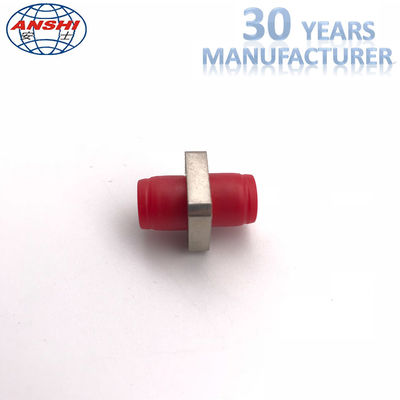

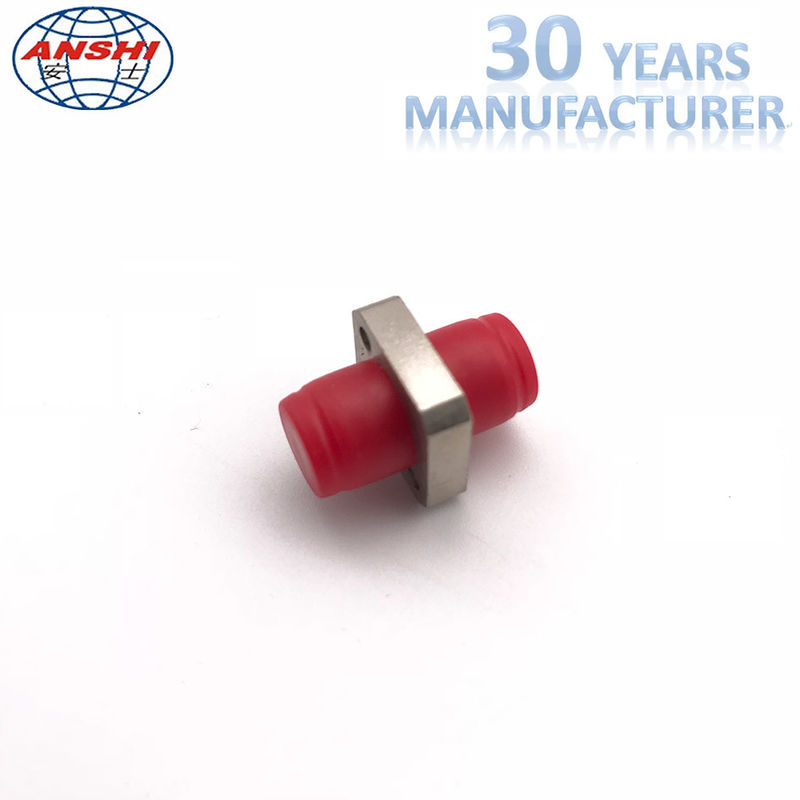

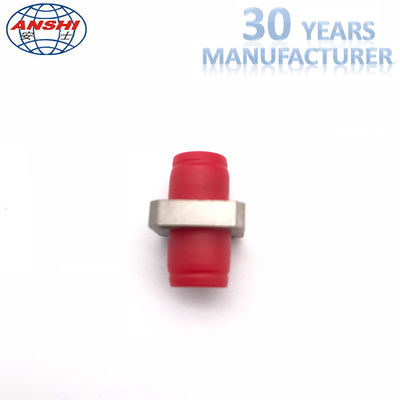

SC/FC SC Optical Adapters Square Type Optic Adaptor To Sm Fc Fiber Adapter

  • SC/FC SC Optical Adapters Square Type Optic Adaptor To Sm Fc Fiber Adapter
  • SC/FC SC Optical Adapters Square Type Optic Adaptor To Sm Fc Fiber Adapter
  • SC/FC SC Optical Adapters Square Type Optic Adaptor To Sm Fc Fiber Adapter
Place of Origin China
Brand Name ANSHI
Certification ROHS, ISO9001
Model Number AS-ADP-ST
Minimum Order Quantity Negotiable
Price Negotiable
Supply Ability 500,000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Adapter Working Wavelength Working Wavelength
Packing Poly Bag Type ST
Mode Singlemode Or Multimode Application FTTH, FTTX
Highlight

fiber optic cable accessories

,

optical cable accessories
Leave a Message
Product Description



SC/FC SC optical adapters square type optic adaptor to sm fc fiber adapter



Product Description
Product Name SC/FC APC high quality SC optical fc/apc adapters square type optic adaptor to fc fiber adapter
Modle Number FC SX Square-Flange Adapter
Inserion Loss ≤0.3dB
Durability >1000 times
Operating Temp -40~70°C
Material Metal
Application FTTx,LAN,CATV,Telecom
Certification RoHS,SGS,CE
Connector Type FC-FC
Polish Type UPC;APC
Fiber Mode Singlemode; Multimode; OM3; OM4;OM5
Color SM:Blue,Green MM:Beige OM3:Aqua OM4:Violet OM5:Lime green
Core Simplex
Flange with flange/with ear;
Form of sale Neutral/OEM/ODM
Use Fiber connection
Custom Design welcom
Sample Lead Time within 7 days after confirmation
Advantage Best price,best service
Payment Terms T/T in advance; Others(subject to negotiation between both parties)
Features



•Excellent Temperature stability

•Low insertion loss ,high return loss

•Good repeatability and exchangeability

•Excellent mechanical endurance

•Customer defined specifications

•Compliant with Telcordia,TIA/EIA and IEC


Insertion loss(typical) ≤0.3dB
Interchangeability ≤ 0.2dB
Vibration ≤ 0.2dB
Repeatability ≤ 0.2dB
Durability >1000 times
Operating temperature -40˜75°c
Storage temperature -45˜85°c

• Low insertion loss,high return loss

• Excellent Temperature stability

• Good repeatability and exchangeability

• Excellent mechanical endurance

• Strict curing time and temperature control

• Strict testing standards and methods for quality

• Environment protection (ROHS Compliance)

• The fiber optical patch cord can be customized according to customers'specific

requirements (Customized Connector/Length/package...)

• 100% NEW raw material and well quality control ensure the best life time.

SC/FC SC Optical Adapters Square Type Optic Adaptor To Sm Fc Fiber Adapter 0SC/FC SC Optical Adapters Square Type Optic Adaptor To Sm Fc Fiber Adapter 1
SC FIBER OPTIC ADAPTER
Parameter Unit Description
Insertion loss dB ≤ 0.2
Return loss dB PC≥45 UPC≥50 APC≥60
Mechanical endurance(500T) dB ≤ 0.2
Exchangeability dB ≤ 0.2
Operating Temperature °C -40~+75
Storage Temperature °C -40~+85
Relative Humidity % 95
Parameter Unit Optical Attenuator
Fixed Variable
Operation wavelength nm 1310/1550 1200~1600
Attenuation value dB +/- 0.5(≤10 dB) 0~3
+/-1.0 >10 dB)
Max. Optic input power mW 500 500
Max. PDL dB ≤0.1 ≤0.1
Return loss dB UPC >50
APC <60
