Network 110 Punch Block 19" 1U 110 Cross Connect Distribution Frame

Network 110 Punch Block 19" 1U 110 Cross Connect Distribution Frame
Network 110 Punch Block 19" 1U 110 Cross Connect Distribution Frame Network 110 Punch Block 19" 1U 110 Cross Connect Distribution Frame Network 110 Punch Block 19" 1U 110 Cross Connect Distribution Frame

Large Image :  Network 110 Punch Block 19" 1U 110 Cross Connect Distribution Frame

Product Details:
Place of Origin: CHINA
Brand Name: ANSHI
Certification: ISO9001
Model Number: XL-4020-1A
Payment & Shipping Terms:
Minimum Order Quantity: Can Discuss
Price: Negotiable
Supply Ability: 5000/week
Detailed Product Description
MATERIAL: ABS INSTALL: 19"
Height: 1U Capacity: 100 Pairs
IDC: 110 Application: Network
High Light:

110 connecting block

,

mdf terminal block

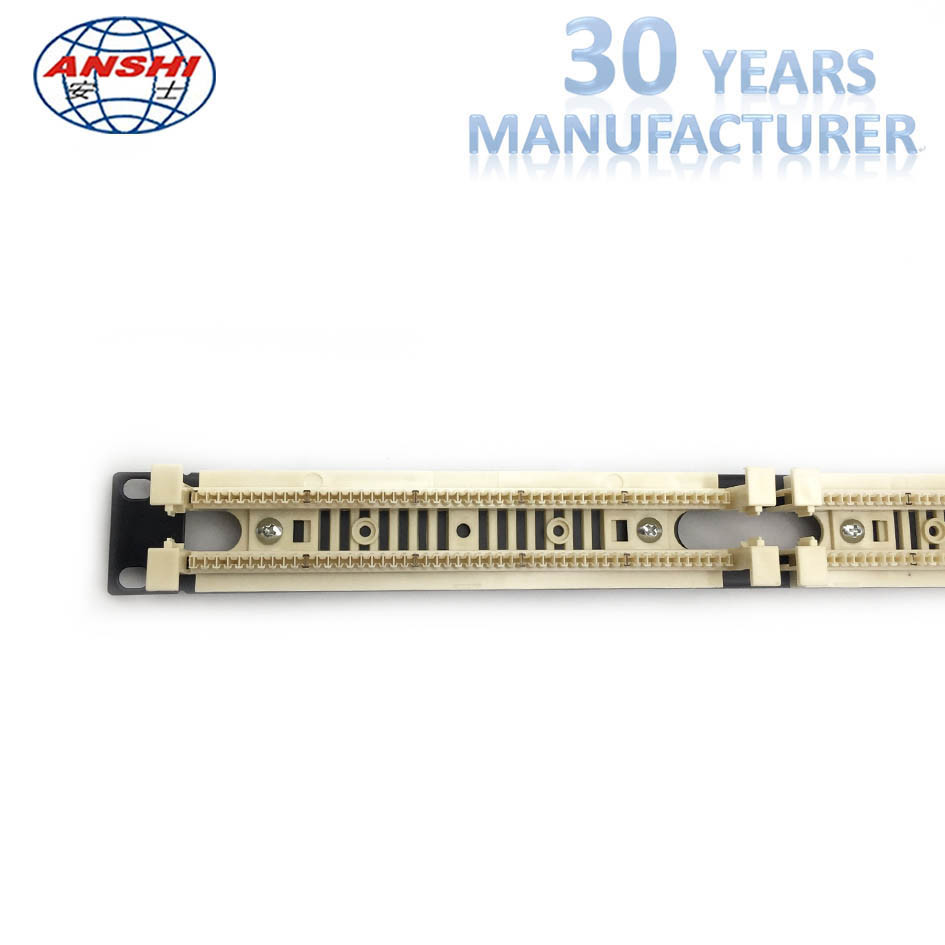

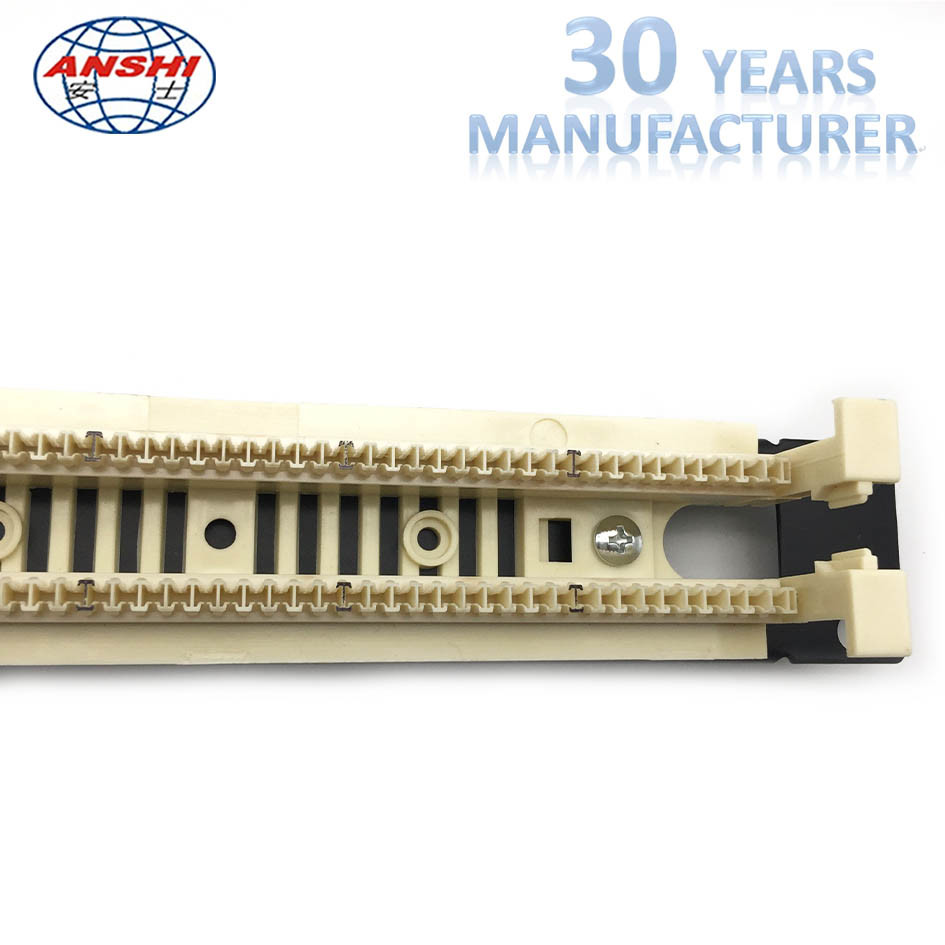

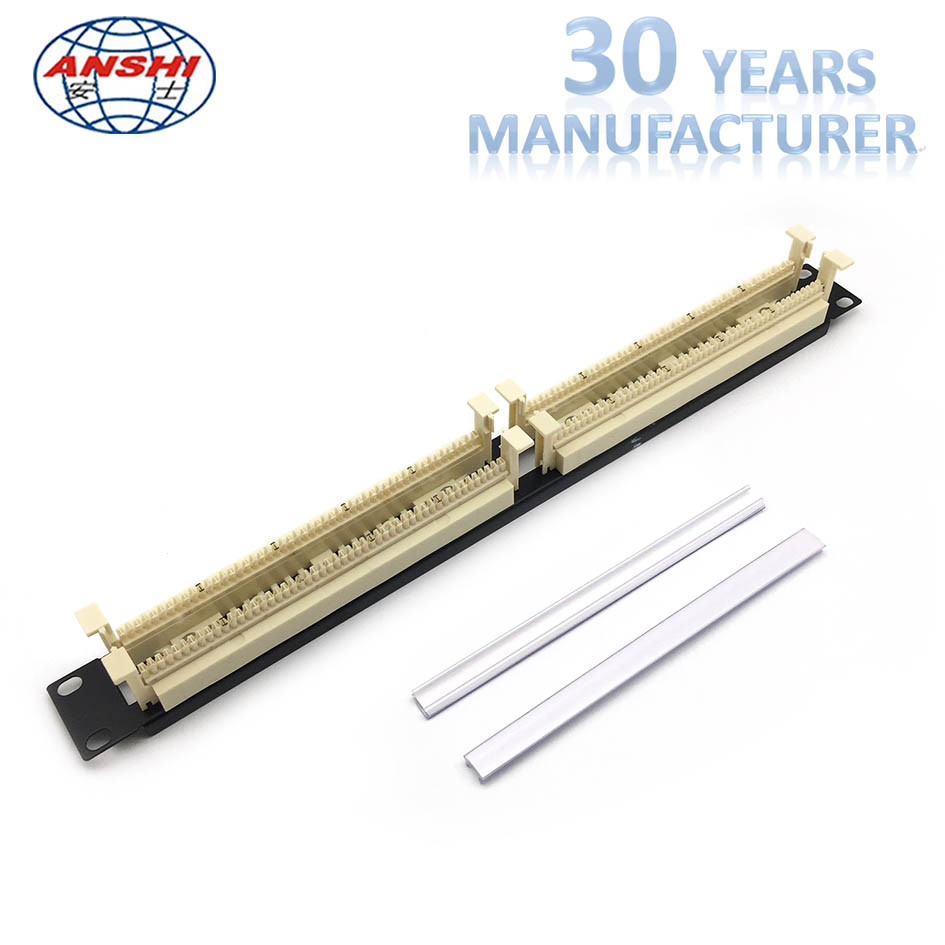

Network 110 Terminal Block 19" 1U 110 Cross Connect Distribution Frame



With 110 IDC connector.

We offer a complete set .

All parts including: 110 connect block(100 pairs or 200 pairs).

19'' Metal back panel,label holder,4-pair 110 IDC connector,5 pair 110 IDC Connector. 110 Cross connect block with 19'' back panel is suitable for all kinds of 19'' standard of mounting frame or cabinet. This product combines the easy terminaltion features of the 110-style Punch-down system with the proven performance characteristics of modular jacks.

From the closed to the workstation,the 110 cross connect system offers a complete,cost-effective means to wire a buliding for unshielded twisted pair applications.

Patch panels and jacks are available in T568A, T568b wiring standards; Making the 110 connect system adaptable to changing requirements.





Features and benefits

1. Type: 100 pair rack mount 110 wiring block

2. Available with legs or without legs to the wiring base

3. Easy to adjust, easy to embed wires in

4. Wiring blocks are designed to support voice and high-speed data Application

5. Offering a reliable and economical high-density system

6. The terminal blocks accommodate 22-26 AWG with an insulation diameter of 0.4-0.64mm

7. IDC contract material: phosphor bronze with tin plating over nickel

8. Available with T568A.T568B wiring pattern



Network 110 Punch Block 19" 1U 110 Cross Connect Distribution Frame 0
