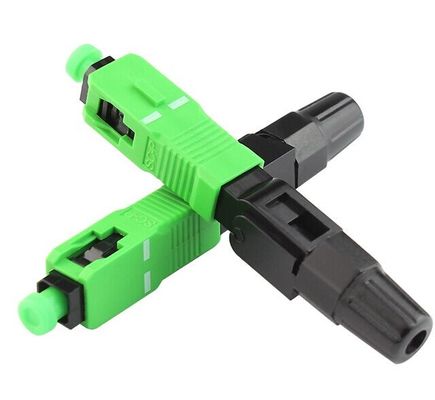

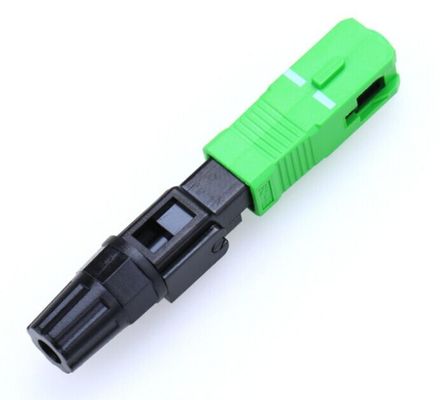

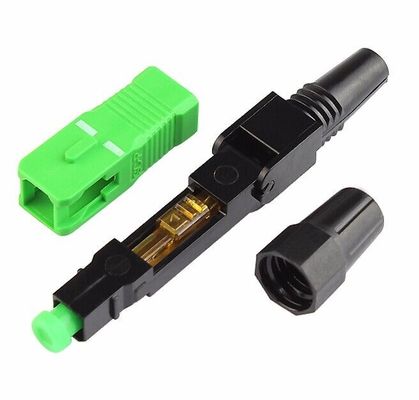

Ftth Sc / Apc Fiber Optic Accessories Quick Connector Single Mode Fiber Adapter

  • Ftth Sc / Apc Fiber Optic Accessories Quick Connector Single Mode Fiber Adapter
  • Ftth Sc / Apc Fiber Optic Accessories Quick Connector Single Mode Fiber Adapter
  • Ftth Sc / Apc Fiber Optic Accessories Quick Connector Single Mode Fiber Adapter
Place of Origin China
Brand Name ANSHI
Certification ROHS, ISO9001
Model Number AS-ODF-KJT-02-SC/APC
Minimum Order Quantity Negotiable
Price Negotiable
Supply Ability 500,000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Quick Connector Working Wavelength Working Wavelength
Repeatability Repeatability Type SC/APC
Mode Singlemode Or Multimode Application FTTH System
Highlight

optical cable accessories

,

fiber optic cable accessories
Leave a Message
Product Description

FTTH SC / APC Optical Fiber Quick Connector Single Mode Fast Connector





Product Attributes

Supply pre-embedded FTTH SC/APC fiber optic quick connector

Features:

1. FTTH project usable

2. Field installable

3. Insert loss less than 0.15dB

4. Metal V-shape cavity work well in high and low temperature

5. Installation less than 1 minutes

6. Reliable and superior optical performance

7. Cable Tensile test complies with Telcordia GR-326-COR



Application:

1. Distribution frames

2. Maintenance or emergency restoration of fiber networks

3. Patch panels

4. FTTH Outlets

5. Field word



ITEM Technical Parameters
Applicable for

Drop cable / Indoor cable

0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter

SM(9/125), MM(50/125, 62.5/125)

125μm ( 657A & 657B )
Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm)
Return loss > 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber >5 N
Fastening strength of naked fiber holder >10 N
Tensile strength >50 N
Using temperature -40~+75°C
On-line tensile strength (20 N) IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times) IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times) IL ≤ 0.






Ftth Sc / Apc Fiber Optic Accessories Quick Connector Single Mode Fiber Adapter 0

Ftth Sc / Apc Fiber Optic Accessories Quick Connector Single Mode Fiber Adapter 1
