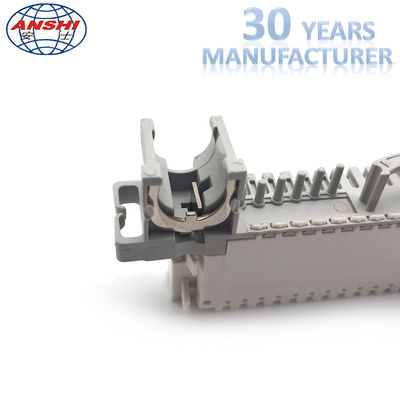

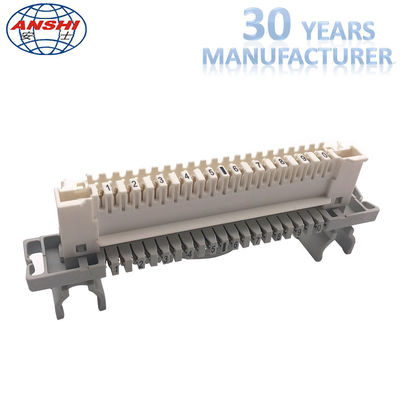

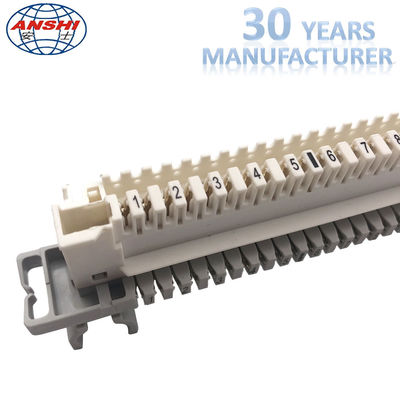

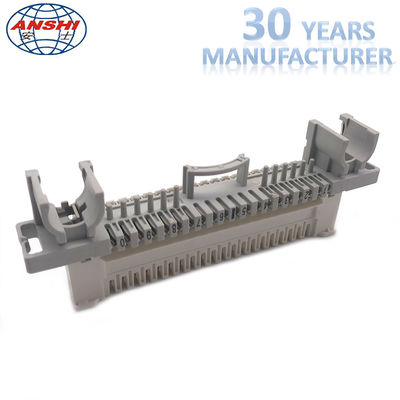

High Density 10 Pair Disconnection Module NT Terminal Block Orbit Universal Type

  • High Density 10 Pair Disconnection Module NT Terminal Block Orbit Universal Type
  • High Density 10 Pair Disconnection Module NT Terminal Block Orbit Universal Type
  • High Density 10 Pair Disconnection Module NT Terminal Block Orbit Universal Type
  • High Density 10 Pair Disconnection Module NT Terminal Block Orbit Universal Type
Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification ISO9001, CNACL, SGS, DAS
Model Number XL-011NT
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details CARTON:53*24*24CM
Supply Ability 60000 pcs per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name NT Module Capacity 10 Pairs
Material PBT With 94V0 Flame Retardant Contact Material Phosphor Bronze
Plating Sliver Plating Contact Type Disconnection
Application Use Both In Protection Line And Test Line Color White And Grey
Highlight

krone connection module

,

lsa disconnection module
Leave a Message
Product Description

High Density 10 Pair Disconnection Module NT Terminal Block Orbit Universal Type



Description:





The LSA-PLUS NT block is a high–density solution that utilizes the silver plated. Its gas-tight contacts ensure a reliable and long lasting connection. System side contacts and the cross connections on the LSA-PLUS NT block are situated perpendicular to one another, increasing pair density while decreasing the chance of accidental tampering of system side terminations. Both test access and cross–connect contacts are accessible from the front, and the block can be easily released to access system side contacts for new wiring or rewiring.



Utilizes proven reliability of the LSA-PLUS 45º silver plated contacts

Unique perpendicular configuration facilitates, quick and reliable installations

Vertical mounting pitch of 17.5 mm results in21% space savings over Series 2 blocks

Designed for use with ADC KRONE back mount frame; Available for use with ADC KRONE profile rod mount brackets



Mechanical Performance Insertion force : 40~75N
Pull Out Force : F≥25N(axial) F≥7.5N(radial)
IDC Life : 200 times(20-26 AWG Solid wire) minimum
Copper Conductor Diameter: Φ0.4~Φ0.8(mm)
Environment Characteristic Storage Tempreture: 40 to 70°C
Operating Temperature : 10 to 60°C
Relative Humidity: 95%, noncondition
Electrical Performance Insulation resistance: 1000 Mohms minimum
Contact resistance:7 mohms maximum

Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s

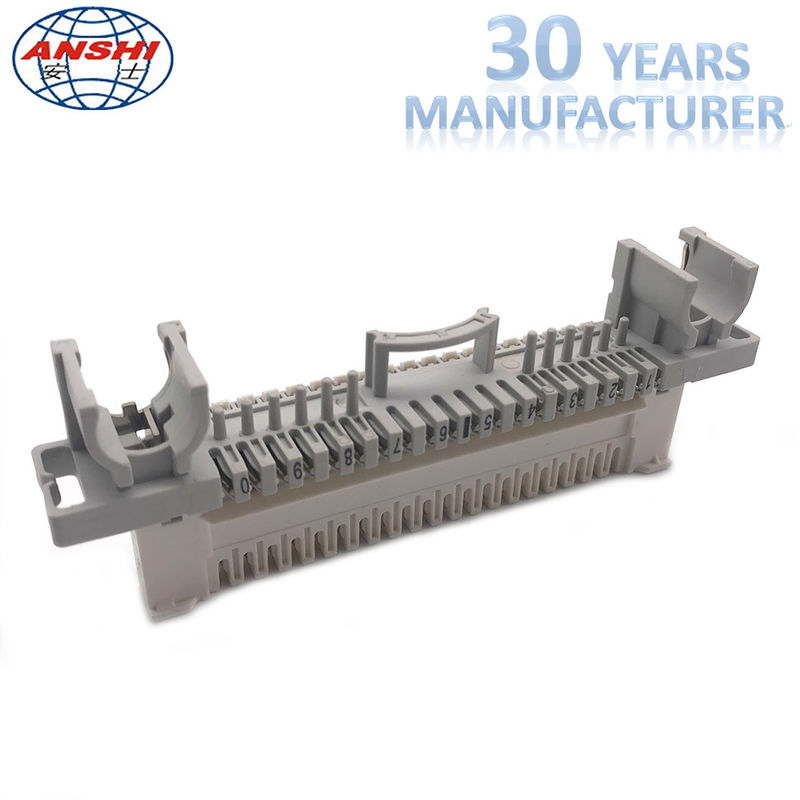

High Density 10 Pair Disconnection Module NT Terminal Block Orbit Universal Type 0
