SC / UPC Fiber Optic Accessories , Distribution Box Fiber Optical Adapter
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Adaptor | Working Wavelength | Working Wavelength |
|---|---|---|---|
| Repeatability | Repeatability | Type | SC/UPC |
| Mode | Singlemode Or Multimode | Application | FTTH System |
| Highlight | fiber optic cable accessories,optical cable accessories |
||
Product Description

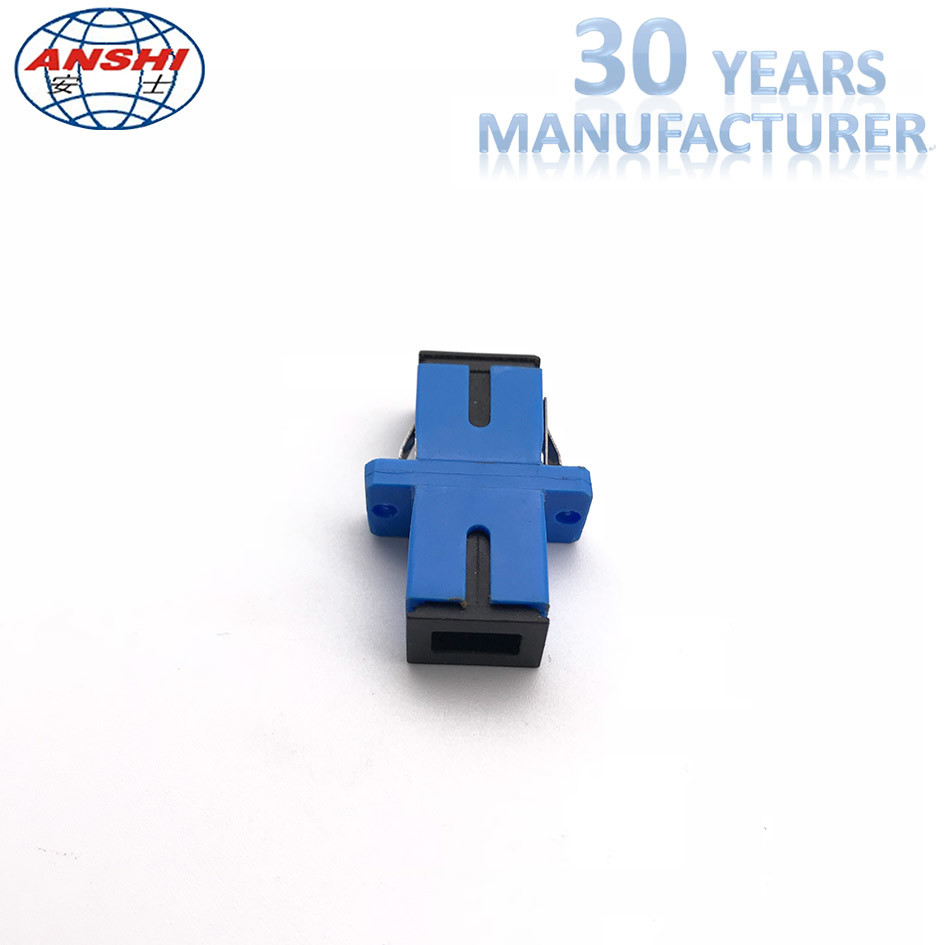

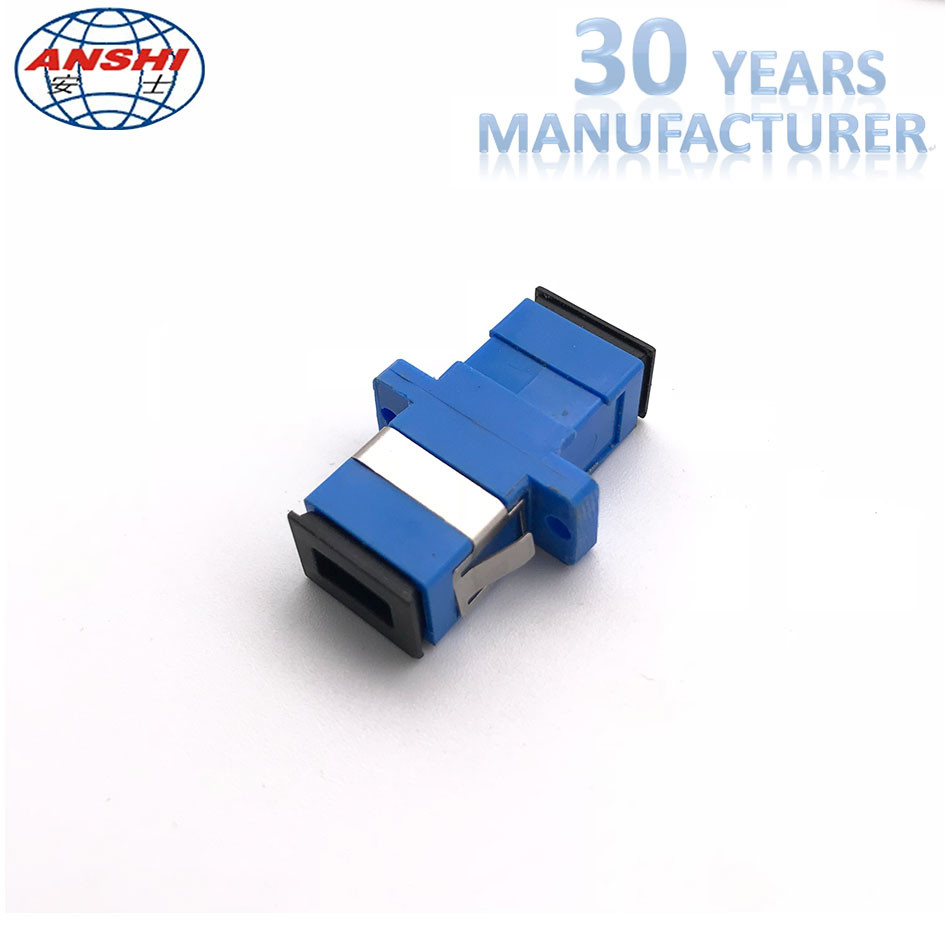

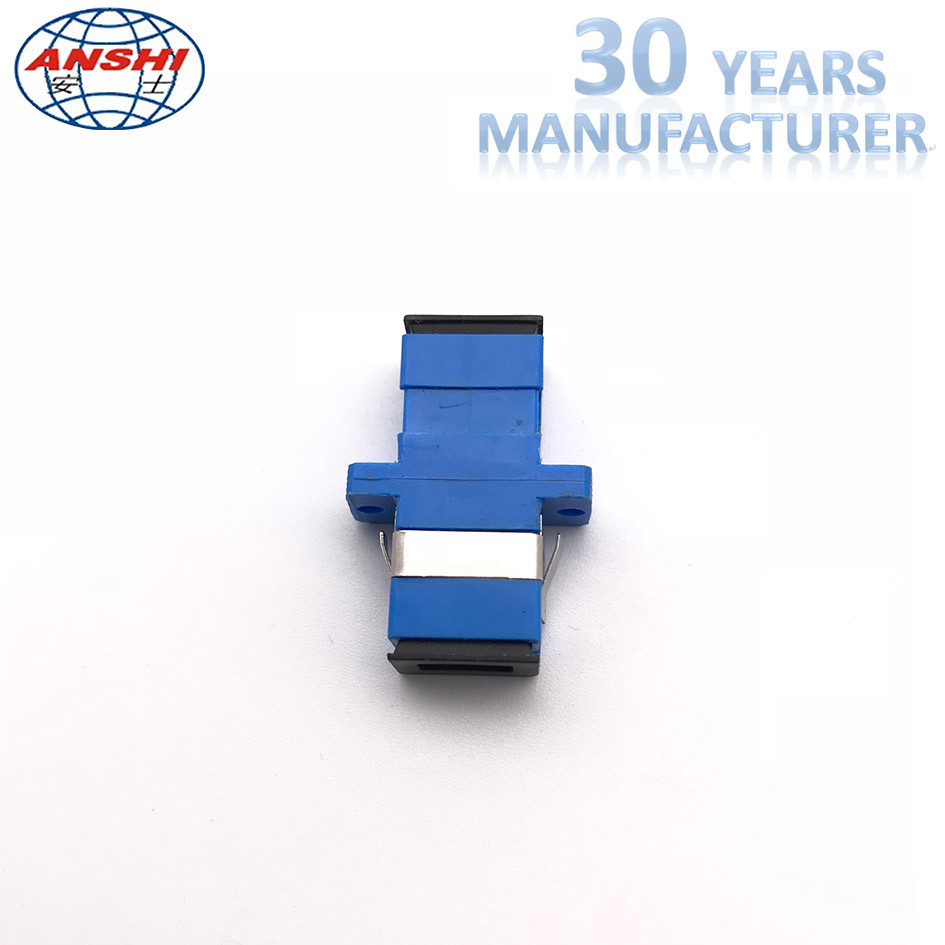

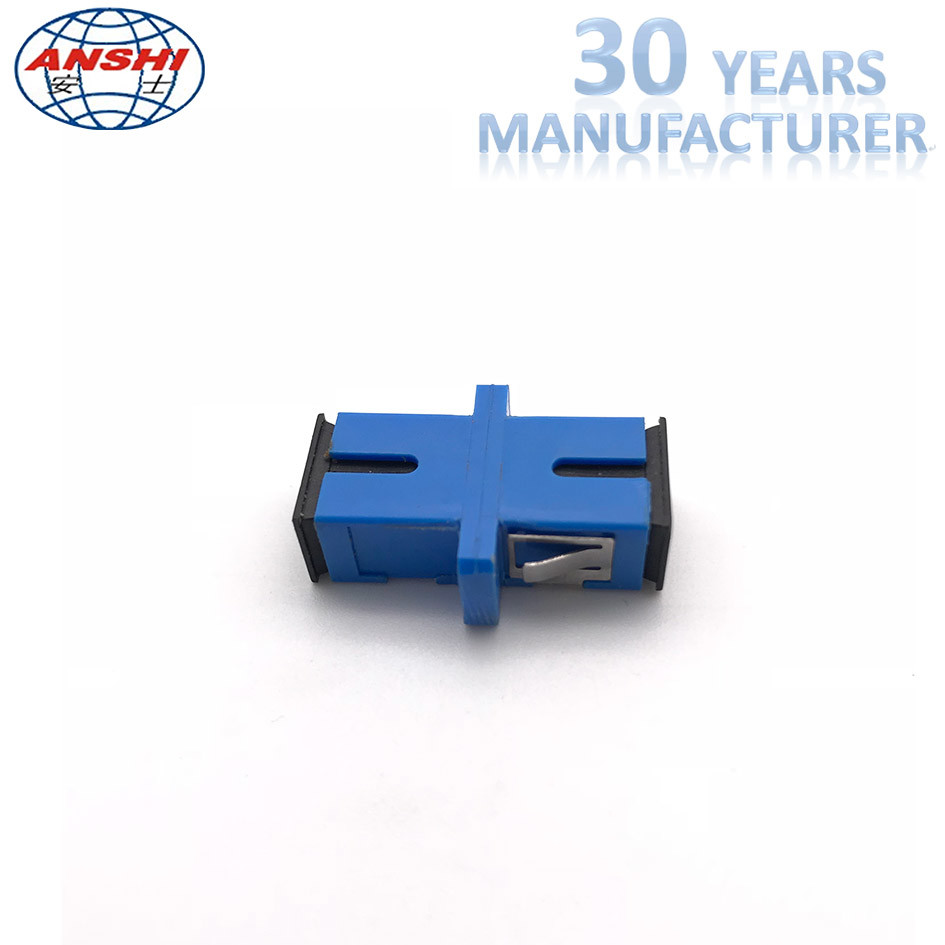

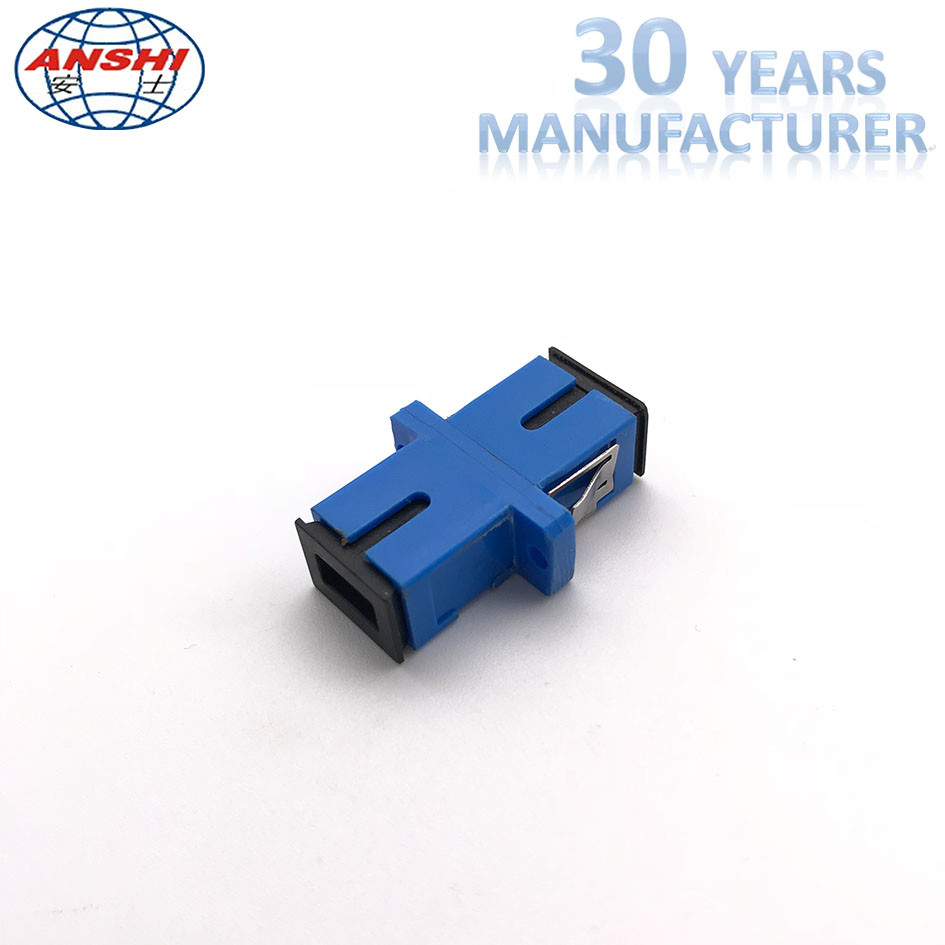

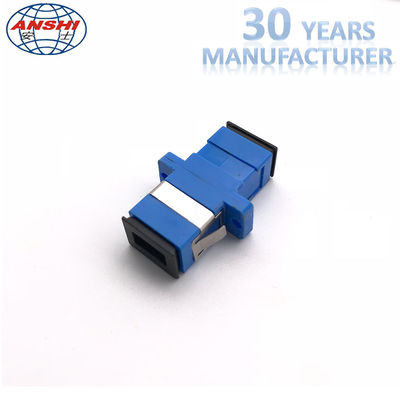

SC / UPC Fiber Optic Accessories , Distribution Box Fiber Optical Adapter
SC adapters are flange type, single mode adapters are with zirconia sleeve while multimode fiber adapters are with bronze sleeve
Features:
Low insertion loss, high return loss Good compatibility High precision of mechanical dimensions High reliability & stability Ceramic or Bronze Sleeve PC, APC, UPC optional Simplex / Duplex
Application:
Local Area Network CATV System Telecommunication Networks Equipment Test
| Sleeve Material: Ceramic or beryllium bronze; |
| Housing Material: Synthetic resin or alloy, with high precisemechanical dimensions, good compatibility; |
| Working Wavelength: 1200~1600nm; |
| Working Condition: -40°C to +75°C; |
| Durability: less than 500 times repeated insert and pull out , insertion loss change≤0.20dB; |
| Repeatability: No more than 0.2dB ; |
| The adapters comply with the standard of NTT/Telcordia/IEC/TIA/EIA. |
|
Mode: SM/APC Green SM/PC Blue MM/PC Beige MM/PC Light Green |
