High Speed, High Quality, Best Service
Place of Origin: | ZHEJIANG, CHINA |
Brand Name: | ANSHI |
Certification: | ISO9001, CNACL, SGS, DAS |
Model Number: | XL-014-8A/C |
Minimum Order Quantity: | 100 pcs |
---|---|
Price: | Can discuss |
Packaging Details: | CARTON:53*24*24CM |
Payment Terms: | D/P, D/A, L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 100000 pcs per week |
Material: | ABS / PBT | Contact: | Brass Or Phosphor Bronze |
---|---|---|---|
Plating: | Nicle Base, Sliver Plate | Specification: | Disconnection Or Connection |
OEM: | YES | Application: | Mount On The Back Mount Frame |
High Light: | lsa disconnection module,krone disconnection module |

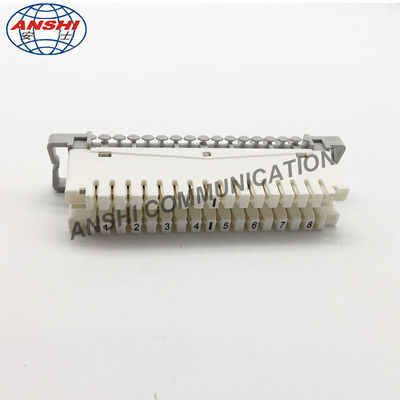

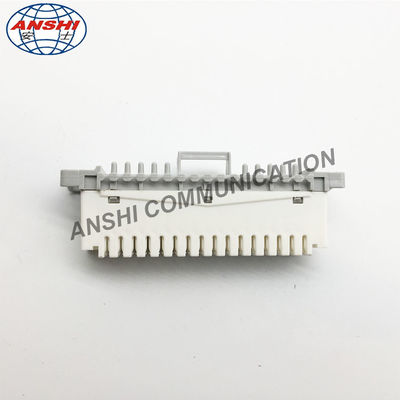

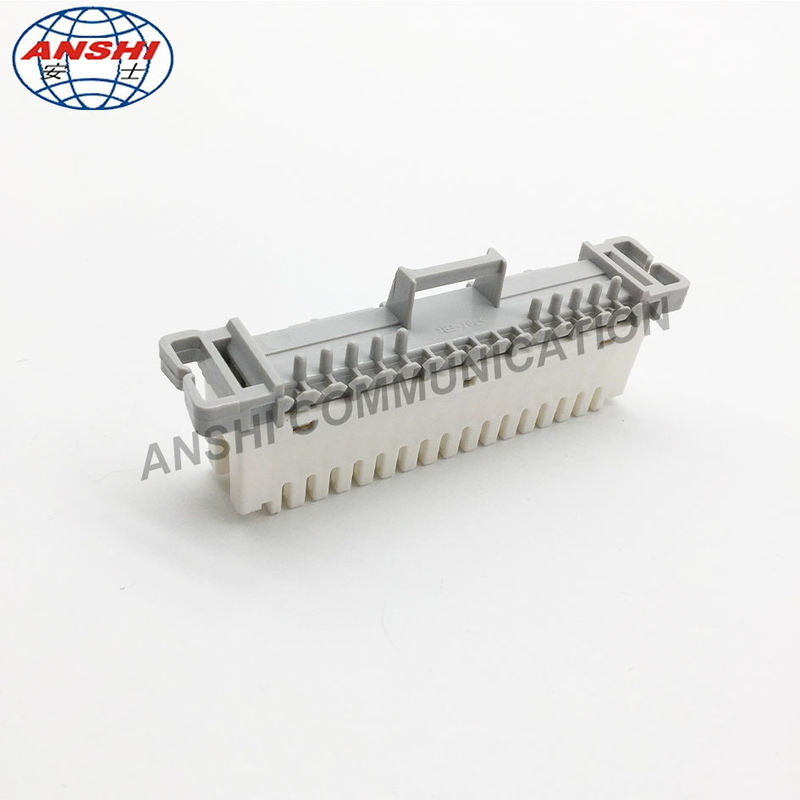

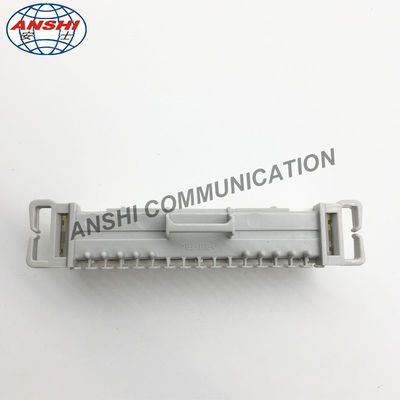

8 pair LSA Disconnection or Connection Module For Krone type 30years experience
Material
Plastic component | ABS or PBT (UL-94V0) |
Contact material | Phosphor bronze or Brass |
Contact plating | Silver plating |
Mechanical Performance | Insertion force : 40~75N |
Pull Out Force : F≥25N(axial) F≥7.5N(radial) | |
IDC Life : 200 times(20-26 AWG Solid wire) minimum | |
Copper Conductor Diameter: Φ0.4~Φ0.8(mm) | |
Environment Characteristic | Storage Tempreture: 40 to 70°C |
Operating Temperature : 10 to 60°C | |
Relative Humidity: 95%, noncondition | |
Electrical Performance | Insulation resistance: 1000 Mohms minimum |
Contact resistance:7 mohms maximum | |
Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s
|
