20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
| Place of Origin | ZHEJIANG, CHINA |
|---|---|
| Brand Name | ANSHI |
| Certification | ISO9001, CNACL, SGS, DAS |
| Model Number | XL-011L |
| Document | 20 ways 10 pairs pcb.pdf |
| Minimum Order Quantity | 100 pcs |
| Price | Negotiable |

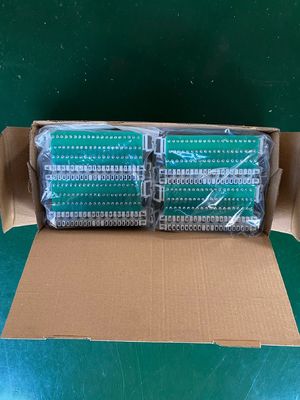

| Packaging Details | CARTON:53*24*24CM |
| Supply Ability | 10000 pcs per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | ABS Or PBT | Color | White/Grey/Green |
|---|---|---|---|
| Contact | Iron, Brass Or Bronze | Type | PCB Type |
| Installation | Back&profile Mount | Application | Cabling |
| Highlight | krone connection module,lsa disconnection module |
||
You can tick the products you need and communicate with us in the message board.
Product Description

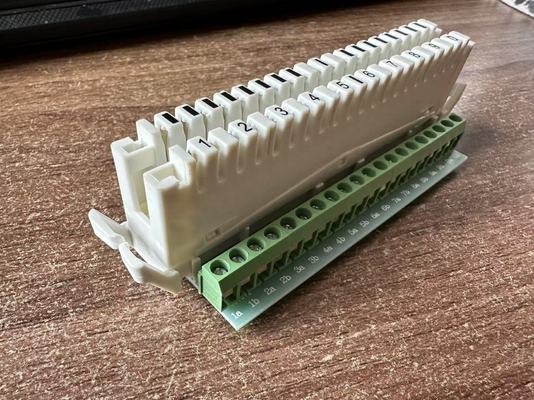

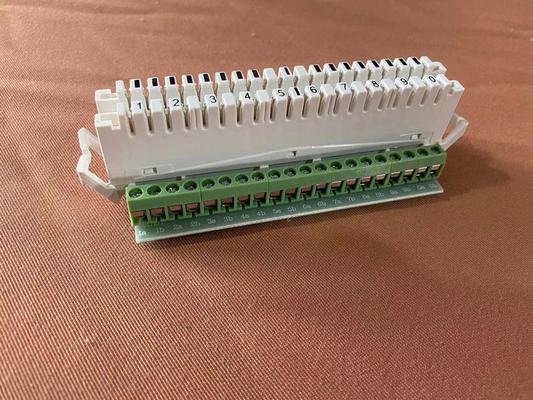

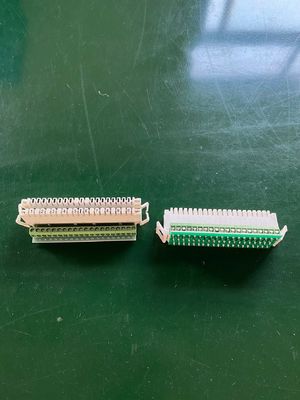

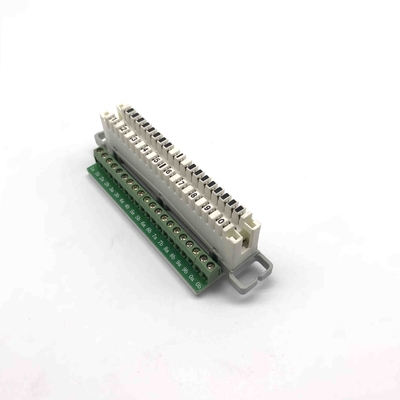

20 Pole Screw Terminal Block with 10 Pairs Krone Type PCB Type Disconnection or Switching Module LSA PLUS Krone
Product Description

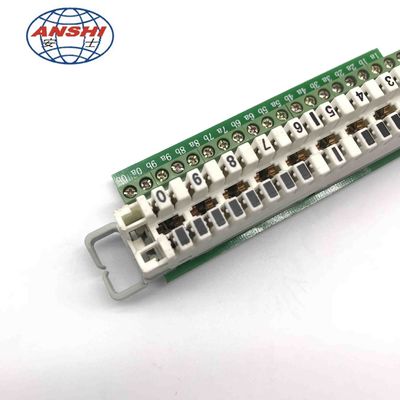

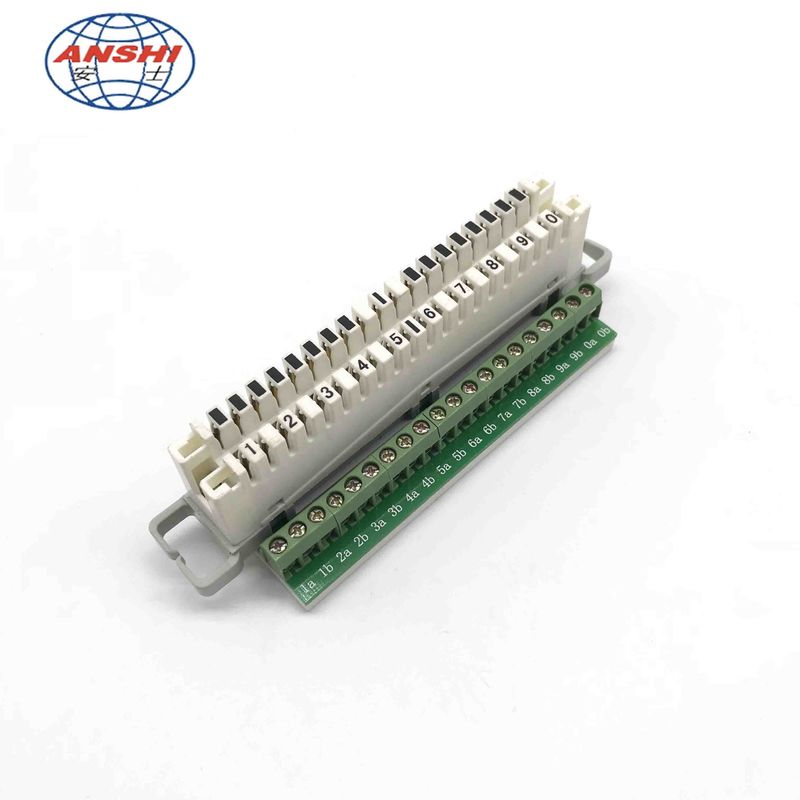

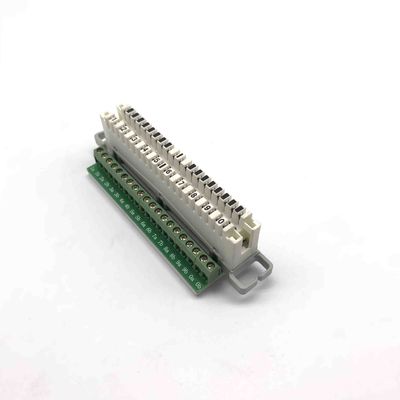

20 pole Krone Type PCB Type Connection Module LSA PLUS Krone Green Broad
PCB Type Specifications
- LSA-PLUS disconnection module 2/10
- Includes additional screw terminals on the jumper side
- 20-pole configuration with 36mm width
- Occupies two module slots in back-mount frame

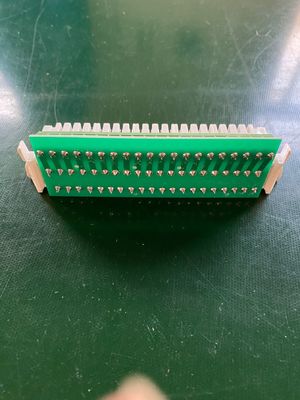

- Features PCB and screw block design
- Internal wire diameter: 0.4mm-0.65mm
- Color: Grey base with white body
Material Composition
- Plastic Parts: PBT-V0 UL94 or ABS
- Contacts Pin: 0.5mm Phosphor bronze with silver-plated
- Silver-plated: 30U or as per client request
- Dimensions: 128mm × 37mm × 36mm
Technical Specifications
| Attribute | Value |
|---|---|
| Connector Type | Telephone/Telecom |
| Number of Ways | 20 |
| Mounting Type | Back Mount Frame |
| Termination Method | IDC |
| Contact Plating | Silver or Gold |
| Contact Material | Phosphor Bronze |
| Housing Material | ABS or PBT |
| Wire Size | 26-20 or 28-20 AWG |
| Colour | White |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -20°C |
| Series | LSA-PLUS |
| Attribute | Value |
|---|---|
| Thread dimensions: | Rigid thread a): Ø 0.4-0.8 mm b) |
| Isolation: Ø 0.7-1.5 mm, PVC and PE | |
| No. of threads per contact: | 2 max. (with identical dimensions) c) |
| Insulation resistance: | ≥ 5 ´ 104 MΩ |
| Test voltage: | ≥ 2kV |
| Surge voltages: | As VDE 0433 |
| Contact resistance: | ＜ 1 mΩ |
| Constant current: | Determined by the thread max. |
| allowed current | |
| Surge current: | Disconnections modules: 5As 5kA 8//20 μs |
| Contact stud bars: 10As 10kA 8//20 μs |
