MTRJ - SC Duplex Multimode Fiber Optic Cable 0.3dB 3.0mm For Cabling System

Place of Origin China
Brand Name ANSHI
Certification ISO9001
Minimum Order Quantity CAN DISCUSS
Price Negotiable
Supply Ability 100000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Fiber Optic Jumper Return Loss ≥50.00dB(PC) ≥65.00dB(APC)
Connector Type SC/FC/LC/ST/MU/MTRJ Length 1m,2m,3m...
Cable Type Simplex/Duplex Fiber Type SM/MM
Tensile Strength ≥10KGS Repeatability ≤0.1
Insertion Loss 0.3dB Fiber Corning

Fiber Optic Jumper Cables


Duplex Fiber Optic Cable

Leave a Message
Product Description

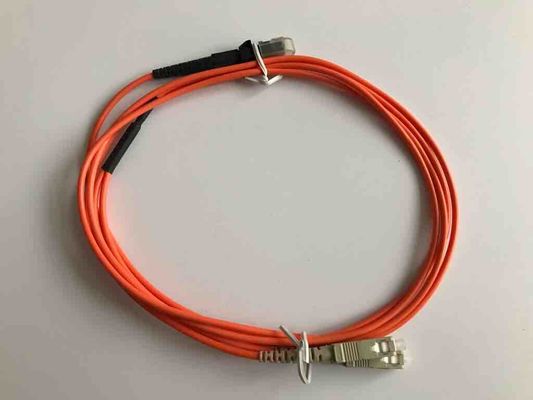

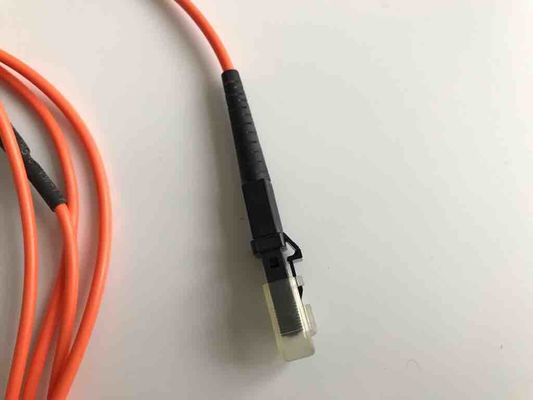

Fiber Optic Patch Cord MTRJ-SC Duplex Fiber Jumper 3.0mm multimode cable




IEC61754-7 Compliant;Telcordia GR-1435-CORE compliant
Push -Pull locking type
Ferrules are available for SM Standard,SM LowLoss
MM Standard,MM Low Loss
Cable are available for Jacket ribbon,Bare ribbon
Round mini Cable
High Return Loss;Low Insertion Loss
High precision guide pins for exact alignment



* Telecom system

* Cabling system

* High Density optical laser

* QSFP devices





Model NO.

LC-ST fiber optic patch cord
Fiber Type

9/125 SMF-28 or equivalent (Singlemode) OS1&OS2 50/125, 62.5/125 (Multimode) OM4,OM3,OM2,OM1 50/125,

10G (Multimode) OM3

Cable Type

Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber


Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss ≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (For Singlemode)

UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeatability ±0.1dB
Operating Temperature -40C to 85C
Geometry Requirement (For Singlemode) Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1
