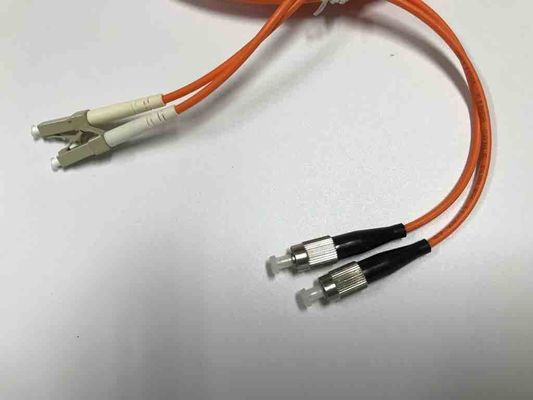

FC / UPC LC / UPC Multimode Duplex Fiber Optic Cable 3.0mm For QSFP Devices

FC / UPC LC / UPC Multimode Duplex Fiber Optic Cable 3.0mm For QSFP Devices

  • FC / UPC LC / UPC Multimode Duplex Fiber Optic Cable 3.0mm For QSFP Devices
  • FC / UPC LC / UPC Multimode Duplex Fiber Optic Cable 3.0mm For QSFP Devices
FC / UPC LC / UPC Multimode Duplex Fiber Optic Cable 3.0mm For QSFP Devices
Product Details:
Place of Origin: China
Brand Name: ANSHI
Certification: ISO9001
Model Number: AS-ODF--FC/LC-DUPC
Payment & Shipping Terms:
Minimum Order Quantity: CAN DISCUSS
Price: Negotiable
Supply Ability: 100000 pcs per month
Contact Now
All Products
Fiber Distribution Box (81)
FTTH Distribution Box (27)
Cable Distribution Box (51)
LSA Plus Module (85)
MDF Main Distribution Frame (38)
Subscriber Terminal Block (30)
Rack Mount Patch Panel (62)
RJ45 Keystone Jack (64)
Horizontal Cable Manager (17)
Network Cable Faceplate (47)
110 Terminal Block (16)
ODF Optical Distribution Frame (24)
Optical Fiber Patch Cord (24)
Fiber Optic Splice Closure (11)
IDC Terminal Block (33)
Network Punch Down Tool (30)
Fiber Optic Accessories (79)
Detailed Product Description
Name: Fiber Optic Jumper Return Loss: ≥50.00dB(PC) ≥65.00dB(APC)
Connector Type: SC/FC/LC/ST/MU/MTRJ Length: 1m,2m,3m...
Cable Type: Simplex/Duplex Fiber Type: SM/MM
Tensile Strength: ≥10KGS Repeatability: ≤0.1
Insertion Loss: 0.3dB Fiber: Corning
High Light:

Fiber Optic Jumper Cables

,

Duplex Fiber Optic Cable

Fiber Optic Patch Cord FC/UPC LC/UPC Duplex Fiber Jumper 3.0mm multimode cable



Features



IEC61754-7 Compliant;Telcordia GR-1435-CORE compliant
Push -Pull locking type
Ferrules are available for SM Standard,SM LowLoss
MM Standard,MM Low Loss
Cable are available for Jacket ribbon,Bare ribbon
Round mini Cable
High Return Loss;Low Insertion Loss
High precision guide pins for exact alignment



Application

* Telecom system

* Cabling system

* High Density optical laser

* QSFP devices









Model NO.

 LC-ST fiber optic patch cord
Style LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male
Fiber Type

9/125 SMF-28 or equivalent (Singlemode) OS1&OS2 50/125, 62.5/125 (Multimode) OM4,OM3,OM2,OM1 50/125,

10G (Multimode) OM3
Cable Type

Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber

PVC or LSZH
Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss ≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (For Singlemode)

UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750
Repeatability ±0.1dB
Operating Temperature -40C to 85C
Geometry Requirement (For Singlemode) Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1





Tag:

Duplex Fiber Optic Cable,

Fiber Optic Jumper Cables,

Single Mode Fiber Optic Cable
