RJ11 / RJ45 3 Port Faceplate , White SC Fiber Optic Faceplate For Indoor

Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification SGS, DAS, ISO9001
Model Number AS-ODF-MBH-SC-C
Minimum Order Quantity can discuss
Price Negotiable
Supply Ability 5000 Pieces per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product FTTH Face Plate Material ABS
Color White Dimension (L) 86 X (W) 86 X (D) 27mm
Certification CE,ROHS,ISO 9001 Application Networking
Highlight

Waterproof Terminal Box

,

Outdoor Distribution Box

Leave a Message
Product Description

Fiber Optic FTTH SC Faceplate 3 ports fiber optic indoor faceplate, RJ11, RJ45



Key Specifications/Special Features:

  • Features:
    • Reasonable inner space design
    • Suitable bending radius
    • Protect optical fiber
    • Realize FTTD (fiber to the desktop) system
    • Dimensions: (L) 86 x (W) 86 x (D) 27mm
  • Applications:
    • A user end product to realize optical fiber to desktop solution
    • It can be used in home or working area to accomplish double-core fiber access and port output
    • Used in the end termination of residential buildings and villas, to fix and splice with pigtails
  • Performance index:
    • Small size, light weight, pleasing in appearance
    • Wall mounted with mechanical protection function
    • Max fiber capacity 4 to 16 fibers, 4 to 16 adapter output
    • Coordinating with FC strip-type optical adapter, it generates more options in term of fiber interfaces for users, SC, LC and SC/FC are all available
    • Hinge and convenient press-pull button lock design greatly reduced installation strength
    • Very thin and matches with other A86 panels in homes and also meet the open or concealed cabling for optical cables

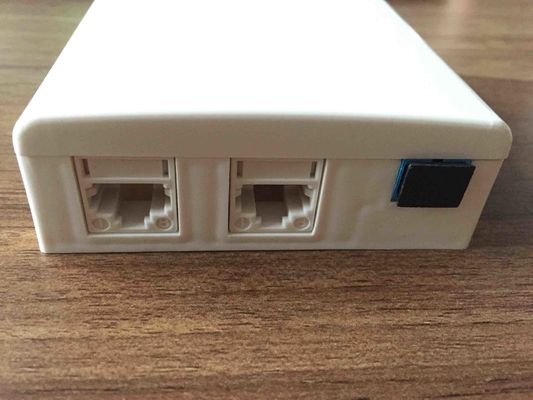

RJ11 / RJ45 3 Port Faceplate , White SC Fiber Optic Faceplate For Indoor 0

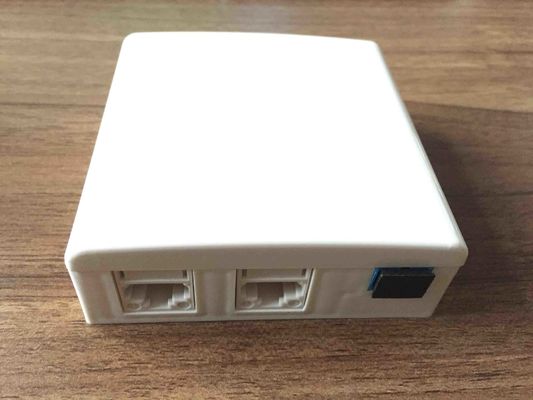

RJ11 / RJ45 3 Port Faceplate , White SC Fiber Optic Faceplate For Indoor 1

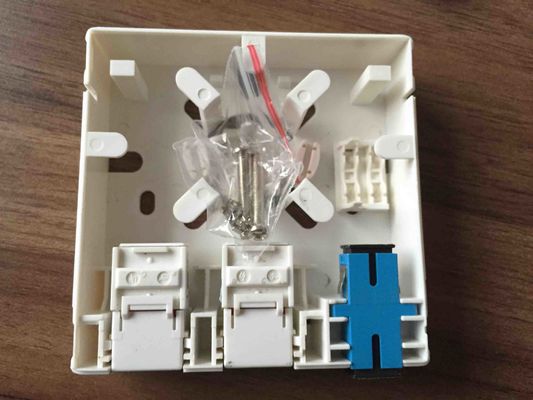

RJ11 / RJ45 3 Port Faceplate , White SC Fiber Optic Faceplate For Indoor 2



Product Configuration:

  • Configuration 1: Body, Cover
  • Configuration 2: Body, Cover, Plastic Fastener
  • Configuration 3: Body, Cover, Plastic Fastener, Platen, Polts, Clamp
  • Configuration 4: Body, Cover, Plastic Fastener, Platen, Polts, Dual Pressure.

Implementing Measure and Meet requirement:



  • Adhibition 1: when the single core covered optical cable through the wall, and switch with single output, use the configuration 1 and configuration 2.
  • Adhibition 2: when the double cores covered optical cable through the wall, and switch with double output, use the configuration 2.
  • Adhibition 3: when the Outdoor optical cable through the wall, and switch with single output, use the configuration 3 and configuration 4.
  • Adhibition 4: when the Outdoor optical cable through the wall, and switch with multi mode pigtails, use the configuration 3 and configuration 4.
  • Adhibition 5 when the Outdoor optical cable through the wall, and switch with multi mode pigtails, and switch with multicovered optical cables, use the configuration 3 and configuration 4.
