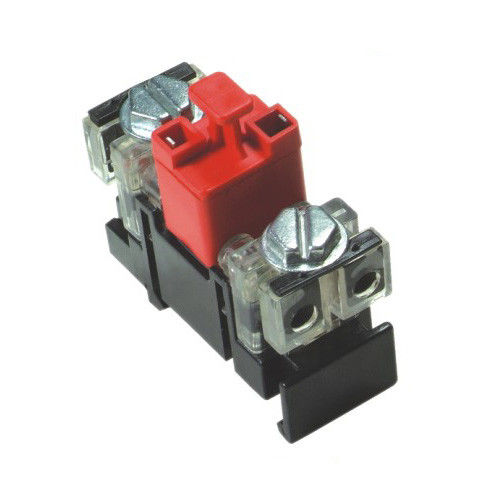

PC Material Durable Subscriber Terminal Block With Protection Modular Design

PC Material Durable Subscriber Terminal Block With Protection Modular Design

  • PC Material Durable Subscriber Terminal Block With Protection Modular Design
PC Material Durable Subscriber Terminal Block With Protection Modular Design
Product Details:
Place of Origin: China
Brand Name: ANSHI
Certification: ROHS, ISO9001
Model Number: AS-STB-P-2
Payment & Shipping Terms:
Minimum Order Quantity: 200
Price: Negotiable
Supply Ability: 5000pcs/week
Contact Now
All Products
Fiber Distribution Box (81)
FTTH Distribution Box (27)
Cable Distribution Box (51)
LSA Plus Module (85)
MDF Main Distribution Frame (38)
Subscriber Terminal Block (30)
Rack Mount Patch Panel (62)
RJ45 Keystone Jack (64)
Horizontal Cable Manager (17)
Network Cable Faceplate (47)
110 Terminal Block (16)
ODF Optical Distribution Frame (24)
Optical Fiber Patch Cord (24)
Fiber Optic Splice Closure (11)
IDC Terminal Block (33)
Network Punch Down Tool (30)
Fiber Optic Accessories (79)
Detailed Product Description
Name: VX Module Environment Condition: 5-40 Degree Celsius ，Relative Humidity <85% (+30 Degree Celsius)，Atmospheric Pressure, 70-106KPa
Plate: Silver 20-40uinch Pulling-out Force: Not Less Than 25N
Standard: GB/T 5169.7-1985 Material: Pc
Install: DIN Rack Protective: GDT
Application: Telecommunication Life Circle: ≥200 Times
High Light:

telecom distribution box

,

stb module

Subscriber Terminal Block STB module with protection easy for testing against over voltage

Range of the section: diameter 0,4… 1,2 mm
Diameter on the isolation: it is maximal 5 mm
The current-response characteristics: 20 A(10 A on each conductor) during not less than 10 min, without the deformation of the module
Insulation resistance
“Dry” atmosphere: > 10 12 Ohm
“Moist” atmosphere (standard ASTM Of d618, procedure F): > 10 12 Om
Salt fog: (standard ASTM Of b117) > 10 10 Ohm
Immersion beside the water: (15 days before 3% solution Of naCI) > 10 10 0m
The contact resistance
R of material + R of the contact cross connection + by R of the contact connection of the wires < 10 m
Increase in the contact resistance
After climatic testings: <2,5 m
After 50 connections - turning offs: <2,5 m
Dielectric strength: >3 kV of direct current during 1 minute


Mechanical characteristics

Screw of the connection of the pair of the distributive wire: Special alloy Of zamac, [passivirovannyy], with the paint and varnish coat
Housing of the unit of the connection Transparent polycarbonate
the distributive wire: Housing: Polycarbonate, glass-reinforced, resistance to fire “VO”
Fitted contacts: Tinplated phosphor bronze
Contacts of the grounding: Alloy Cu - Zn - Ni - Ag
Contacts of the connection: Tinplated solid bronze
Sealing material before the lower part: The epoxy resin
Sealing material before the upper cable part: Silicon compound
Cover of the pair of the distributive wire: Polycarbonate
Housing of the insertable module: Polycarbonate, glass-reinforced, resistance to fire “VO”
Sealing material of the insertable module: Gel
The ring gasket: Elastomer EPDM
Spring: the stainless steel
Cable laying is the distributive wire: Thermoplastic rubber


1 pair drop wire connection module with protection is equipped with 3 pole 230V gas tube arrester with fail-safe protection.
It is a copper pair connector, specifically designed to fit onto 35mm DIN rails. It is designed to connect 2 copper pairs and has common features such as:
Insulation Displacement Connection
Reliable connections
Flame retardant performance
Modular design and installations
Water and humidity proof
Durable, High Impact, Ultra Violet resistance
Silicon gel filled drop wire STB module
