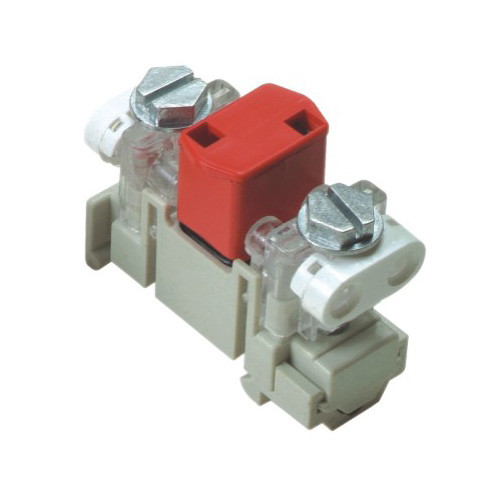

DIN Rack Install Subscriber Terminal Block VX module With / Without Protection

DIN Rack Install Subscriber Terminal Block VX module With / Without Protection

  • DIN Rack Install Subscriber Terminal Block VX module With / Without Protection
DIN Rack Install Subscriber Terminal Block VX module With / Without Protection
Product Details:
Place of Origin: China
Brand Name: ANSHI
Certification: ROHS, ISO9001
Model Number: AS-STB-P-1
Payment & Shipping Terms:
Minimum Order Quantity: 200
Price: Negotiable
Supply Ability: 5000pcs/week
Contact Now
All Products
Fiber Distribution Box (79)
FTTH Distribution Box (26)
Cable Distribution Box (51)
LSA Plus Module (85)
MDF Main Distribution Frame (38)
Subscriber Terminal Block (30)
Rack Mount Patch Panel (61)
RJ45 Keystone Jack (64)
Horizontal Cable Manager (17)
Network Cable Faceplate (47)
110 Terminal Block (16)
ODF Optical Distribution Frame (24)
Optical Fiber Patch Cord (24)
Fiber Optic Splice Closure (11)
IDC Terminal Block (33)
Network Punch Down Tool (30)
Fiber Optic Accessories (77)
Detailed Product Description
Name: VX Module Environment Condition: 5-40 Degree Celsius ，Relative Humidity <85% (+30 Degree Celsius)，Atmospheric Pressure, 70-106KPa
Plate: Silver 20-40uinch Pulling-out Force: Not Less Than 25N
Standard: GB/T 5169.7-1985 Material: Pc
Install: DIN Rack Protective: GDT
High Light:

vx module

,

telecom distribution box

Subscriber Terminal Block STB module with / without protection against over voltage


Applications and feature:

- STB is a high reliability connection module, designed to withstand all existing climates.

- Watertight by design, it provides the best service for the following applications:

- Interface boxes UG/Aerial/Networks

- Distribution points

-Customer termination devices

- Fits on DIN 35 rails

- Very compact, overall dimensions allow to replace existing won protected solution by a high reliability solution.

- No special tool required, only by a standard screw driver.

Range of the section: diameter 0,4… 1,2 mm
Diameter on the isolation: it is maximal 5 mm
The current-response characteristics: 20 A(10 A on each conductor) during not less than 10 min, without the deformation of the module
Insulation resistance
“Dry” atmosphere: > 10 12 Ohm
“Moist” atmosphere (standard ASTM Of d618, procedure F): > 10 12 Om
Salt fog: (standard ASTM Of b117) > 10 10 Ohm
Immersion beside the water: (15 days before 3% solution Of naCI) > 10 10 0m
The contact resistance
R of material + R of the contact cross connection + by R of the contact connection of the wires < 10 m
Increase in the contact resistance
After climatic testings: <2,5 m
After 50 connections - turning offs: <2,5 m
Dielectric strength: >3 kV of direct current during 1 minute



Mechanical characteristics

Screw of the connection of the pair of the distributive wire: Special alloy Of zamac, [passivirovannyy], with the paint and varnish coat
Housing of the unit of the connection Transparent polycarbonate
the distributive wire: Housing: Polycarbonate, glass-reinforced, resistance to fire “VO”
Fitted contacts: Tinplated phosphor bronze
Contacts of the grounding: Alloy Cu - Zn - Ni - Ag
Contacts of the connection: Tinplated solid bronze
Sealing material before the lower part: The epoxy resin
Sealing material before the upper cable part: Silicon compound
Cover of the pair of the distributive wire: Polycarbonate
Housing of the insertable module: Polycarbonate, glass-reinforced, resistance to fire “VO”
Sealing material of the insertable module: Gel
The ring gasket: Elastomer EPDM
Spring: the stainless steel
Cable laying is the distributive wire: Thermoplastic rubber



Tag:

stb module,

telecom distribution box,

vx module
