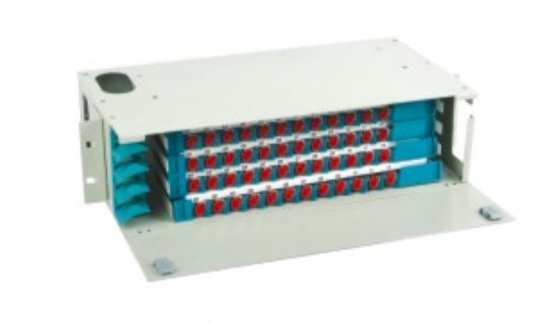

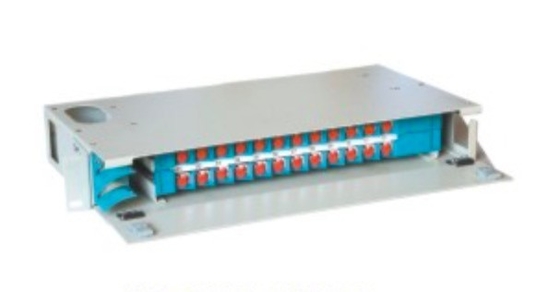

48 Core Rack Mount Fiber Optic Patch Panel 19" Standard Frame Drawer Type

48 Core Rack Mount Fiber Optic Patch Panel 19" Standard Frame Drawer Type

  • 48 Core Rack Mount Fiber Optic Patch Panel 19" Standard Frame Drawer Type
  • 48 Core Rack Mount Fiber Optic Patch Panel 19" Standard Frame Drawer Type
48 Core Rack Mount Fiber Optic Patch Panel 19" Standard Frame Drawer Type
Product Details:
Place of Origin: China
Brand Name: ANSHI
Certification: ROHS, ISO9001
Model Number: AS-ODF-DYX
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Supply Ability: 10000PCS/WEEK
Contact Now
Detailed Product Description
Name: Fiber Optic Distribution Frame Material: Iron
Type: Drawer Type Adapter: FC, SC, ST, LC (Can Be Customized)
Capacity: 12 To 72 Core Install: 19" Rack
Color: Customizable Higth: According To The Cores
High Light:

Fiber Optic Distribution Panel

,

Fiber Optic Terminal Box

Optical Distribution Frames ODF fiber patch panel , Fiber Optic Terminal Box rack mounted



Features:


1)  19" standard frame is used
2)  Designed by full modulization:
a)  Unit box has such functions as optical fiber fusion, tray storing and
distribution
b)  Each fusion module can be singly taken out to meet the demands for
operating frame
3)  Optical cable, pigtail fiber and patch cords can be clearly monitored
4)  Convenient operation can still be guaranteed even though the capacity
has reached its maximum
5)  Such adaptors as FC, SC can be installed by the fusion module
6)  Working temperature: -5 – 40°C
7)  Relative humidity: ≤85% (30°C)
8)  Air pressure: 70 - 106kPa
9)  Standard working wavelength: 850nm, 1,310nm, 1,550nm
10)  Connector loss: ≤0.5dB
11)  Back wave loss:
a) PC: ≥40dB
b) UPC: ≥50dB
c) APC: ≥60dB
12)  Resistance to voltage between high-voltage protection ground and
frame: ≥3KV (DC) / 1min no puncture or arc
13)  Insulation resistance between high-voltage protection ground and
frame: ≥1,000m&Omega / 500V (DC)
14)  Life: 1,000 times





Properties:

  • Suitable for the protective connection between cables and pigtails
  • Suitable for the connection between optical cables and optical communication device
  • unique structure, easy installation, for indoor use

Classification:



Rack Mount, Wall Mount. Suitable for FC adapter,ST adapter,SC adapter, LC adapter etc.

  • capacity: 12,24,32,48,64,72,96 splices
  • 19 inches; 1U for 12 splices, 24 splices,2U installation for 32 splices, 48 splices, and 3U for 64, 72 & 96 splices.
  • Adapters installed: FC adapter ,ST adapter,SC adapter, LC adapter etc
  • Suitable for ribbon and bunchy fiber cable

Parameter :



Environmental temperature: -25 - 55°C
Relative humidity: <85%(when the temperature is below 30°C)
Atmosphere pressure: 70~106Kpa
Insulating resistance: >2×104 MΩ/500VDC
Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
