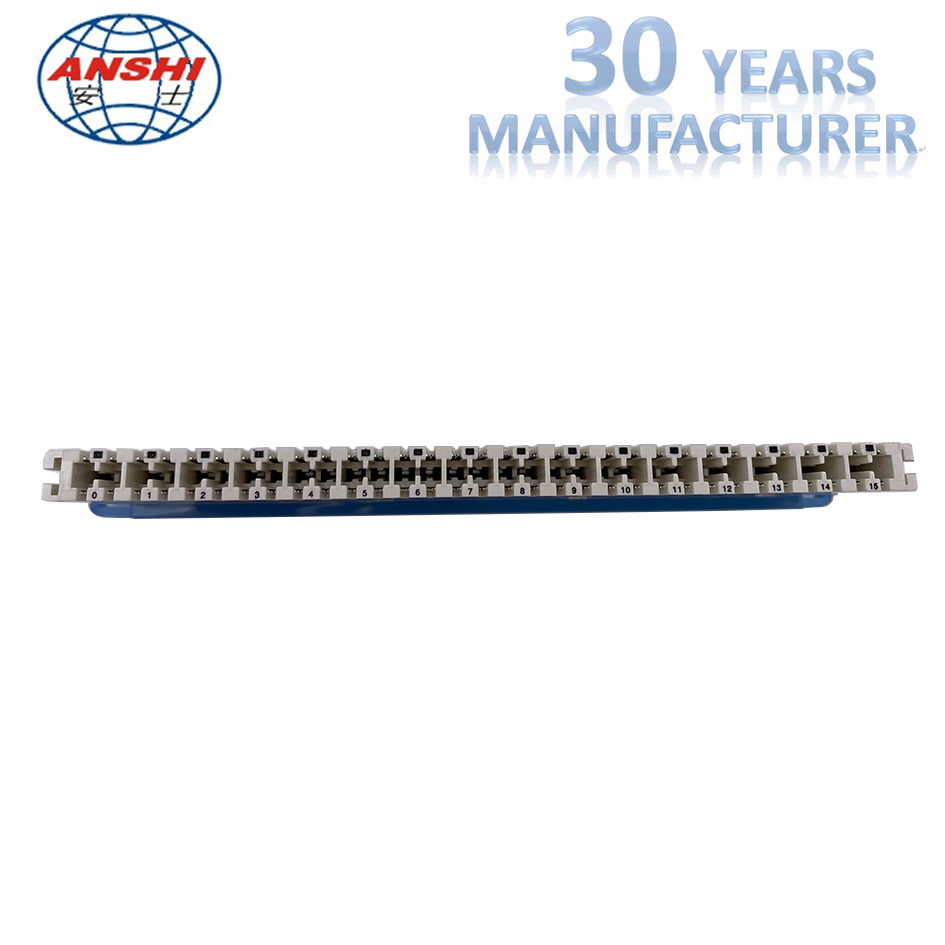

JPX658-STO-236XD Series 16-pair Exchange Side Terminal Block

Place of Origin China
Brand Name ANSHI
Certification ROSH, ISO9001
Model Number AS-MDF-HW-16C
Minimum Order Quantity 500
Price Negotiable
Supply Ability 10000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Exchange Side Terminal Block Capacity 16 Pair
Application Copper Telecom Housing Material Polycarbonate
Contact Pin Phosphor Bronze Color White&Blue Or Blue&Blue Or Customized
Highlight

intermediate distribution frame

,

optical distribution frame

Leave a Message
Product Description

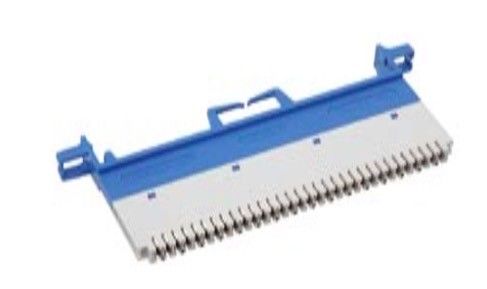

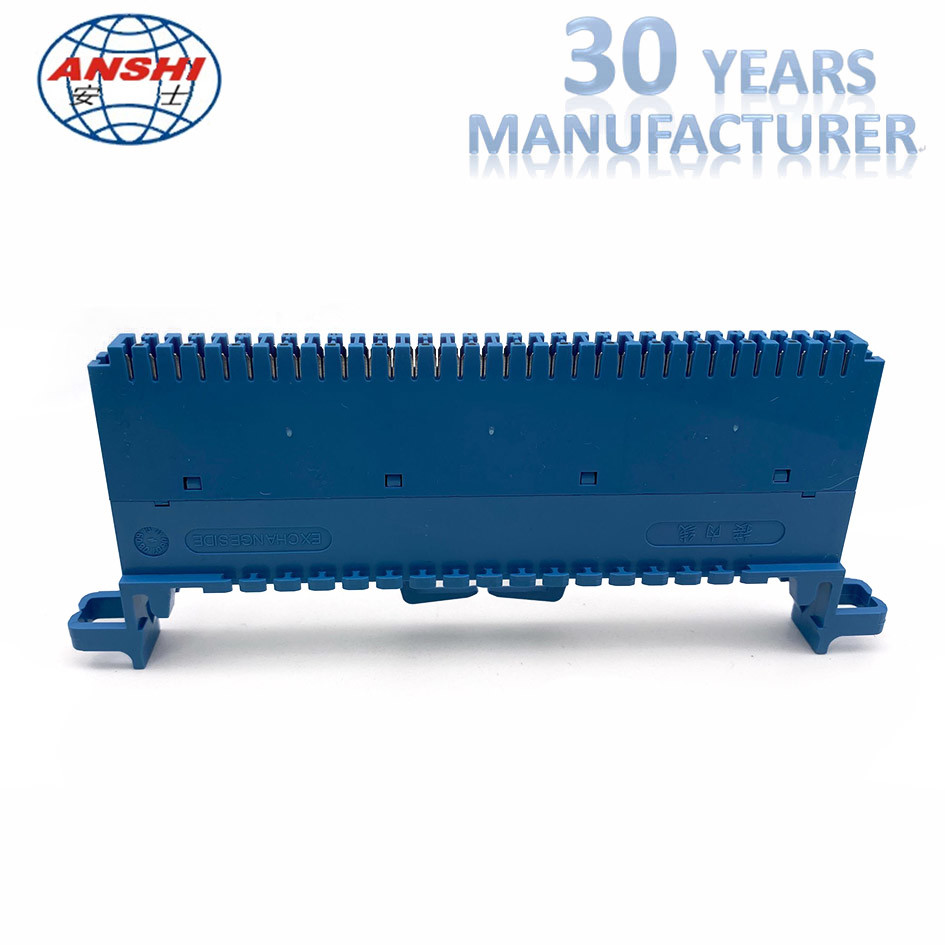

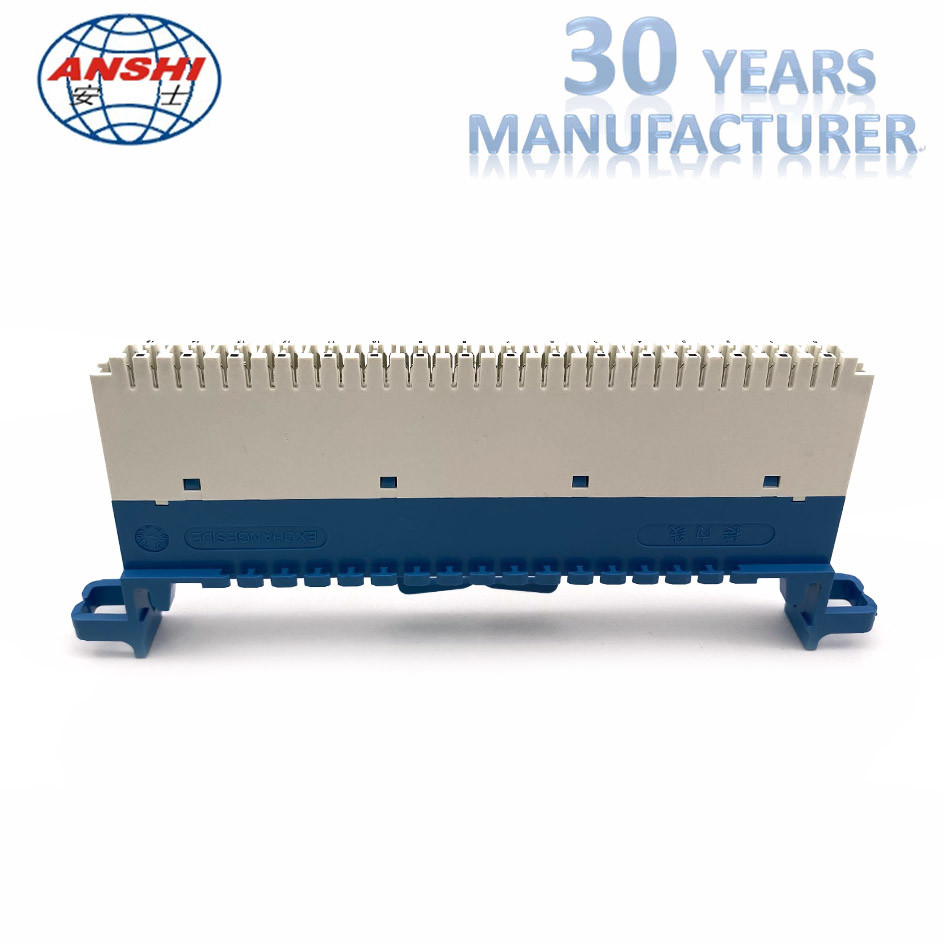

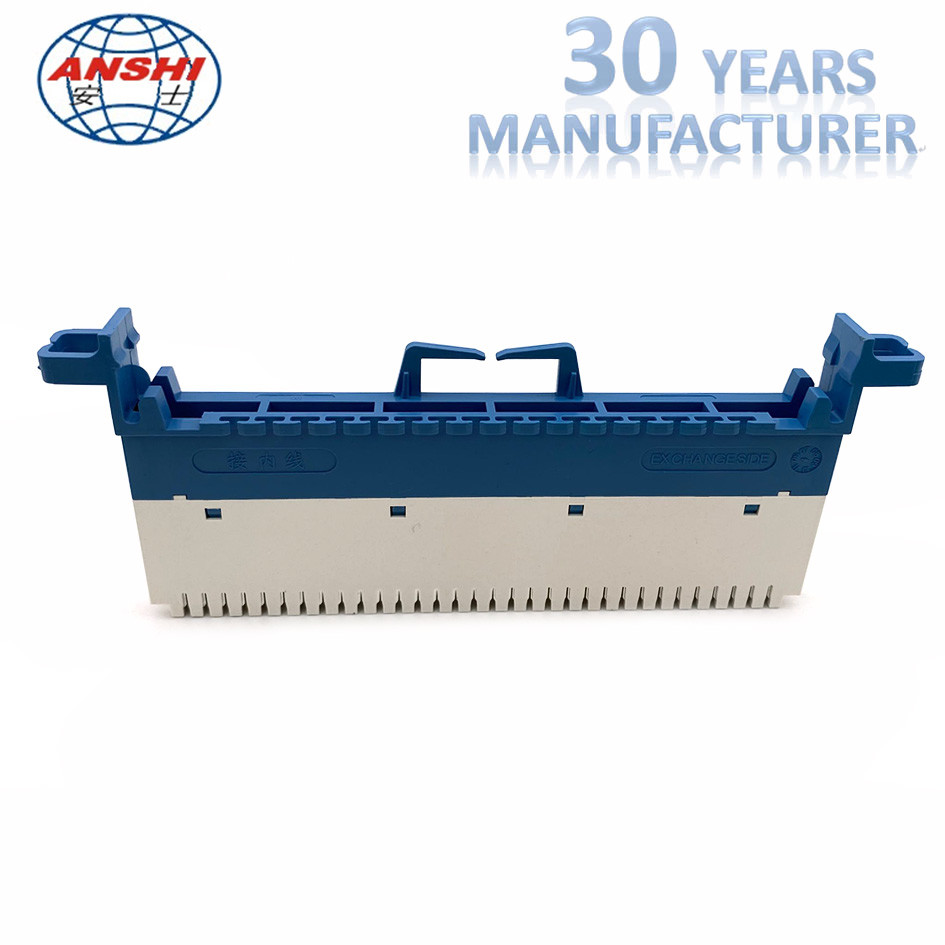

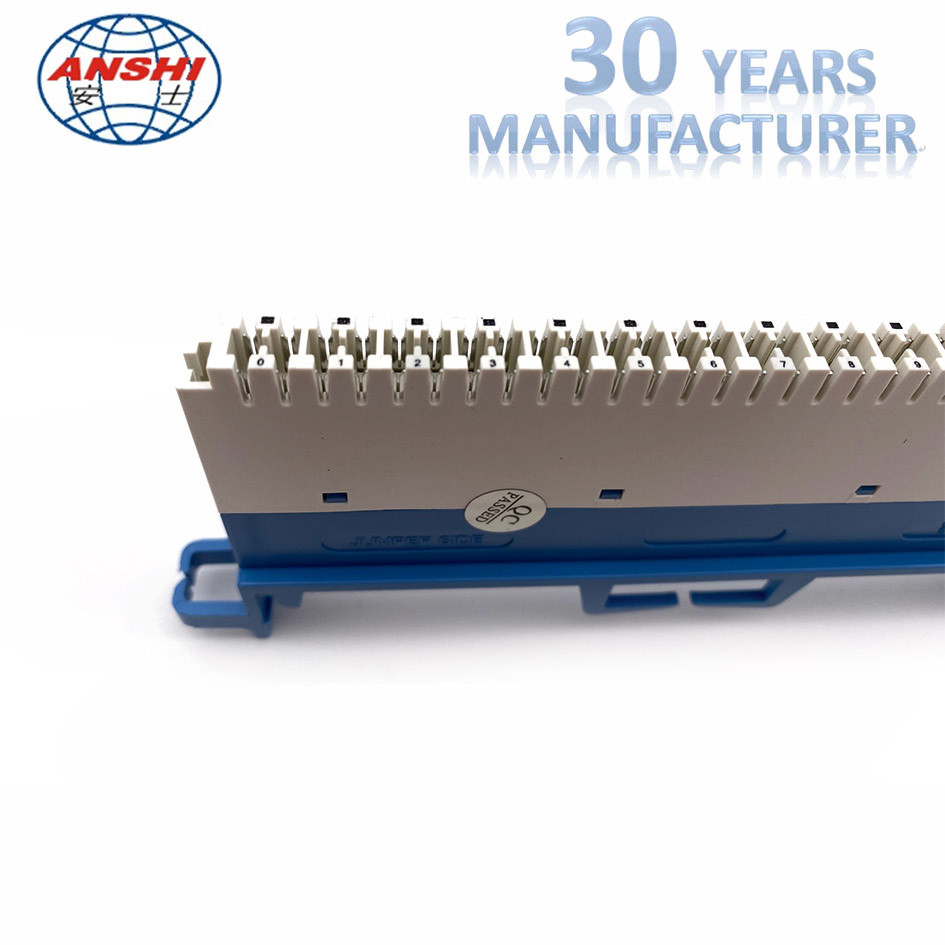

JPX658-STO-236XD Series 16-pair Exchange Side Terminal Block



· 16 pair HUAWEI exchange side strip, JPX658-STO-236.

· Providing a range of over voltage, over current four sound and light alarm system.

· Can clearly distinguish visual alarm circuit to prevent external over-voltage and over-current signal to the telephone exchange damage.

· Using for the internal and external wiring to the switch and access line to the user.

· The indexes of high-current protection, fault protection and alarm performance are checked and approved with credible quality.

· High temperature and humidity resistance has good circulatory flow, electric strength and insulation performance.

· Excellent design of heat transfer and fire resistance can ensure the safety of product itself.

· Insulation resistance: ≥ 20000M Ohm (100V DC).

· Contact resistance: ≤ 3M Ohm.

· Resistance to voltage: ≥ 1000V/min without breakdown or arcover-current.

· Material: ABS/PC, reed using tin bronze, and the outer layer of tin/silver/gold plating.



Application and features
Clamp-mounted on installation strip;
Applicable to cable termination and jumper-connection;
Testing and loop disconnection of lines can be implemented on it.




Product 16 pair HUAWEI exchange side strip, JPX658-STO-236
Application prevent external over-voltage and over-current signal to the telephone exchange damage
Available the internal and external wiring to the switch and access line to the user
Insulation resistance ≥ 20000M Ohm (100V DC)
Contact resistance ≤ 3M Ohm
Resistance to voltage ≥ 1000V/min without breakdown or arcover-current
Material ABS/PC, reed using tin bronze, and the outer layer of tin/silver/gold plating
