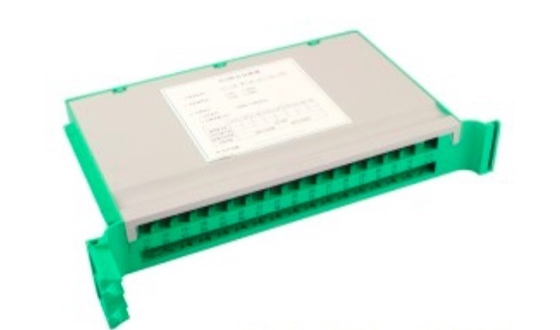

1 X 32 Fiber PLC Splitter 32 Port Fiber Optic Splice Tray With Adapters

Name: 1 X 32 Fiber PLC Splitter 32 Port Fiber Optic Splice Tray With Adapters
Brand: ANSHI
SKU: AS-ODF-2X32FLP
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (137 reviews)

Product Details:

Place of Origin:	China
Brand Name:	ANSHI
Certification:	ISO9001,SGS
Model Number:	AS-ODF-2X32FLP

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Supply Ability:	10000/week

Contact Now

All Products

Fiber Distribution Box (79)

FTTH Distribution Box (26)

Cable Distribution Box (51)

LSA Plus Module (85)

MDF Main Distribution Frame (38)

Subscriber Terminal Block (30)

Rack Mount Patch Panel (61)

RJ45 Keystone Jack (64)

Horizontal Cable Manager (17)

Network Cable Faceplate (47)

110 Terminal Block (16)

ODF Optical Distribution Frame (24)

Optical Fiber Patch Cord (24)

Fiber Optic Splice Closure (11)

IDC Terminal Block (33)

Network Punch Down Tool (30)

Fiber Optic Accessories (77)

Detailed Product Description

Name:	1*32 PLC Splitter	Material:	ABS
Fiber Core:	32 Core	Color:	Green
Application:	FTTH, FTTx	Use:	Install In The Unit Box
High Light:	Fiber Optic Distribution Panel , Fiber Optic Distribution Unit

1x32 fiber PLC optical splitter in 32 port splice tray with adapters Optical Distribution Frames ODF

Product Description

Features

¨ Splitting ratio as customized

¨ Light weight, high strength, dustproof

¨ FC,SC,LC adapter type avaliable

¨ Network set up convenient and easy

¨ Can install in the Module type ODF

Applications

¨ Optoelectronics communication system

¨ CATV

¨ LAN

Ordering Information

1. Supply 1U and 2U PLC Splitter with tray

2. 1x16 1x32 are selectable

3. Length of cable can be different

4. Different connectors can be selected

Performance Specifications:

Type		1x2		1×4		1×8		1×16	1×32		1×64		2x2	2×4	2×8	2×16		2×32		2×64
Operating wavelength(nm)		1260-1650
Insertion loss (dB)	Typical	3.6	6.8		10.0		13.0		16.5	20.5		4.0		7.3	10.5	13.5	17.0		20.5
	Maximum	3.8	7.2		10.7		13.9		17.2	22.0		4.2		7.6	10.8	14.0	17.5		22.0
Uniformity (dB)	Typical	0.4	0.5		0.6		1.0		1.0	2.5		0.6		0.8	1.0	1.5	2.0		2.0
	Maximum	0.6	0.8		1.0		1.4		1.6	2.5		0.8		1.0	1.5	2.0	2.5		2.5
Polarization Dependent Loss (dB)	Typical	0.1	0.1		0.15		0.2		0.2	0.2		0.1		0.1	0.1	0.2	0.2		0.2
	Maximum	0.2	0.3		0.3		0.3		0.3	0.3		0.2		0.2	0.3	0.4	0.4		0.4
Wavelength dependent loss (dB)	Typical	0.1	0.1		0.15		0.3		0.3	0.1		0.1		0.1	0.1	0.1	0.2		0.2
	Maximum	0.2	0.3		0.3		0.5		0.5	0.2		0.2		0.2	0.3	0.5	0.5		0.5
Return loss (dB)	Minimum	UPC:50 APC:55
Directivity (dB)	Minimum	55
Operating temperature (°C)		-20 to 70
Storage temperature (°C)		-40 to 85
Optical fiber type		SMF-28e Or customer required
Optical fiber length (m)		1M or customize
Remarks:
1 . Measured at room temperature and excludes connector loss. 2 . For devices with connectors insertion loss will be 0.3 dB higher.
