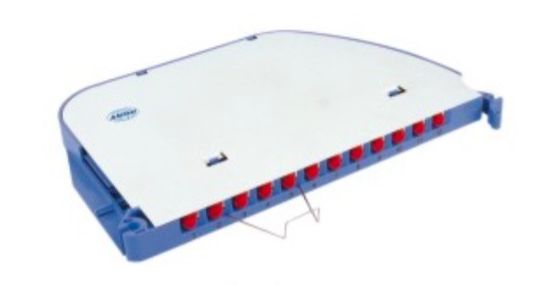

Blue 12 Cores ODF Optical Distribution Frame Fiber Optic Patch Panel For FTTH

12 cores fiber optic splice tray Optical Distribution Frames ODF FTTH fiber optic patch panel

APPLICATION:

The product can be used on the terminal of the optical cables, different types and structures, the diameter of which are within 20mm tray.

FEATURE:

1. All property indexes are in accordance with national YD/T814-1996 standard

2. The body make use of cold rolling steel, and the surface use the technique of dim plastic. strong adhesive force, artistic and durable.

3. Distinctive design of 2 cable entrance

4. Cable entrance are sealed with oil resistance NBR to increase the flexibility. user can choose to prick the entrance.

5. Overlapping fiber splice tray and separate insulation earthing unit make the disposition of the cores ,expanding the capacity and cable-earthen flexible, convenient and safe.

6. SC/ST/FC/LC ports is available.

SPECIFICATIONS:

1. External size 480*300*1U, 2U, 3U

2. Winding radius ≥40mm

3. Fiber capacity from 12 cores to 96 cores

4. installing: rack mounted

5. Working temperature -25°C~+45°C

6. Atmosphere pressure 70~106Kpa

7. Insulated Resistance 2×10MΩ/500V(DC)
