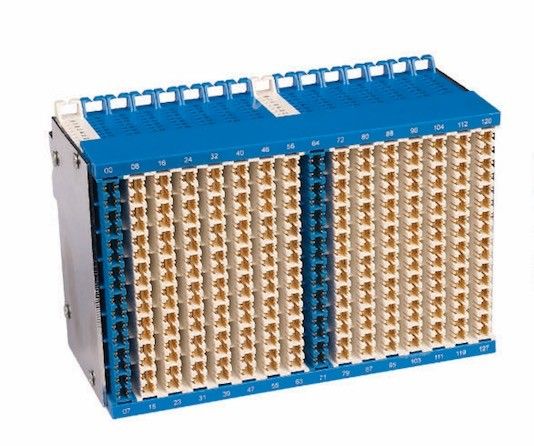

128 Pairs Main Distribution Frame MDF Terminal Block For Inside Terminal

Place of Origin China
Brand Name ANSHI
Certification ROSH, ISO9001
Model Number AS-MDF-XHW-C
Minimum Order Quantity 50
Price Negotiable
Supply Ability 1000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Test Connection Terminal Block Printed Silver
Capacity 128 Pair Use With Protection Block (AS-MDF-XHW-P)
Used For Inside Termainal Protect No
Material ABS+Phosphor Bronze Install Special Rack

digital distribution frame


optical distribution frame

Leave a Message
Product Description

128 pairs main distribution frame(MDF) terminal block inside strip terminal



Main Distribution Frame constitute by the frame body, connection block, test module, alarm systems, test equipment, protection unit and so on, MDF is use to connection with the switch and the user cable, patch cord, over current, over voltage protection and alarm test function, the implementation of YD/T694-2004 standard products.


1. All aluminum alloy frame, rigid, elegant appearance, a variety of cable connecting all with Built-in card access methods, safe and reliable.
2. There are many dimensions, structure for the use of protection unit and connection block to meet the new, update, modification, maintenance needs.
3. With four-grade alarm, can use access control, security and other system monitoring the implementation of centralized control or centralized alarm remote interfaces.
4. Contact reed plated with gold or bright tin, flame retardant engineering plastic used. Has a good over-voltage protection and over-current failure to protect.
5. The frame has perfect grounding system.

Technical parameters:

1. Work conditions:
(1)  Working temperature: -5 ~ +40 (degree) (2) Relative humidity: < 85% (30 degrees)
(3)  Atmospheric pressure: 70 ~ 106 (kpa)
(4)  Storage temperature: -25 ~ - +55 (degrees)
2. Performance parameters:
(1)  Insulation Resistance ≥ 1000MΩ
(2)  high-voltage protection> 3000V (DC) / mm without breakdown, no arc.
(3)  Contact Resistance ≤ 7mΩ between reed wire and terminal into the connection between the contact resistance ≤ 3mΩ
(4)  Pull strength: ≥ 25N
