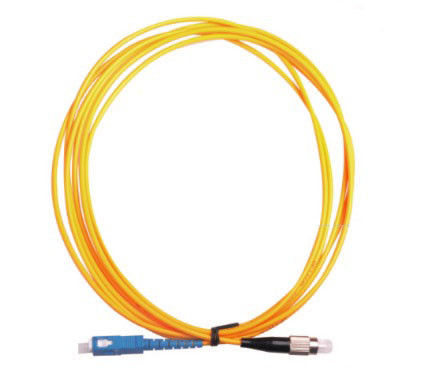

FC - SC Optical Fiber Patch Cord Single Core Single Mode Fiber Optic Cable

Product Details:

Place of Origin:	China
Brand Name:	ANSHI
Certification:	ISO9001
Model Number:	AS-ODF--SC/SC-S002M

Payment & Shipping Terms:

Price:	Negotiable

Contact Now

All Products

Fiber Distribution Box (81)

FTTH Distribution Box (27)

Cable Distribution Box (51)

LSA Plus Module (85)

MDF Main Distribution Frame (38)

Subscriber Terminal Block (30)

Rack Mount Patch Panel (62)

RJ45 Keystone Jack (64)

Horizontal Cable Manager (17)

Network Cable Faceplate (47)

110 Terminal Block (16)

ODF Optical Distribution Frame (24)

Optical Fiber Patch Cord (24)

Fiber Optic Splice Closure (11)

IDC Terminal Block (33)

Network Punch Down Tool (30)

Fiber Optic Accessories (79)

Detailed Product Description

Name:	Single Mode Fiber Patch Cable	Return Loss:	≥50.00dB(PC) ≥65.00dB(APC)
Connector Type:	SC/FC/LC/ST/MU/MTRJ	Length:	1m,2m,3m...
Cable Type:	Simplex/Duplex	Fiber Type:	SM/MM
Tensile Strength:	≥10KGS	Repeatability:	≤0.1
Insertion Loss:	0.3dB	Fiber:	Corning
High Light:	Fiber Optic Jumper Cables , Single Mode Fiber Optic Cable

single core single mode FC-SC fiber optic patch cord / optical jumper

Features

1. Low insertion loss and back reflection loss

2. Good echangeability

3. Good Durability

4. High temperature stability.

5. Standard: Telcordia GR-326-CORE

Model NO.	LC-LC fiber optic patch cord
Style	LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male
Fiber Type	9/125 SMF-28 or equivalent (Singlemode) OS1&OS2 50/125, 62.5/125 (Multimode) OM4,OM3,OM2,OM1 50/125, 10G (Multimode) OM3
Cable Type	Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (For Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB
Operating Temperature	-40C to 85C
Geometry Requirement (For Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1
