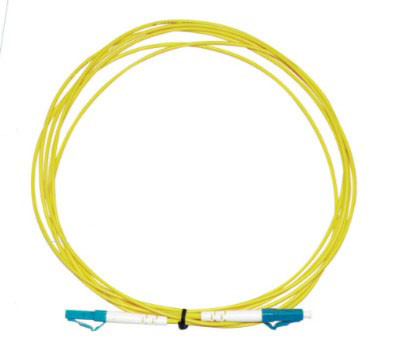

LC - LC Optical Fiber Patch Cord Simplex / Duplex 2M 3M For Cabling System

Product Details:

Place of Origin:	China
Brand Name:	ANSHI
Certification:	ISO9001
Model Number:	AS-ODF--SC/SC-S002M

Payment & Shipping Terms:

Price:	Negotiable

Contact Now

All Products

Fiber Distribution Box (81)

FTTH Distribution Box (27)

Cable Distribution Box (51)

LSA Plus Module (85)

MDF Main Distribution Frame (38)

Subscriber Terminal Block (30)

Rack Mount Patch Panel (62)

RJ45 Keystone Jack (64)

Horizontal Cable Manager (17)

Network Cable Faceplate (47)

110 Terminal Block (16)

ODF Optical Distribution Frame (24)

Optical Fiber Patch Cord (24)

Fiber Optic Splice Closure (11)

IDC Terminal Block (33)

Network Punch Down Tool (30)

Fiber Optic Accessories (79)

Detailed Product Description

Name:	Fiber Optic Jump Cable	Return Loss:	≥50.00dB(PC) ≥65.00dB(APC)
Connector Type:	SC/FC/LC/ST/MU/MTRJ	Length:	1m,2m,3m...
Cable Type:	Simplex/Duplex	Fiber Type:	SM/MM
Tensile Strength:	≥10KGS	Repeatability:	≤0.1
Insertion Loss:	0.3dB	Fiber:	Corning
High Light:	Fiber Optic Jumper Cables , Duplex Fiber Optic Cable

LC-LC fiber optic patch cord SM / MM 2M , 3M, Can be customized

Product Description

CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications

Model NO.	LC-LC fiber optic patch cord
Style	LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male
Fiber Type	9/125 SMF-28 or equivalent (Singlemode) OS1&OS2 50/125, 62.5/125 (Multimode) OM4,OM3,OM2,OM1 50/125, 10G (Multimode) OM3
Cable Type	Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (For Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB
Operating Temperature	-40C to 85C
Geometry Requirement (For Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1
