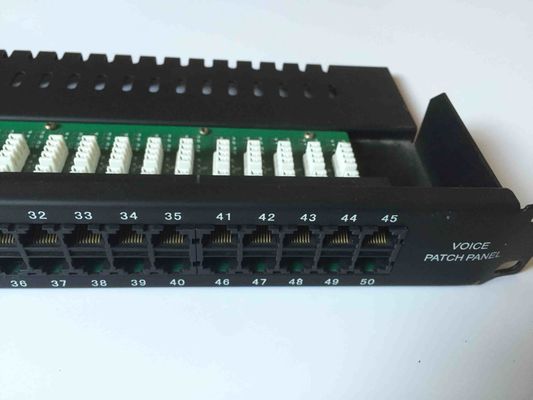

25 / 50 Port Voice Patch Panel 6P4C 110 IDC / Krone IDC With CAT 3 Modules

Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification SGS, DAS, ISO9001
Model Number AS-PL-V25/50A
Minimum Order Quantity 300 pcs, Can negotiation
Price Negotiable
Supply Ability 5000 Pieces Per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Cold Roll Steel Color Black
Category RJ45-RJ21 Type 110 IDC/ Krone IDC
Port 25 Or 50 Port
Highlight

unshielded patch panel

,

1u 24 port patch panel

Leave a Message
Product Description

25/50 Port Voice Patch Panel (6P4C) 110-IDC/Krone-IDC use with Voice CAT 3 modules, Color White



All Panels Comply with the EIA/TIA standard for Category 3 and are avaliable in 25 port density.



Features & Benefits:

  • Space saving high density 1U
  • Meets or exceeds the requirements proposed by TIA/EIA 568 B 2, ISO/IEC 11801 Category 3
  • Black electrostatic powder-coated corrosion-resistant steel
  • 25 port Voice Patch Panel
  • Sturdy aluminium plate around Jacks
  • Termination accepts 22, 23, 24 and 26 AWG (0.64-0.4) solid wires
  • Easy wiring installation, fit for 110 punch-down tools
  • Phosphor Bronze, 6-50 micro inches gold plated

Mechanical Characteristics:



Insertion Life

750 cycles minimum
IDC Life 200 times (22-26 AWG solid wire) minimum
Plug/Jack Contact Force 100g minimum using FCC-approved plug
Insulation Resistance 100Mohms minmum
Contact Resistance 7Mohms Maximum
Dielectricity Intensity AC 1000Vrms, 50Hz or 60Hz in 60s
Plating Sliver/Gold
Plating Thickness

1.25um, 5um/3u'', 6u'', 15u'', 30u'', 50u''

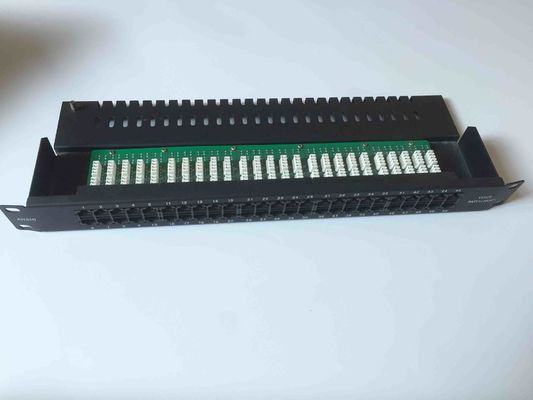

25 / 50 Port Voice Patch Panel 6P4C 110 IDC / Krone IDC With CAT 3 Modules 0

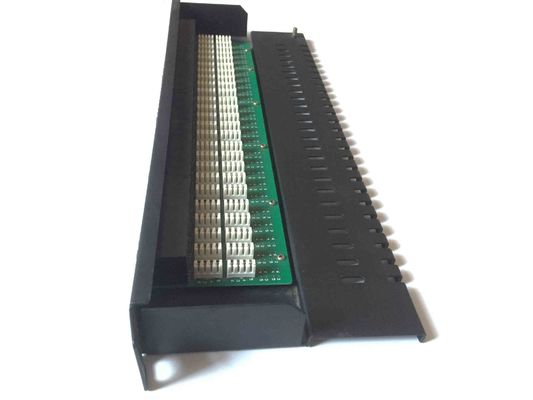

25 / 50 Port Voice Patch Panel 6P4C 110 IDC / Krone IDC With CAT 3 Modules 1



Other Related Products:

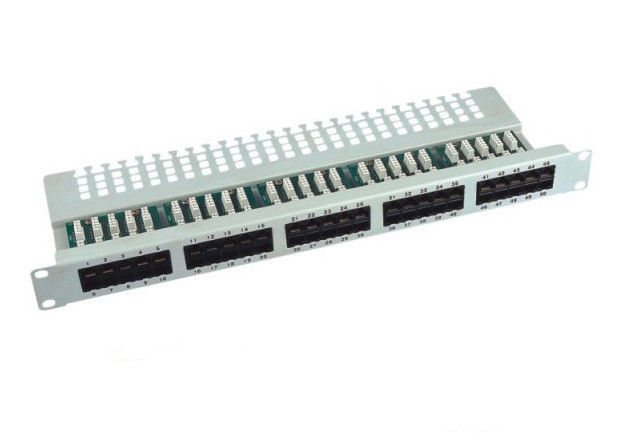

25 / 50 Port Voice Patch Panel 6P4C 110 IDC / Krone IDC With CAT 3 Modules 2
