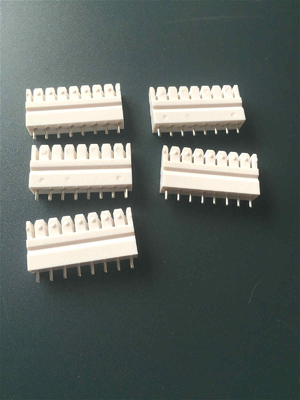

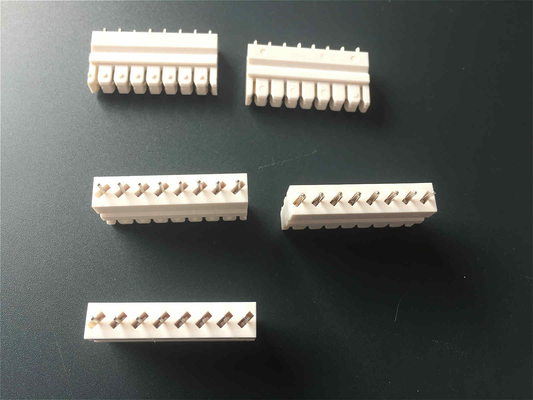

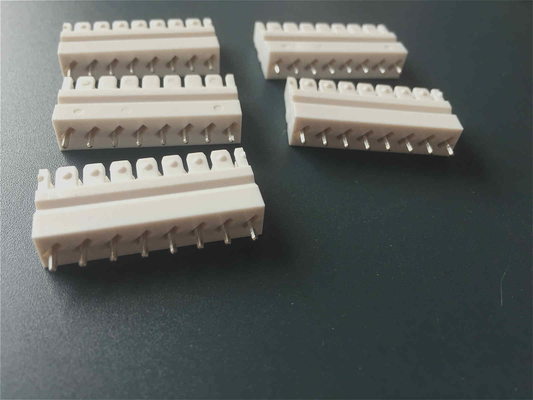

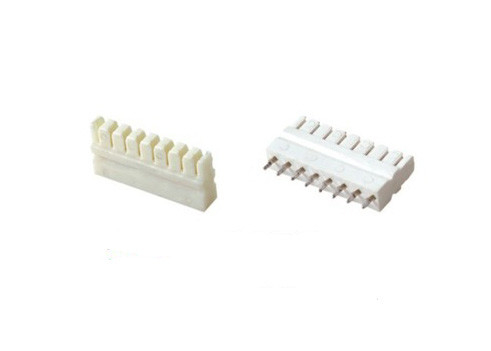

Krone Style PCB - IDC Terminal Block 45 Degree 3.81mm 8 Pin IDC Connection Module

110 Style PCB-IDC terminal block, 3.81mm, 3 pin/4 pin Krone IDC, connection module​

Features:

Key Specifications/Special Features:

• Environment condition: 5-40 degree Celsius ,Relative humidity <85% (+30 degree Celsius), Atmospheric pressure: 70-106KPa ；
• Pulling-out force: tin bronze and silver plating (20-40uinch), pulling-out force not less than 25N ；
• The performance of anti-burn: anti-burn PC ,Combustibility achieved GB/T 5169.7-1985 standard ；
• Insulated resistance: under standard atmospheric pressure, Insulated resistance no less than 1,000M ohm between the two disjunct connections ；
• Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition ；
• Intermediate resistance: no more than 3m ohm under standard examination condition ；
• Dielectric strength: according to industry standard ；
• Specification: 1 pairs；
• Life: durability 200 cycles
