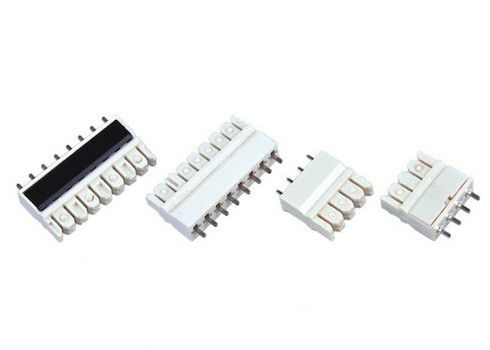

3.81mm PCB - IDC 110 IDC Connector , 1 Pairs110 Style Krone Terminal Block

Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification ISO9001, SGS
Model Number XL-029C
Minimum Order Quantity 10000Piece/Pieces
Price Negotiable
Supply Ability USD $0.44-0.60

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type 110 IDC Capacity 4 Pin, 8 Pin,
Color Ivory FOB Ningbo Or Shanghai
Diameter 3.81mm Application Telecommunication

krone terminal block


ur2 Connector connector

Leave a Message
Product Description

110 Style PCB-IDC terminal block, 3.81mm, 3 pin/4 pin Krone IDC, connection module​




Key Specifications/Special Features:

  • Environment condition: 5-40 degree Celsius ,Relative humidity <85% (+30 degree Celsius), Atmospheric pressure: 70-106KPa ;
  • Pulling-out force: tin bronze and silver plating (20-40uinch), pulling-out force not less than 25N ;
  • The performance of anti-burn: anti-burn PC ,Combustibility achieved GB/T 5169.7-1985 standard ;
  • Insulated resistance: under standard atmospheric pressure, Insulated resistance no less than 1,000M ohm between the two disjunct connections ;
  • Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition ;
  • Intermediate resistance: no more than 3m ohm under standard examination condition ;
  • Dielectric strength: according to industry standard ;
  • Specification: 1 pairs;
  • Life: durability 200 cycles


3.81mm PCB -  IDC 110 IDC Connector , 1 Pairs110 Style Krone Terminal Block 0
