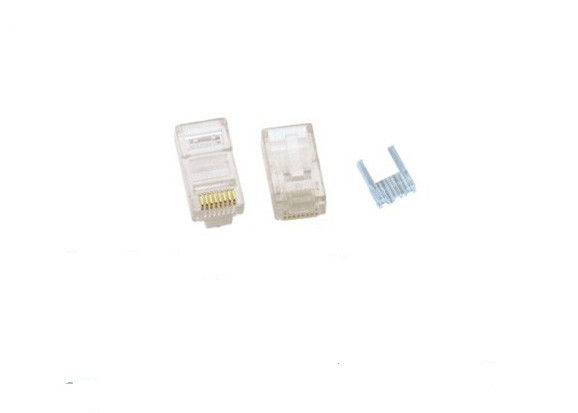

RJ45 8P8C Cat5e UTP Gold Plated Modular Plug

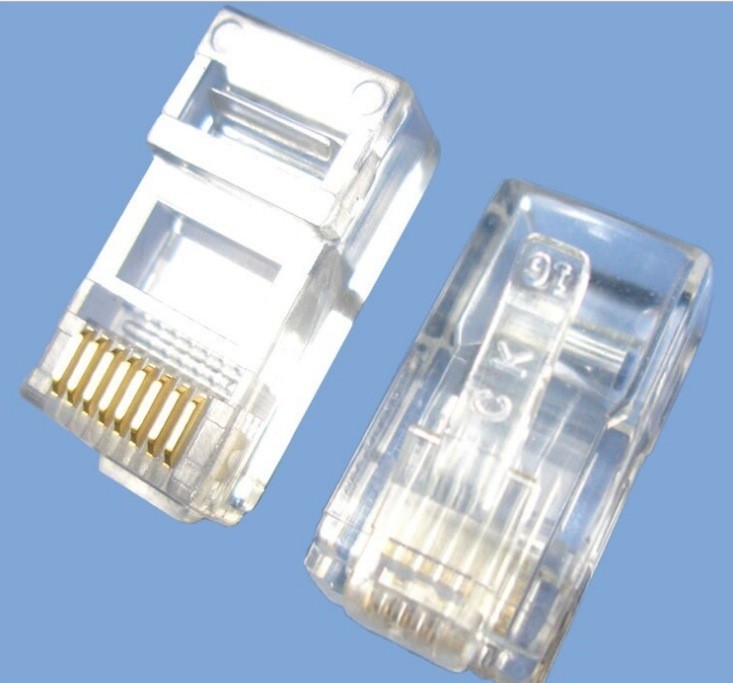

  • RJ45 8P8C Cat5e UTP Gold Plated Modular Plug

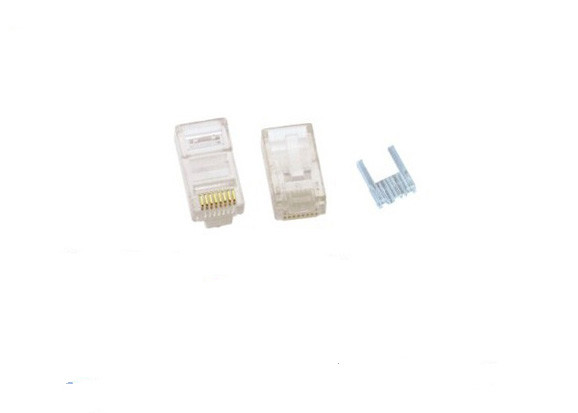

  • RJ45 8P8C Cat5e UTP Gold Plated Modular Plug

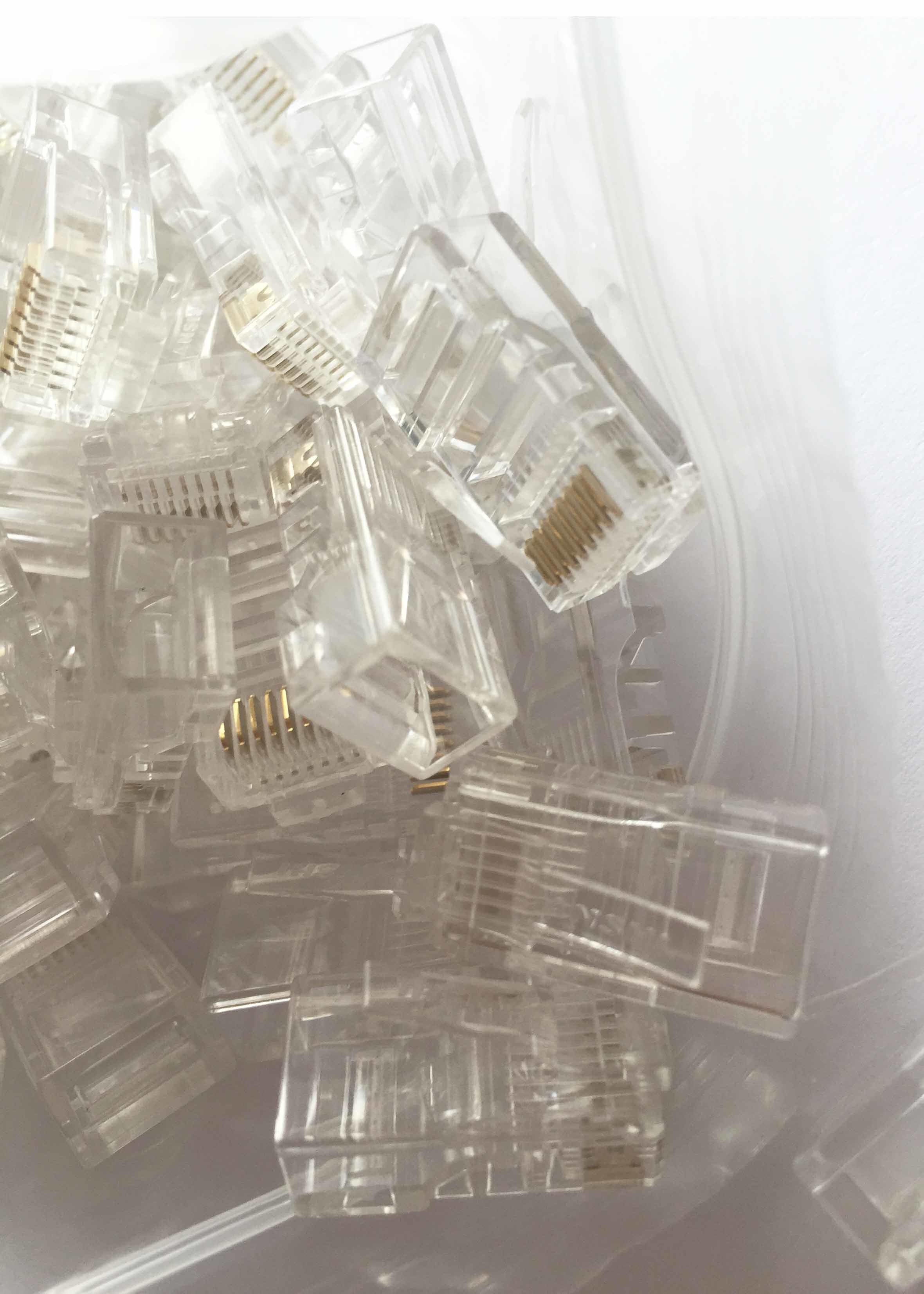

  • RJ45 8P8C Cat5e UTP Gold Plated Modular Plug
Place of Origin ZHEJIANG
Brand Name ANSHI
Certification SGS
Model Number XL-4021A
Minimum Order Quantity 10000pcs
Price $0.027-$0.10
Supply Ability 1000000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product CAT 5e Modular Plug 8P8C Type RJ45, UTP
Category CAT5E Material PC
Glod Plated Depend On Customers Application Telecommunication
Leave a Message
Product Description

RJ45 8P8C Cat5e UTP Gold Plated Modular Plug





PRODUCT FACT

The 8P8C (8 position 8 contact, also backronymed as 8 position 8 conductor; often called RJ45 ) plug is the male type of modular connector commonly used for Ethernet over twisted-pair applications, where the plug on each end terminated using the T568A or T568B pin/pair assignments that are defined in ANSI/TIA-568-C.2 standard.



These connectors are commonly used in computer networking and other telephone applications involving unshielded twisted-pair (UTP), shielded twisted-pair (STP), and multiconductor flat cable. Most network communications today are carried over Category 5e, Category 6 or Category 6A cable with an 8P8C modular plug crimped on each end.







§ SPECIFICATION

-Lead-free & RoHS compliant, certified by TUV.

-Meet the ANSI/TIA-568-C.2, ISO/IEC 2ndedition and CENELEC EN 50173-1 cabling requirements of IEC 60603-7 for RJ45 8-way connector.







ELECTRICAL

-Voltage proof: 1000V DC or AC peek, contact-to-contact.

-Current-carrying capacity: 0.75 Amps minimum

-Contact resistance: 20MΩ maximum

-Insulation resistance: 500MΩ minimum at 10V DC or 100 MΩ minimum at 500V DC

-Input to output resistance: 200MΩ maximum

-DC resistance: 0.2 ohm maximum







MECHANICAL

-Mechanical operation: 750 cycles minimum

-Effectiveness of connector coupling devices: 50 N (11 lbf) for 60s ± 5s





 ENVIRONMENTAL

-Temperature: -10℃~60℃

-Humidity: 10%~90%RH





RJ45 8P8C Cat5e UTP Gold Plated Modular Plug 0
