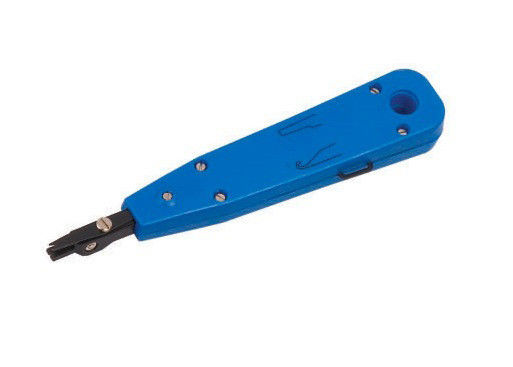

Main Distribution Frame Network Punch Down Tool Rack Mount For Telecommunication

Place of Origin China
Brand Name ANSHI
Certification ROSH, ISO9001
Model Number AS-MDF-PT-B
Minimum Order Quantity 100
Price Negotiable
Supply Ability 1000pcs per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Over-current Protector Unit For Main Distribution Frame Application Telecommunication.
Material ABS Color Blue
Type Rack Mount For Model AS-MDF-PT-P

Cable Punch Down Tool


Ethernet Punch Down Tool

Leave a Message
Product Description

Main distribution frame Insertion Tool, MDF Punch Down Tool



Protection connection block is use in relay the following 2M to the local network or public communication telephone copper wire at the entrance, providing a range of over voltage, over current four sound and light alarm system. Can clearly distinguish visual alarm circuit to prevent external over-voltage over-current signal to the telephone exchange damage. Using for the internal and external wirings to the switch and accerss line to the user .
1. Reed surface of silver, copper with high-quality elastic material that can be wire diameter of 0.4 ~ 0.6mm
2. Shell of high quality plastic, with a grounding and alarm devices.
Main performance parameters:
Working conditions:
(1) Working temperature: 0 ~ +40 (degree) (2) Relative humidity: ≤ 85% (30 degrees)
(3) Atmospheric pressure: 70 ~ 106 (kpa)
Electrical properties:
(1) Insulation Resistance ≥ 1000MΩ
(2) high-voltage protection> 3000V (DC) / mm without breakdown, no arc.
(3) Contact Resistance ≤ 7mΩ between reed wire and terminal into the connection between the contact resistance ≤ 3mΩ
(4) Pull strength: ≥ 25N
(5) Plug time : ≥ 200
(6) Fire-retardant plastic indicators: GB/T5095.2-97
(7) Respond to alarm time: ≤ 2 s
