30 Pairs Indoor Distribution Box ABS Fire Resistant For 10 Pairs Krone Module LSA - PLUS

Place of Origin CHINA
Brand Name ANSHI
Certification ISO 90001, SGS, DAS
Model Number AS-DB30D
Minimum Order Quantity 500
Price Negotiable
Supply Ability 5000 Pieces per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Krone Termination Box Material ABS
Color Grey Type 30 Pairs
Lock Coin Or Key Application Telecommunication

ftth distribution box


indoor distribution box

Leave a Message
Product Description

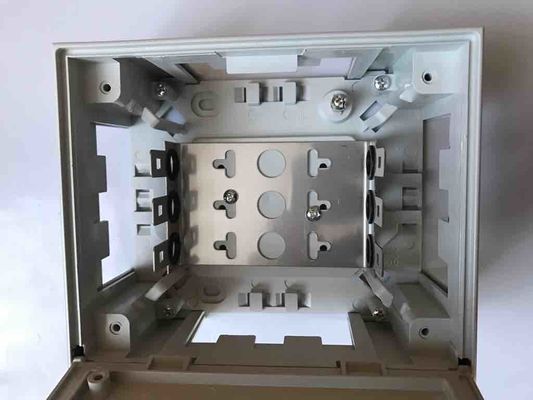

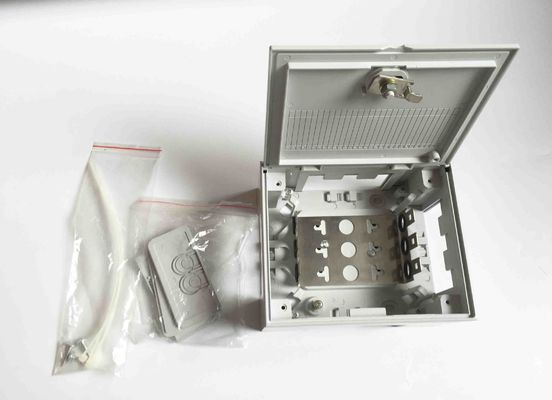

Cable Distribution Box 30 pairs Indoor distribution box for 10 pairs krone module LSA-PLUS



1) Can be mounted with LSA-PLUS 10-pair disconection or connection module

2) Not waterproof box, suitable for indoor wire distribution

3) Material of house: ABS fire-resistant

4) Including stainless steel mounting frame, but modules to be ordered separately

5) Including 1 back mount frame(3ways)

6) Compatible with Krone modules



10 Pairs LSA-PLUS Krone Disconnetion Module



1) Temperature: -5 - 40°C
2) Relative humidity: <85% (+30°C)
3) Atmospheric pressure: 70 106KPa
4) Material: stainless steel and cuprum, cuprum gold plating over nickel
5) Performance of anti-burn: PPT (UL94V-0) or anti-burn ABS (UL94V-0),
combustibility of GB/T 5169.7-1985 standard
6) Construction features: adopts modularization design, elegant
outlook and high endurance
7) Pulling-out force: tin bronze and silver plating (20 - 40uinch), pulling-out
force not less than 25N
8) Intermediate resistance between reed terminators: no more than 7m
(ohm between intermediate reeds under standard examination
9) Intermediate resistance: no more than 3m ohm under standard
examination condition
10) Performance impedance: 120Ω (balance)
11) Work rate: 2mb/s
12) Insulation resistance: 1,000mΩ / 500V (DC)
13) Resistance to voltage: no breakdown or arc for 1 minute under 1kV (DC)
14) Crosstalk ratio: ≥60dB (50kHz - 210MHz)
15) Plug-in loss: ≤0.4dB (50kHz - 210MHz)
16) Back wave loss: ≥18dB (50kHz - 210MHz)
17) Life: 200 cycles
