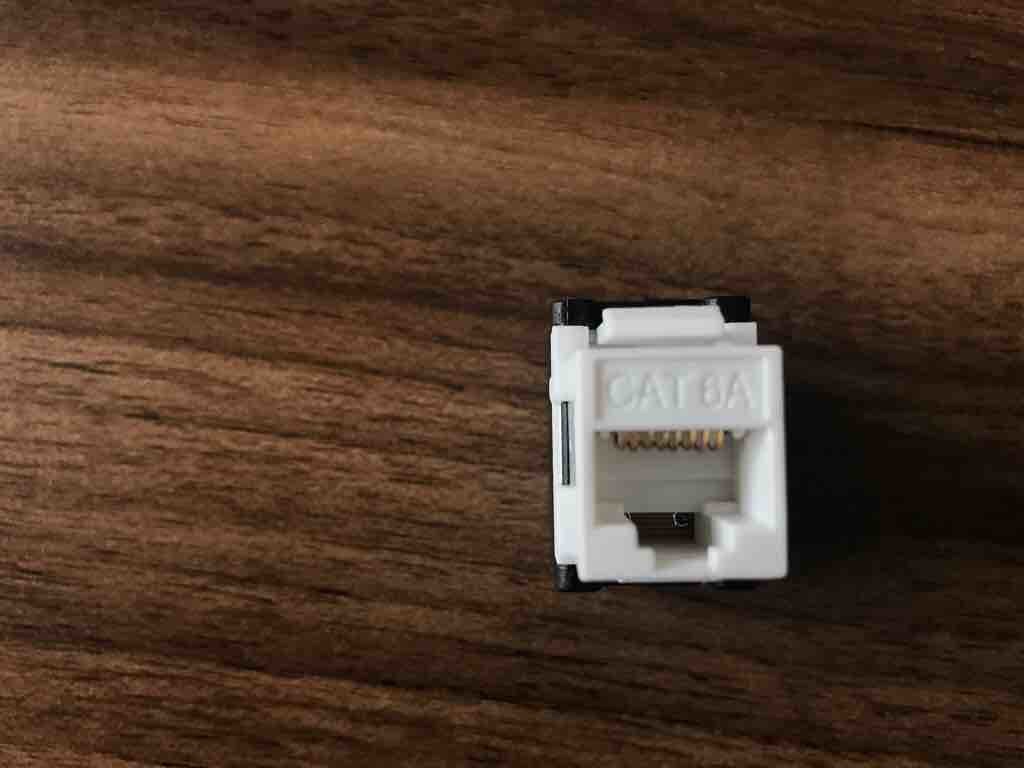

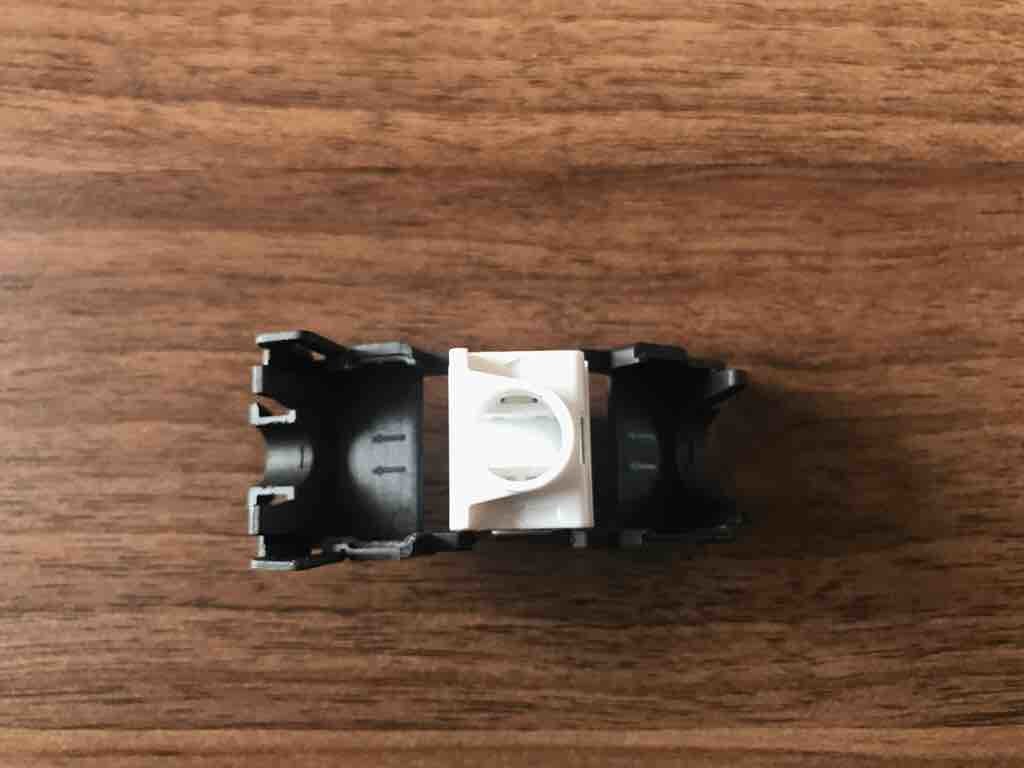

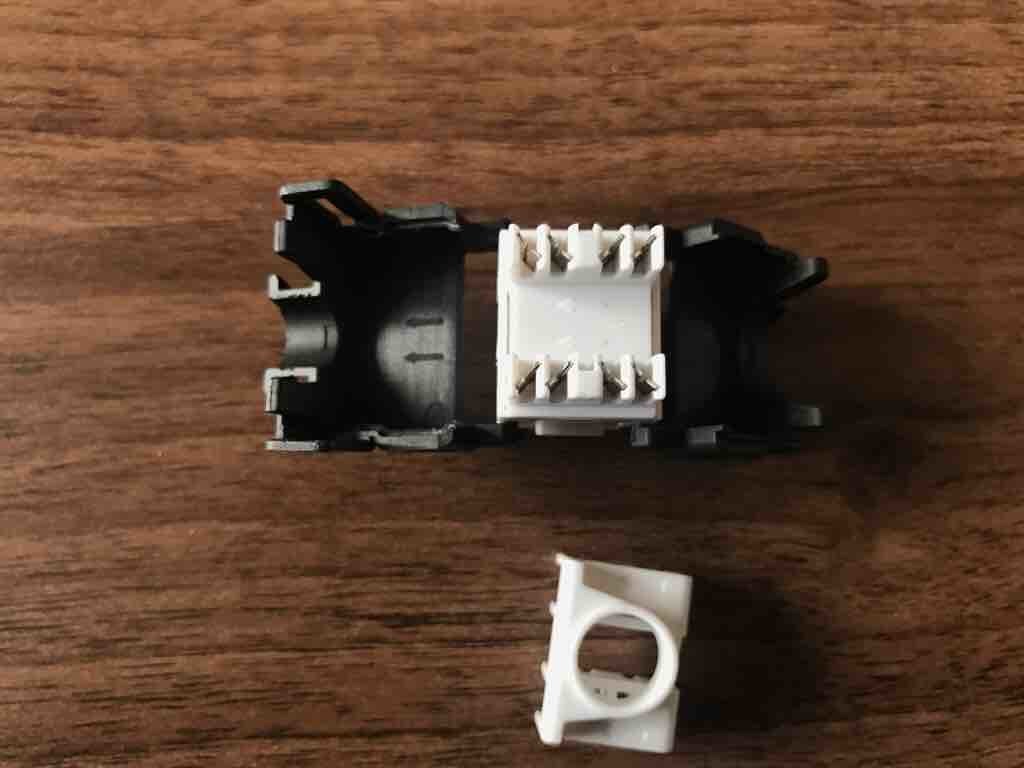

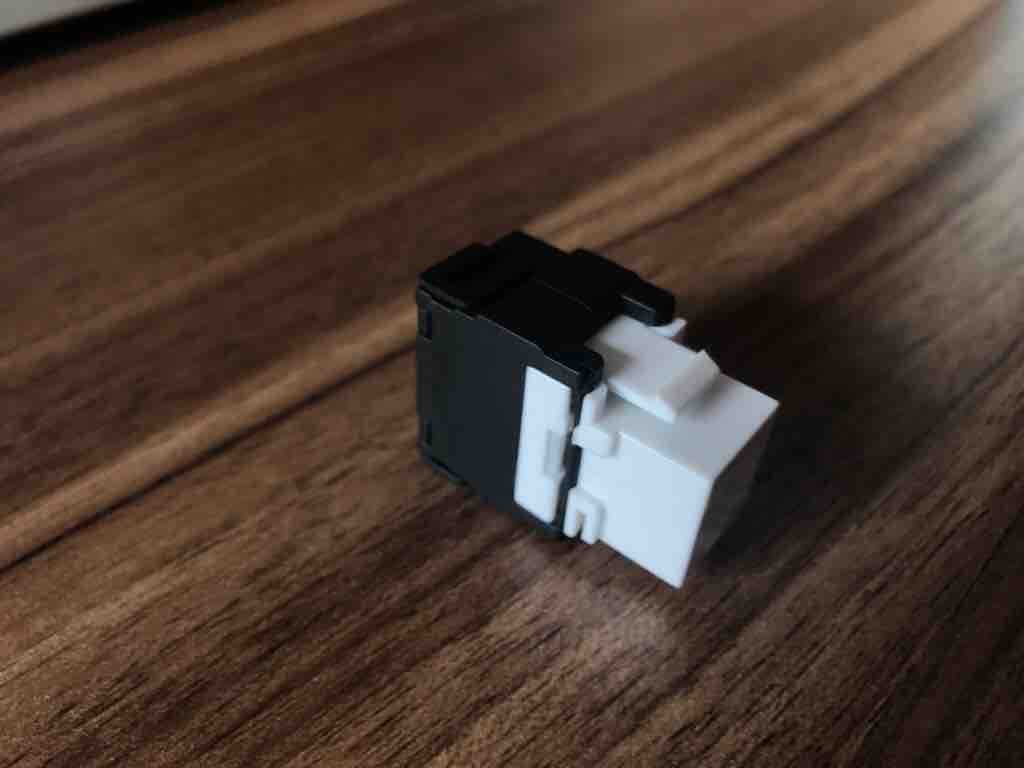

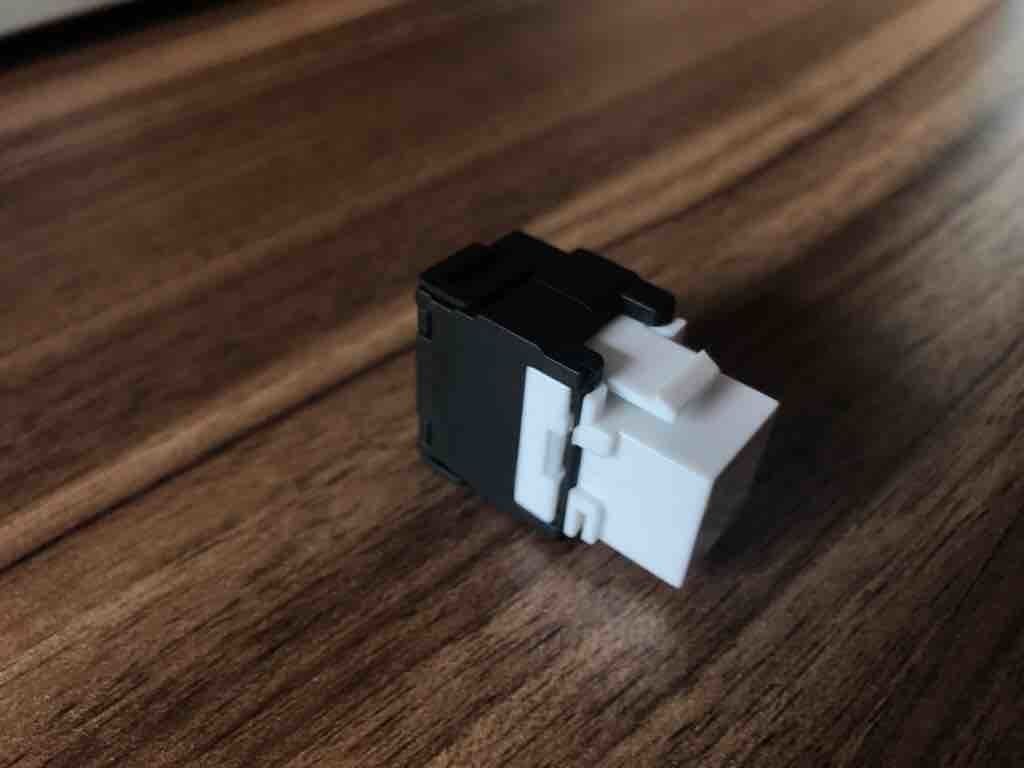

UTP 180 Degree Cat6a Keystone Jack , PC Material Tool Free Keystone Jack

Cat6A RJ45 Keystone Jack UTP 180 Degree Tool free Keystone Jack

§ PRODUCT FACTS

• Performance:KHA Series completely contains all performance level from Cat 5e to Cat 6A.

• Press-Fit Technology:makes the product more reliable. It also promises a much better quality

of conductivity. A more stable transmission performance is guaranteed

since there is no other medium that takes effect in between PCB and

contacts.

• Patent (pending) in Taiwan & U.S.:Unique spring contact structure for improving

RL & counteracting NEXT.

§ SPECIFICATION

1. CE, Lead-free & RoHS2 compliant.

2. Meet the ANSI/TIA-568-C.2, ISO/IEC 11801 2.2 edition and CENELEC EN 50173-1 cabling

requirements for Category 6A& Category 6A components performance.

3. Comply with requirements of ANSI/TIA–1096-A (FCC Part 68) and Level A reliability

requirements of IEC 60603-7-2 IEC 60603-7-4, and IEC 60603-7-41 for RJ45 8-way

unscreened connector.

§ ELECTRICAL

• Voltage proof: 1000V DC or AC peak, contact-to-contact.

• Current-carrying capacity: 0.75Amps minimum

• Contact resistance: 20mohm maximum

• Insulation resistance: 500Mohm minimum at 100V DC

• Input to output resistance: 200mohm maximum

• DC resistance: 0.2ohm maximum

§ MECHANICAL

• Mechanical operation: 750 cycles minimum for insertion / withdrawal with modular plug

20 cycles minimum for cable re-termination

• Effectiveness of connector coupling devices: 50N (11lbf) for 60s ± 5s.

§ ENVIRONMENTAL

• Operation Temperature: -10℃~ 60℃

• Humidity: 10% ~ 90%RH
