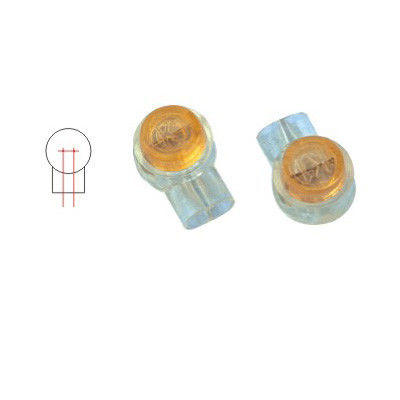

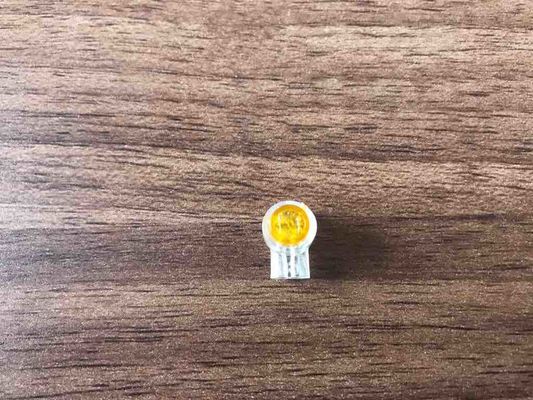

Waterproof IDC Terminal Block Lock Joint 3M UY2 Connector Connector With Yellow Lid

UY Connector IDC Terminal Block Lock joint Discrete make-before-break

Product Description:

1. Used to connect two wires safely and rapidly with moistureproof.
2. Applied to the conductors with inner diameter of 0.4—0.7mm
3. Can connec the cable directly
4. You need’t to shuck off the covering layer when connecting,it can be compression in one time,junction with organic silicon grease oil sealed ,waterproof and antisepticize
5. There are UY,UY2,UR,UDW2 type etc

Double end connector

End connector for the simple connection of plastic-insulated telecommunications cables in splice closures of types DC and FE, suitable for wire diameters 0.40 – 0.90 mm.

Supplied: double connector incl. sorting ring

1. HJKT1 Wire Connector  , two wire inline joints on telephone drop wire of 0.4mm-0.7mm(26-21 AWG) copper or copper-clad steel connector with insulation diameters 1.52mm(0.06"), and Cat.5 compliant.

2. The connector is filled with a moisture resistant compound in order to provide moisture proof connections.

3. All materials is suitable for operation in the tropic with maximum temperature up to 70℃.

4. All materials used in the connectors shall be non-toxic and dermatologically safe.

5. Connectors can retain the electrical & mechanical properties in the test report over

working temperature range -30℃ to 70℃ and humidity range of 0% to 95%.
