OUTDOOR 20 PAIR TERMINAL BOX FOR STB MODULE BOTH INSTALLATION OF WALL MOUNT & POLE MOUNT

OUTDOOR 20 PAIR TERMINAL BOX FOR STB MODULE BOTH INSTALLATION OF WALL MOUNT & POLE MOUNT

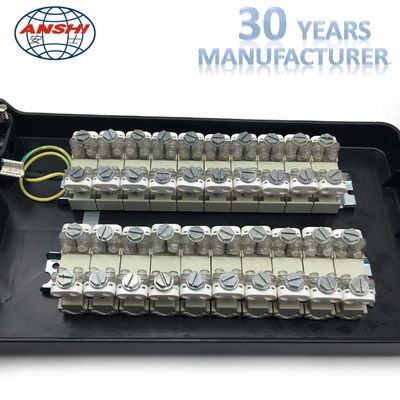

10 & 20 Pair Distribution Box, with a function of cable splicing and termination. Distribution box can be used both indoor and outdoor, and the strength is good sealing, water-proof, and moisture-proof and easy installation.

Structure & Appearance

• a) Distribution box is divided into two parts, cover and base.
• b) Cover and base is made of ABS. The color can be gray or black (it can also customize based on clients requirement); Color is uniform, no obvious difference, no scratch, rust, peeling, discoloration. The cover is fitted with a locking screw.

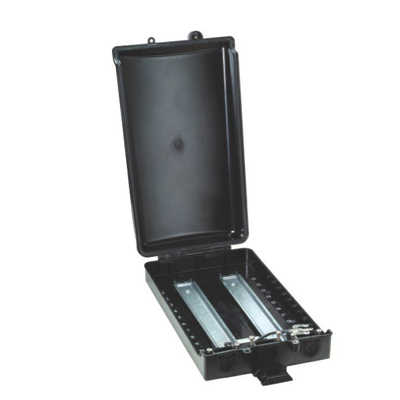

• c) Distribution have a two opening positions, 115°and 155°. It also have a closing system. When box opening angle is in less than 90°, the cover will be closed by small hand pressure.
• d) On the cover, there is a rectangular space 58mm wide and 22mm height. This space can printing the information, such as LOGO, which cannot remove and erase.

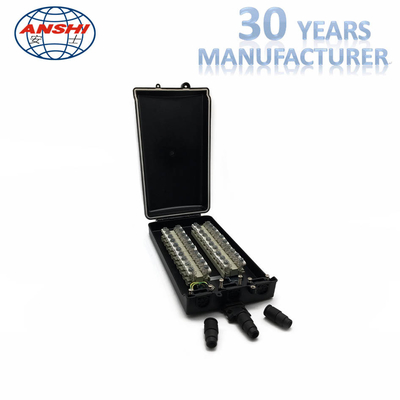

• f) The base has 3 holes, which has function of waterproof. The hole can go through multi-pair cable with a max diameter 18mm (≤18mm). the cable through the hole will be mechanically retained by clamp.
• g) The wire can all operate on the front side, which is convenient for installation.

Structure of the distribution box dimension as below:

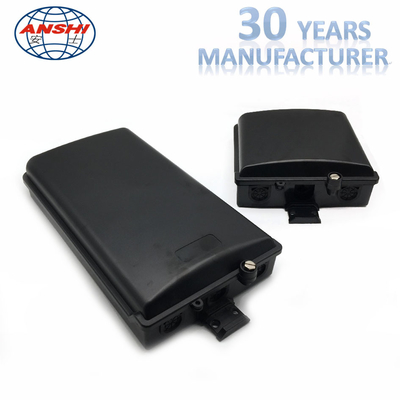

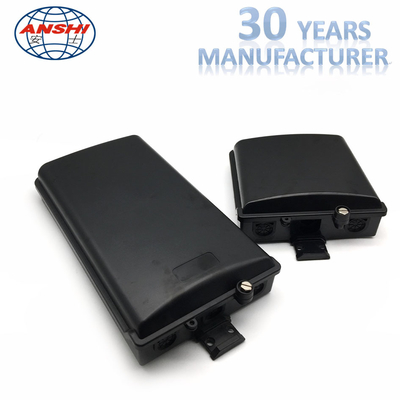

10 Pairs:HxWxD=248x201x70mm

20 Pairs: H×W×D=398×201×70mm

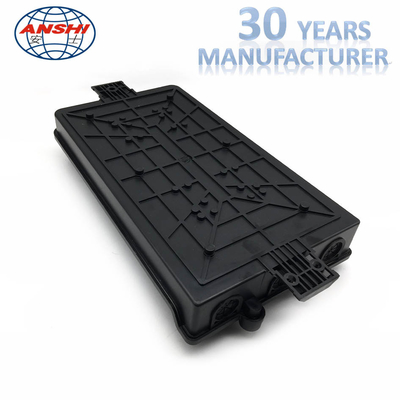

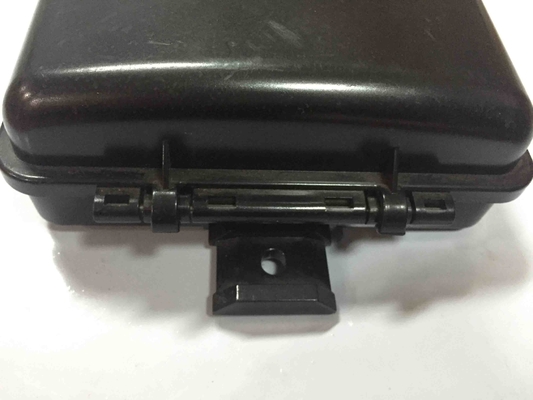

Advantage: SAVE COST ON BACK PLATE (NO NEED EXTRA BACK PLATE, JUST NEED HOOK CAN POLE MOUNT)
