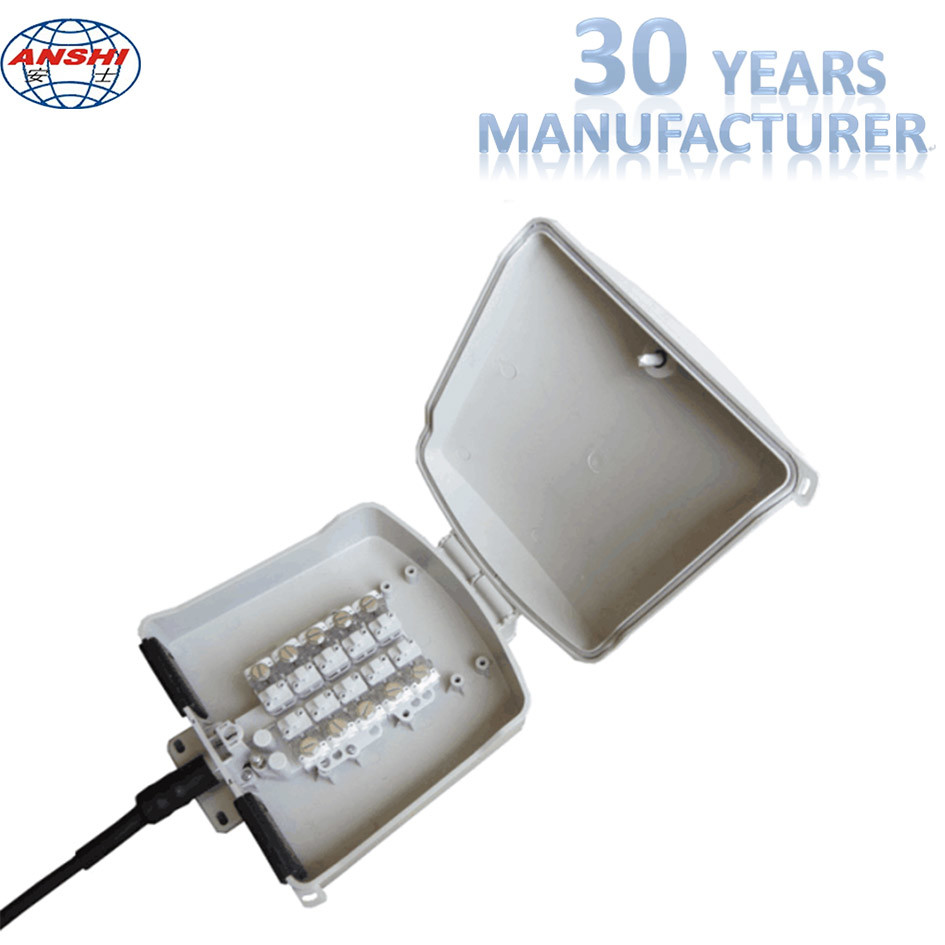

STB Module Subscriber Terminal Block 5 Pairs Tyco Vx Terminal Box Ip55

  • STB Module Subscriber Terminal Block 5 Pairs Tyco Vx Terminal Box Ip55
Place of Origin China
Brand Name ANSHI
Certification SGS, ISO9001
Model Number AS-STB-BOX-10X
Minimum Order Quantity 100
Price Negotiable
Supply Ability 10000PCS/WEEK

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Subscriber Terminal Block Capacity 5 Pairs
Protection Level IP55 Arrestor With Or Without
Environment Indoor Or Outdoor Material ABS Or PC+ABS
Application Copper Telecommunication
Highlight

telecom distribution box

,

stb module
Leave a Message
Product Description

5 Pairs Tyco VX Terminal Box STB module Subscriber Terminal block​





Subscriber Connection System (STB System) belong to copper telecom system. as the connectivity of copper with telephone cable and connector. Tyco VX modular Connection system including STB module, VX terminal block, VX-TB Terminal block, STUB module and STUB box. for STB module have without protection(Gray color) and with protection(Red color and Orange color). The customer can be chosen according to their requirement.

Red color plug module has surge arrestor, normal arrestor voltage about 230V, and w can produce it according to customer requirement. Tyco VX series five-point connection module with overvoltage protection are designed it with simple screwdriver tools easy and fast finish the cable connectivity.it designed for mounting on a standard DIN rail and very easily put the cable punch down into the module.



Specifications:



Contact characteristics

Drop wire connector

Gauge range……………………………………………….....0.4 to 1.05 mm ø

Insulation diameter………………………………………….. 5 mm max. ø

Pair connector

Gauge range ………………………………………..…………..0.4 to 1.05 mm ø

Insulation diameter………………………………………….... 3 mm max. ø

Current conducting capacity

20 A, 10 A per conductor for 10 minutes at least without

causing deformation of the module

Insulation resistance

Dry atmosphere…………………………………………………….. > 1012 Ω

Salt fog (ASTM B117) ……………………………………………….> 1010 Ω

Immersion in water…………………………………………………. > 1010 Ω

(15 days in 3 % NaCl solution)

Mechanical characteristics

Base Polycarbonate…………………………………….……………….. RAL 7035

Cover Polycarbonate…………………………………………………….. RAL 7035

Cable grommet………………………………………………………… EPDM

Dropwire grommet……………………………………………….. Thermoplastic rubber

Pair/drop wire housing screw …………………………………Special passivated direct +lacquered Zamac alloy

Drop wire housing body………………………………………… Transparent polycarbonate

Body…………………………………… Flame retardant (UL94) fiber-glass reinforced fiberglass polycarbonate
