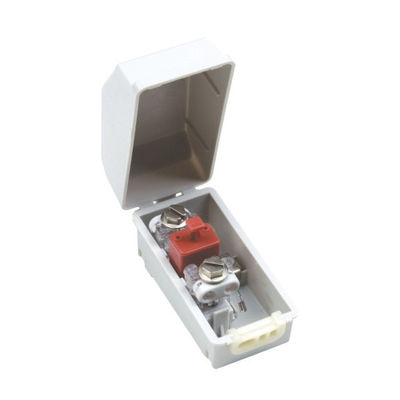

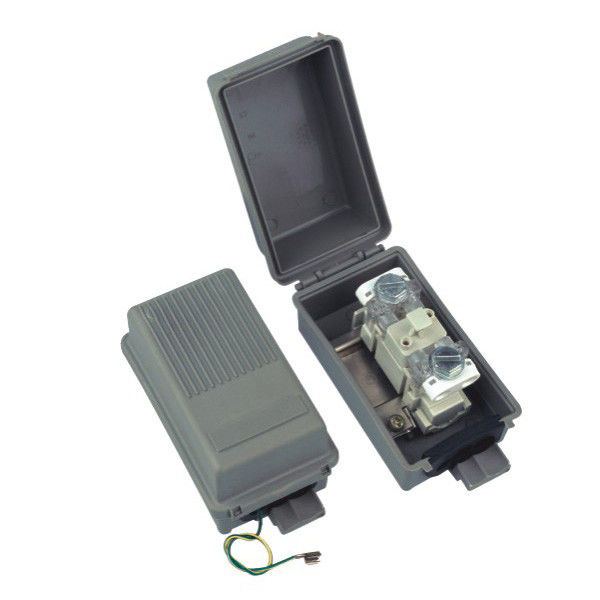

Small Size One Pair STB Module Drop Wire Quick Connect Module With Protection

Small Size One Pair STB Module Drop Wire Quick Connect Module With Protection

  • Small Size One Pair STB Module Drop Wire Quick Connect Module With Protection
  • Small Size One Pair STB Module Drop Wire Quick Connect Module With Protection
Small Size One Pair STB Module Drop Wire Quick Connect Module With Protection
Product Details:
Place of Origin: China
Brand Name: ANSHI
Certification: SGS, ISO9001
Model Number: AS-STB-BOX-1
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Negotiable
Supply Ability: 10000PCS/WEEK
Contact Now
Detailed Product Description
Name: Subscriber Terminal Block Capacity: 1
Protection Level: IP55 GDT: With Or Without
Environment: Indoor Or Outdoor External Size: 98.5*50*52.5 Or 93*44.5*53.5
High Light:

vx module

,

telecom distribution box

one pair STB Drop Wire distribution box with protection



The STB module provide a connection point between an exchange-side cable pair and a distribution pair. It incorporates a 5-point plug in module to provide continuity and a range of other options. Removal of the plug-in module does not disturb wire connections but makes contacts to them available for testing of both sides of the network.



IDC Type Connections
Subscriber terminal block Module
Drop Wire Module ANSHI
Gas Tube Station Protector

Quick Connect Module
Insulation displacement (IDC) Type Connections



It is especially recommended for:


1. Outdoor connections where the enviromental conditions are extremely agressive.
2. Terminations where user development characteristics require future flexibility in terms of the type of protection or filtering capabilities.
Current conducting capacity
20 A, 10 A per conductor for 10 minutes at least, without causing deformation to the module
Insulation resistance
Dry atmosphere: >1010 Damp atmosphere(ASTM D618, procedure F): >1010 Salt fog:(ASTM B117) >109
Immersion in water: (15 days in 3% NaCl solution) TELCORDIA TR-NWT-000975 (Formerly Bellcore)>109
Contact resistanceRmaterial + Rbridge contacts + Rwire contacts <10 m
Increase in contact resistanceAfter climatic tests: <2.5 m After 50 reinsertions: <2.5 m
Dielectric strength >3,000 Vdc for 1 minute
Mechanical characteristics
Protector ground contactTinned hard brass Continuity contactTinned hard brass
Plug-in module bodyFlame retardant (UL94) fiber-glass reinforced polycarbonate
Plug-in module sealantGel O ring EPDM
Internal Configuration Continuity ASSTB 260 V GDT230 V GDTAS-STB-P



  • Size: (mm) (H x W x D): 46 x 50 x 20 (with Protection)
  • Environment condition: 5-40 degree Celsius ,Relative humidity <85% (+30 degree Celsius),Atmospheric pressure: 70-106KPa
  • Pulling-out force: tin bronze and silver plating (20-40uinch), pulling-out force not less than 25N
  • The performance of anti-burn: PBT or anti-burn PC ,Combustibility achieved GB/T 5169.7-1985 standard
  • Type: 1) without Protection: DIN rail drop wire connector with continuity plug. The plug is grey in colour and has only the function of electrically connecting the incoming pair with the outgoing one. 2) with Protection: DIN rail drop wire connector with 3-point protection: It differs from previous one by having a RED plug, which, beside providing continuity, also integrates a 3-pole gas arrestor (GDT), rated 230V, 5A/5kA
  • Life: durability 200 cycles (0.4-0.6 diameter), durability 50 cycles (0.6-1.2 diameter)
  • Testing-generalElectricalMechanicalEnvironmental and so onaccording to industry standard
  • Material and Production Stamp and Product Branding: according to Client standard
  •

  • One Pair Subscriber Terminal Block Module With GDT Protection
  • One Pair Subscriber Terminal Block Module With GDT Protection
