Cat5e RJ45 Keystone Jack UTP Punch Down Toolless Keystone Jack ISO Standards

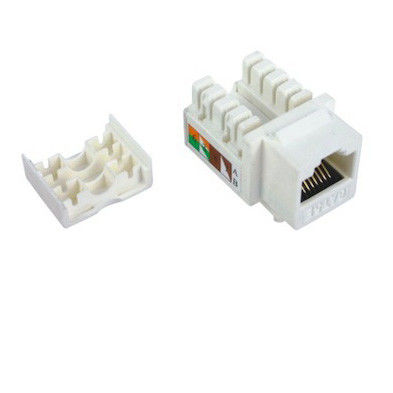

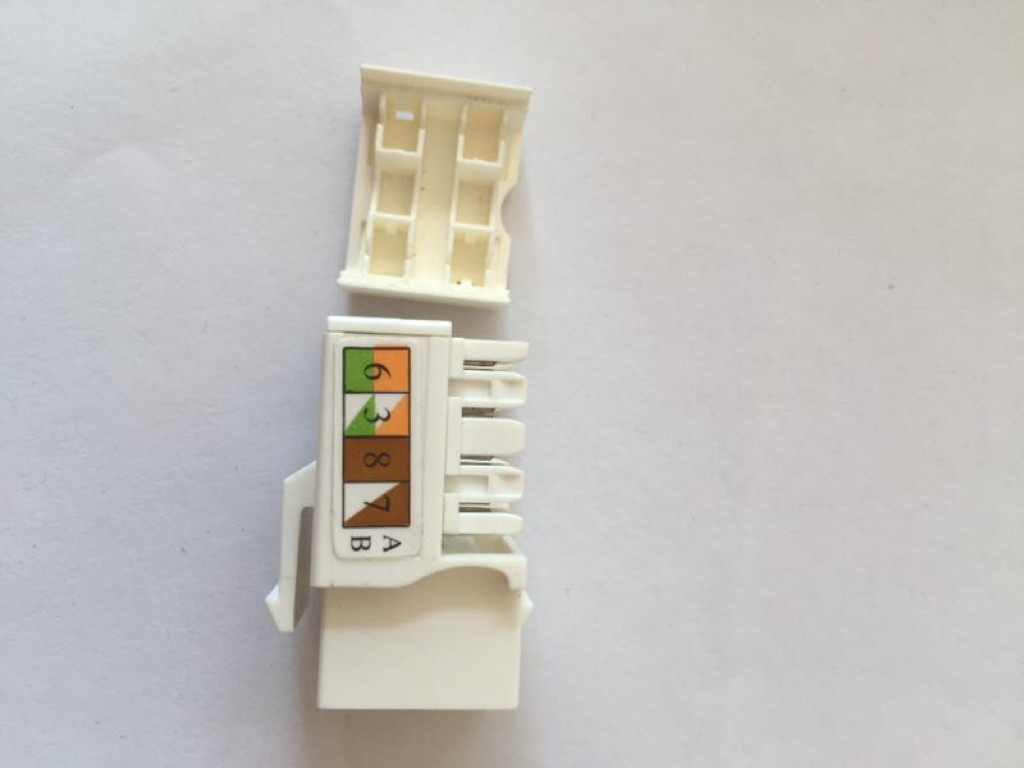

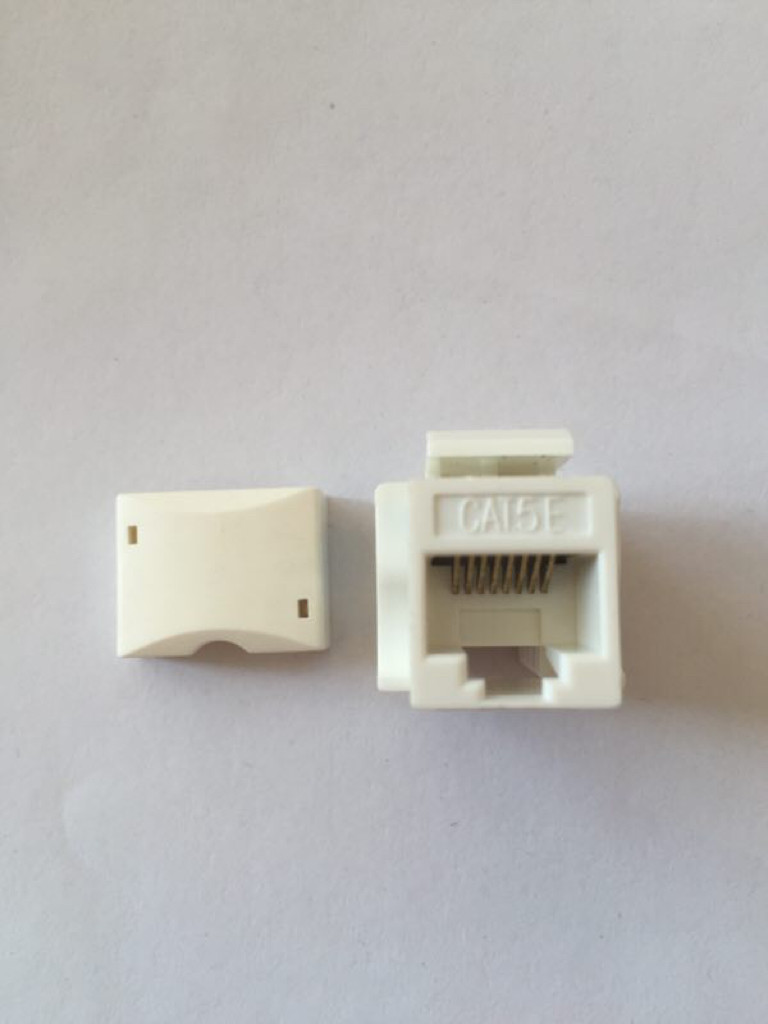

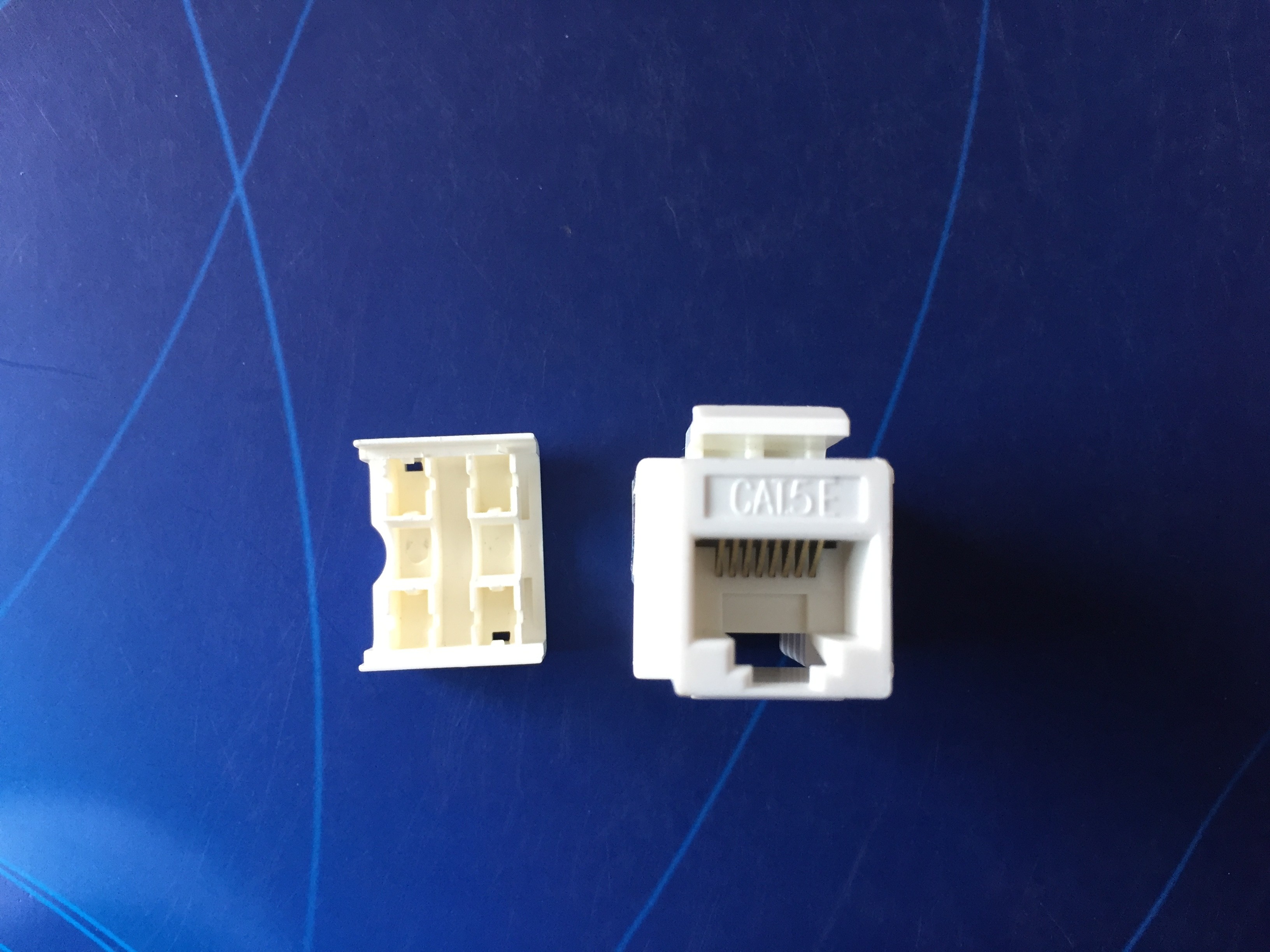

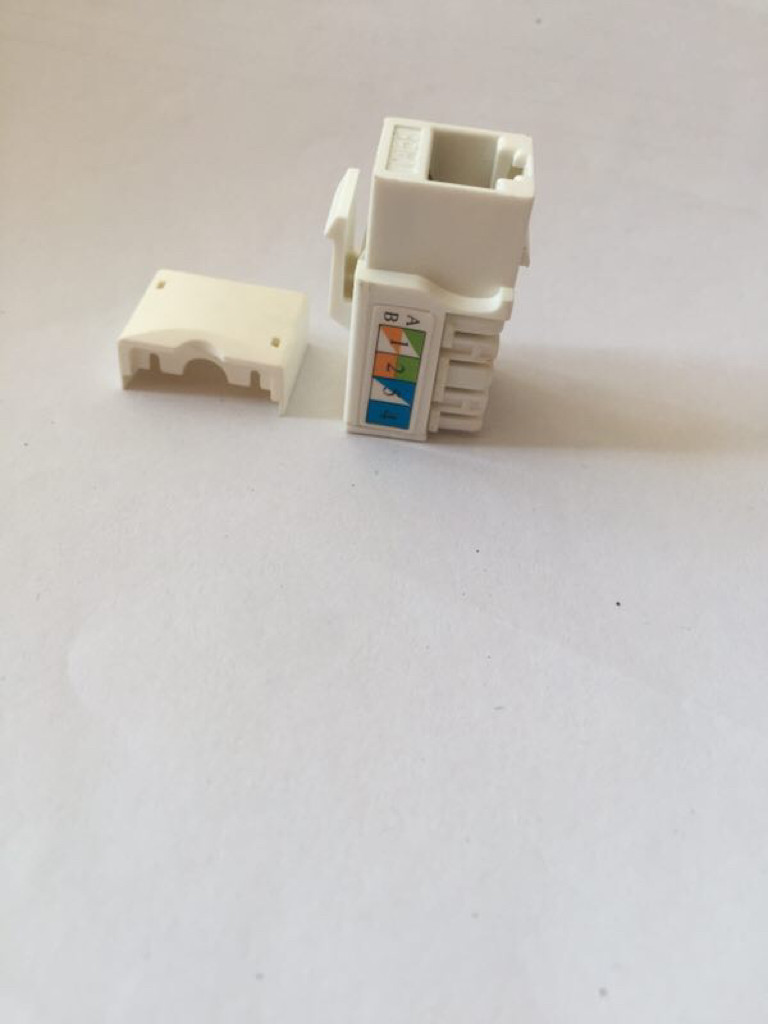

Cat5e RJ45 Keystone Jack UTP Punch Down Toolless Keystone Jack

1) Contact resistance: <2.5m Ohm
2) Contact resistance of linker and lead: <2.5m Ohm
3) Insulation resistance: >1,000M Ohm
4) Withstand test voltage: DC 1,000V
5) Times of repetitive use: >=750
6) Designed and manufactured in accordance with ISO / IEC11801 standards
7) Design exceeds normal requirements
8) Colored component combinations for convenience of identification and network management

Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 3 requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Angle: 90 Degree
Termination: 110 Type
Electrical:
According to UL 1863
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area.

Features:

1) Contact resistance: <2.5m Ohm

2) Contact resistance of linker and lead: <2.5m Ohm

3) Insulation resistance: >1,000M Ohm

4) Withstand test voltage: DC 1,000V

5) Times of repetitive use: >=750

6) Designed and manufactured in accordance with ISO / IEC11801

standards

7) Design exceeds normal requirements

8) Colored component combinations for convenience of identification

and network management

9) Many other message modules available for wiring arrangements

10) Compatible with AMP keystone

11) Colors available: white, yellow, ivory, red, black, blue

The RJ45 Cat5e keystone jack module is used for network communication in telecommunication field,together with patch panel,faceplate,patch cord,etc.

all kinds of keystone jack and relation products for network communication we can manufacture:

RJ45 Cat5e keystone jack, 110 IDC type

RJ45 keystone jack,dual IDC type,Degree 180

Cat.6 RJ45 keystone jack.,dual IDC type

faceplate,patch panel(UTP,FTP),patch cord,cross connection block,network cabinet,network distribution frame,network distribution box, Cat5e communication cable,Cat3 communication cable.
