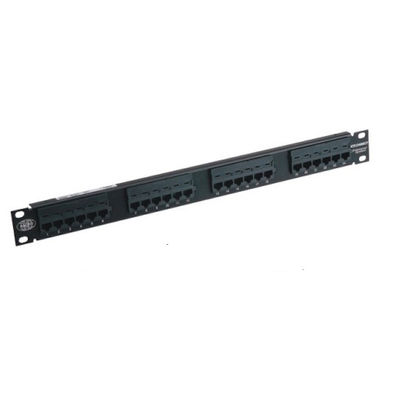

Modularization Design 110 IDC UTP Patch Panel 24 Port Cat5e For 19"Cabinet

Modularization Design 110 IDC UTP Patch Panel 24 Port Cat5e For 19"Cabinet

  • Modularization Design 110 IDC UTP Patch Panel 24 Port Cat5e For 19"Cabinet
  • Modularization Design 110 IDC UTP Patch Panel 24 Port Cat5e For 19"Cabinet
  • Modularization Design 110 IDC UTP Patch Panel 24 Port Cat5e For 19"Cabinet
Modularization Design 110 IDC UTP Patch Panel 24 Port Cat5e For 19"Cabinet
Product Details:
Place of Origin: ZHEJIANG, China
Brand Name: ANSHI or OEM
Certification: SGS; DAS
Model Number: XL-4017A
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Negotiable
Supply Ability: 10000 Pieces per Month
Contact Now
Detailed Product Description
Name: 24 Port Cat5e Patch Panel Color: Black
Size: 19'', 1U Type: 110 IDC
High Light:

1u 24 port patch panel

,

50 port voice patch panel

1 With Cat5e keystone modules used for 19"cabinet ,Complete metalation and reed construction, modularization design
2 IDC: phosphor bronze and silver plating (20-50uinch), suitable diameter 0.4-0.6mm, durability 200 cycles
3 Contact pin: phosphor bronze and gold plating (20-50uinch), mating durability not less than 750 cycles
4 Anti-burn performance: plastic part made from PPO and PC, meeting the international standard
5 Intermediate resistance: no more than 2.5m ohm in normal atmosphere pressure (not including bulk resistor)
6 Insulated resistance: no less than 1,000M ohm in normal atmosphere pressure
7 The intensity of anti-currency: DC 1,000V (AC,700V) No puncture and flash-over phenomenon in one minute. Accord with industry standard
8 Label: clear label to ensure easy to manage
9 Type: unshielded ,24 ports.
10 Standard: designed by international ISO/IEC11801 and TIA/EIA568

1 WithCat5e keystone modules used for 19"cabinet ,Complete metalation and reedconstruction, modularization design

2 IDC:phosphor bronze and silver plating (20-50uinch), suitable diameter 0.4-0.6mm,durability 200 cycles

3 Contactpin: phosphor bronze and gold plating (20-50uinch), mating durability not lessthan 750 cycles

4 Anti-burnperformance: plastic part made from PPO and PC, meeting the internationalstandard

5 Intermediateresistance: no more than 2.5m ohm in normal atmosphere pressure (not includingbulk resistor)

6 Insulatedresistance: no less than 1,000M ohm in normal atmosphere pressure

7 Theintensity of anti-currency: DC 1,000V (AC,700V) Nopuncture and flash-over phenomenon in one minute. Accord with industry standard

8 Label:clear label to ensure easy to manage

9 Type:shielded and unshielded

10 Standard:designed by international ISO/IEC11801 and TIA/EIA568

11Adoptspecial IDC,suitable for use both LSA insertion tools and 110 type impact tools,180wire termination.

12 toollesskeystone modules.
