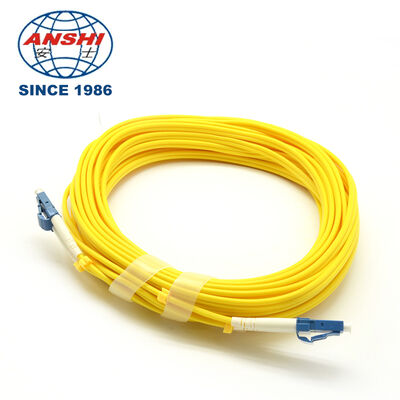

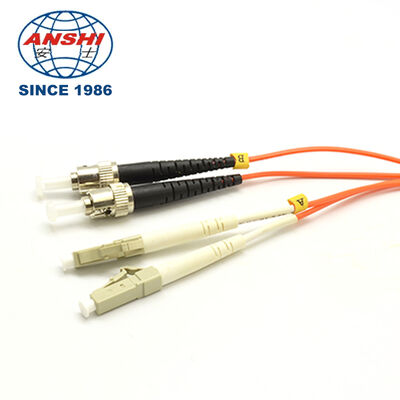

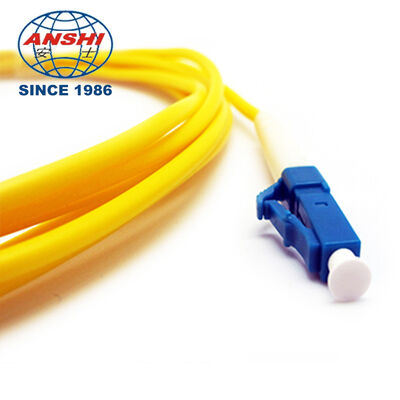

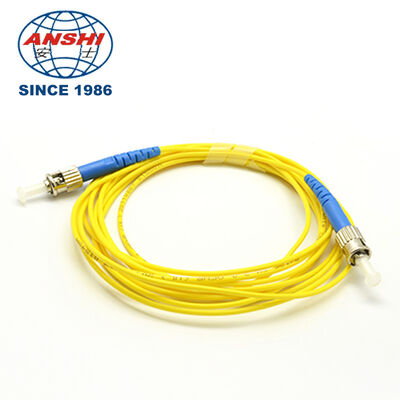

Communication Manufacturer 90 Degree Bent Boot Lc Sm Sx Fiber Optic Patch Cord Connector

  • Communication Manufacturer 90 Degree Bent Boot Lc Sm Sx Fiber Optic Patch Cord Connector
  • Communication Manufacturer 90 Degree Bent Boot Lc Sm Sx Fiber Optic Patch Cord Connector
  • Communication Manufacturer 90 Degree Bent Boot Lc Sm Sx Fiber Optic Patch Cord Connector
  • Communication Manufacturer 90 Degree Bent Boot Lc Sm Sx Fiber Optic Patch Cord Connector
  • Communication Manufacturer 90 Degree Bent Boot Lc Sm Sx Fiber Optic Patch Cord Connector
Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Minimum Order Quantity Negotiable
Price Negotiable
Product Details
Usage The Broadband Network,network Cabling Certificate FCC,CE,ROHS,ISO9001,TLC
Number Of Conductor 1,2,4,6,8,10,12,14,16,18 Ect Color Yellow/orange
Jacket PVC/LSOH Ferrule PC.UPC.APC
Insertion Loss ≤0.2dB The Joint Selection FC,SC,ST,LC,MU,MTRJ,E-2000 And Other
Highlight

90 degree bent fiber optic patch cord

,

LC SM SX fiber optic connector

,

fiber distribution box patch cord
Leave a Message
Product Description
Brand Name
Owire, APKTE or OEM
Model Number
multi mode fiber Optic cable
Usage
The broadband network,network cabling
Certificate
FCC,CE,ROHS,ISO9001,TLC
Number of Conductor
1,2,4,6,8,10,12,14,16,18 ect
Color
yellow/orange
Jacket
PVC/LSOH
Ferrule
PC.UPC.APC
Insertion Loss
≤0.2dB
the joint selection
FC,SC,ST,LC,MU,MTRJ,E-2000 and other
Product name
High Quality Lc Fiber Optic Patch Cord Connector

Features:

  • Fiber mode: MM/SM
  • Connector: SC-SC,ST-ST,FC-FC,LC-LC
  • Available Length: User-defined
  • Jacket Colors: Orange,Ywllow
  • Ferrule: PC.UPC,APC
  • Insertion Loss:≤0.2dB
  • Specification according to customer’s requests

Technical Parameters :

  1. Insertion Loss ( Single - Mode : PC ≤ 0.2 db ,APC ≤ 0.3 db , Multi - Mode : PC ≤ 0.3 db ) .
  2. Return Loss ( Single - Mode : PC ≥ 50 db , APC ≥ 50 db , Multi - Mode : PC ≥ 45)
  3. Working Temperature:-40 °C ~+75°C
  4. Operating Wavelength:1310,1550nm
  5. The plug to dial the number of : ≥ 1 , 000 times

Formulate for customer:

  1. Diameter:0.9 , 2.0 , 3.0 mm , etc
  2. Type: Single - Mode ( 9/125 um ) , Multi - Mode ( 50/125 um , 62.5 / 125 um , )
  3. Specification: single core , dual - core , the 4 core , 6 cores , 12 core . . . etc(according to your requests)
  4. the joint selection : FC,SC,ST,LC,MU,MTRJ,E-2000 and other
  5. length : The length of patch cord is depend on user's requirements
  6. Packaging Detail: PVC plastic bags in cartons

Communication Manufacturer 90 Degree Bent Boot Lc Sm Sx Fiber Optic Patch Cord ConnectorCommunication Manufacturer 90 Degree Bent Boot Lc Sm Sx Fiber Optic Patch Cord Connector
