19 Inch 32 Port Empty STP FTP Shielded RJ45 Patch Panel CAT5E CAT6 Rack Mount Network Distribution Panel

  • 19 Inch 32 Port Empty STP FTP Shielded RJ45 Patch Panel CAT5E CAT6 Rack Mount Network Distribution Panel
  • 19 Inch 32 Port Empty STP FTP Shielded RJ45 Patch Panel CAT5E CAT6 Rack Mount Network Distribution Panel
  • 19 Inch 32 Port Empty STP FTP Shielded RJ45 Patch Panel CAT5E CAT6 Rack Mount Network Distribution Panel
  • 19 Inch 32 Port Empty STP FTP Shielded RJ45 Patch Panel CAT5E CAT6 Rack Mount Network Distribution Panel
  • 19 Inch 32 Port Empty STP FTP Shielded RJ45 Patch Panel CAT5E CAT6 Rack Mount Network Distribution Panel
Place of Origin ZHEJIANG, China
Brand Name ANSHI or OEM
Certification SGS; DAS
Minimum Order Quantity 100
Price Negotiable
Supply Ability 10000 Pieces per Month
Product Details
Name Patch Panel Port 12 Ports
Cable Types Cat6,Cat6A Applications Telecommunications
Color Black Connector Type RJ45
Material Steel Brand ANSHI/OEM
Dimensions 10 Inches, 1U
Leave a Message
Product Description

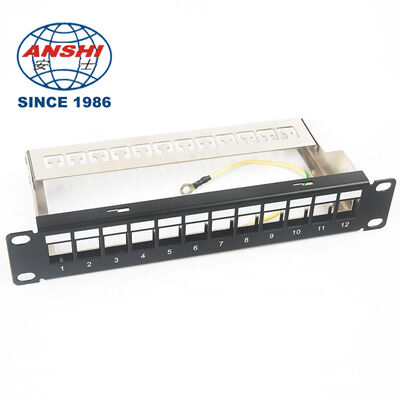

Product Name Cat6/Cat6a Patch Panel Coupler
Product Type 12-port patch panel
Specifications 10 ′ ′ mounting dimensions, modular design, with 12 Category 5e modules
Material Made of high-quality cold-rolled steel with ABS injection molding
Color Black
Main Technical Parameters
  • IDC: Phosphor bronze, silver-plated (20–50 μiLZh), suitable for 22, 24, and 26 AWG (0.64, 0.5, and 0.4 mm) cables, with a service life of at least 250 cycles.
  • 8-pin connector: Phosphor bronze, gold-plated (20–50 μLZh); plugs and sockets can be reinserted at least 750 times
  • Contact resistance: No more than 2.5 mΩ under normal atmospheric pressure (excluding body resistance)
  • Insulation resistance: Not less than 1000 MΩ under normal atmospheric pressure
  • Electrical strength: DC 1000 V (AC 700 V) with no breakdown or arcing for 1 minute
  • Standards: Designed and manufactured in accordance with international standards ISO/IEC 11801 and TIA/EIA 568

Available for full-load operation.

19 Inch 32 Port Empty STP FTP Shielded RJ45 Patch Panel CAT5E CAT6 Rack Mount Network Distribution Panel 019 Inch 32 Port Empty STP FTP Shielded RJ45 Patch Panel CAT5E CAT6 Rack Mount Network Distribution Panel 119 Inch 32 Port Empty STP FTP Shielded RJ45 Patch Panel CAT5E CAT6 Rack Mount Network Distribution Panel 2
