4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Fiber Optic Distribution Box | Dimension | 140*105*27mm |
|---|---|---|---|
| Capability | 4 Port | Application | FTTH |
| Material | SPCC With Glorry Surface | Color | Offwhite |
| Packing | 1 Pcs /box | ||
| Highlight | 4 port FTTH distribution box,wall mount fiber optic box,FTTH box with SC adapter |
||
You can tick the products you need and communicate with us in the message board.
Product Description
ANSHI 4 Cores Fiber Optic Terminal Box
This box is the interface between drop optical cable and the patch cord connecting customer ONT.
Can used for 4 Termnations.
It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Product Features
1. Material: Metal Cold Roll Sheet (SPCC)
2. Cable Port:3 Port
3. Box include the fiber organizerfor splicing and termination of the drop optical fiber cables
4. The box can install max 4pcs SC SX Adapter and 4 cores pigtails
5. Smooth installation with compliant bending radius
6. Connection, fixing and arrangement of drop cables
(1) Easy to re-enter not re-entry kit required
(2) Compliant with cable diameter from 5mm to 10mm
7. Easy installation for drop cable without specific tool
8. Open and re-closed as often as required without using power consumable material or speical tools
9. Corrosion resistance and watertight and able to protect the components from harsh, high heat, dust and humidity environment
Technical Specifications
| Item | AS-ODF-FDB-4B |
|---|---|
| Dimensions | 140*105*27mm |
| Entry & Outlet Port | 3 Port |
| Adapter |
SC/UPC SM SX Adapter *4 pieces OR LC SM DX Adapter *4 pieces OR FC Adapter * 4 pieces |
| Adapter Ports | 4 ports |
| Splitter Compatibility |
1x4 PLC Splitter or Pigtail |
| Color | Offwhite or Customize |
| Operating Temperature | -25°C to 60°C (5-95% relative humidity) |

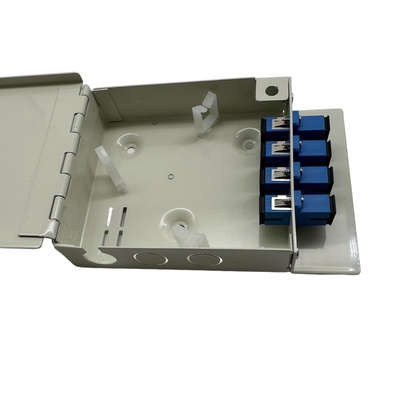

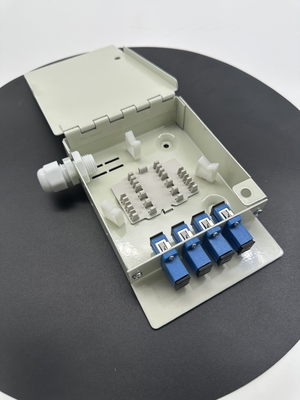

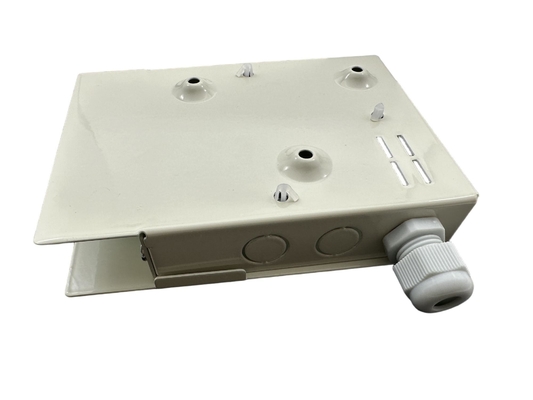

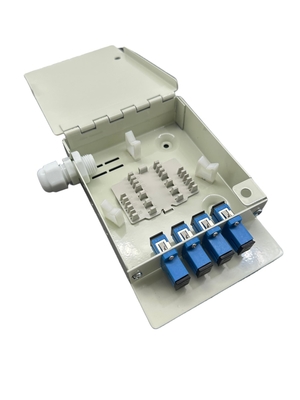

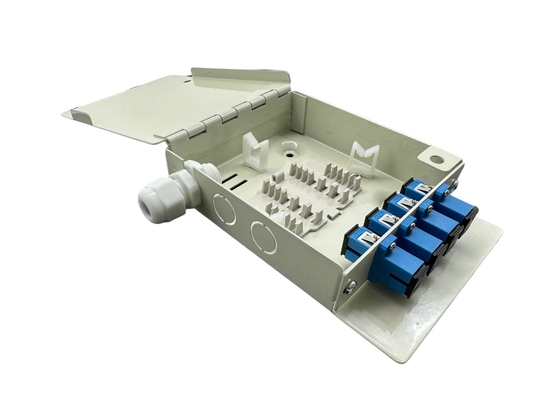

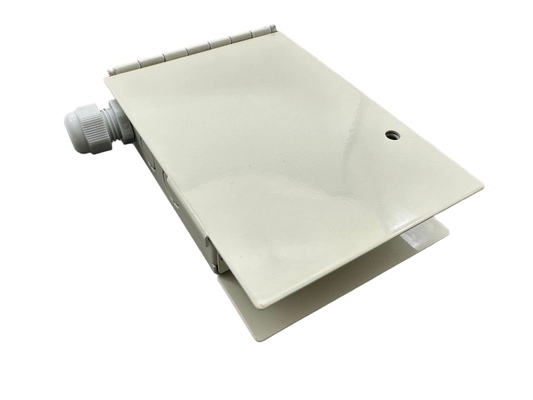

Product Images
