ANSHI 19 Inch Rack Mount Din Rail Drawer Fiber Optic Patch Panel 1U Fiber Panel
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Fiber Optic Sliding Patch Panel | Material | Cold-rolled Steel Sheet |
|---|---|---|---|
| Type | LC SC FC ST MTP MPO | High | 1u |
| Application | FTTH FTTB FTTX Network | Install | 19" Rack |
| Color | Black | ||
| Highlight | Din Rail Fiber Optic Patch Panel,19 Inch Fiber Optic Patch Panel,ANSHI 1U Fiber Optic Patch Panel |
||
Product Description

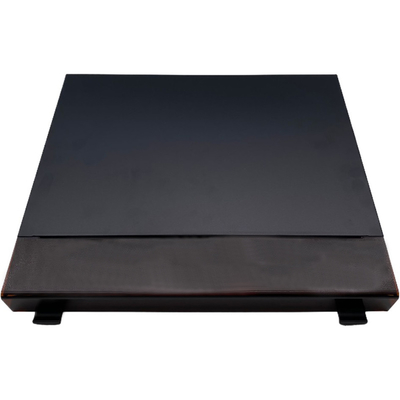

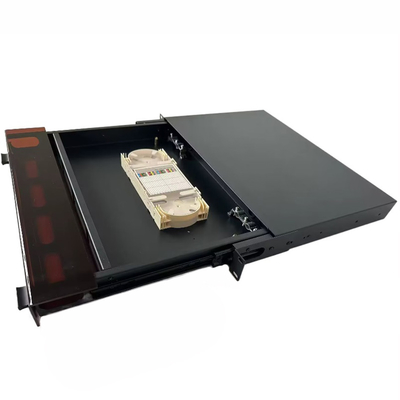

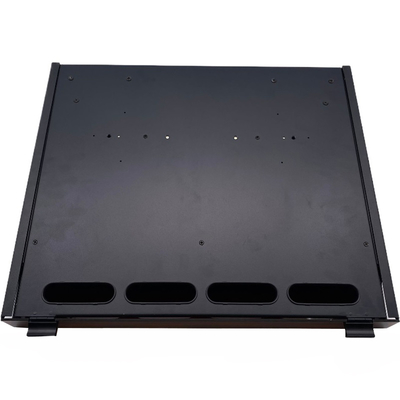

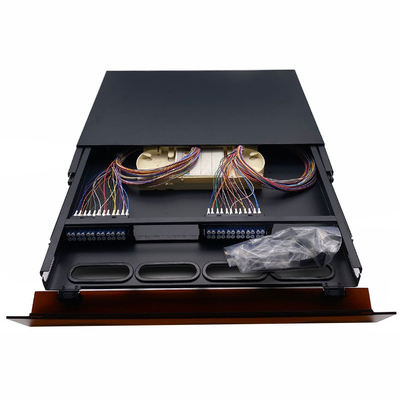

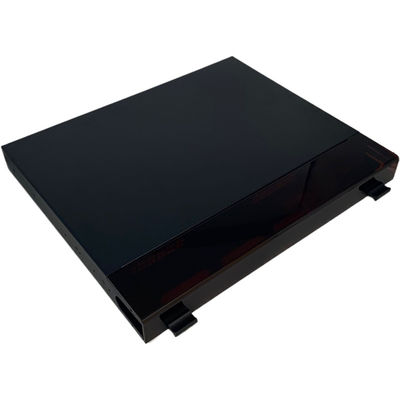

ANSHI 19 Inch Rack Mount Din Rail Drawer Fiber Optic Patch Panel 1U Fiber Panel
Product Description
Description:
AS-FPP-YKL-A 1U drawing type Patch Panel is used in the data center cabling region and connected the ports with cable to the back of the panel. it is usually assembled in 19 inch frame rack and cabinet.
You can assemble with 4 pcs dapter panel. and it can reach to 1U 96 cores splicing.
Technical Features:
1.Drawing type design, with 3 flexible guide rail, operate more fluently and flexibly;
2.Can install 4 pcs adapter panel, and MTP MPO cassette,and manage 96cores max;
3.Usually assembled with 2 layers fusion splice plates with ears, and can splice 48 cores
4.Produced with high-quality cold-rolled steel sheet, the main body's depth is 1.2mm;
5.With cable management plate, more cabling ways.
Product details
| Product name | Fiber optic sliding patch panel |
| Size | 366*482.6*44mm |
| Panel Material | Cold-rolled steel sheet |
| thickness of sheet | 1.3mm 1,5mm |
| Qty of Adapter panel | 4 pcs |
| Type of Adapter panel | LC SC FC ST MTP MPO |
| Color | Black |
| Capacity | 96 Cores |
| application | Data center cable system |
