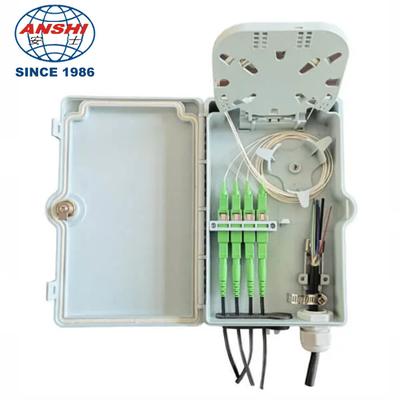

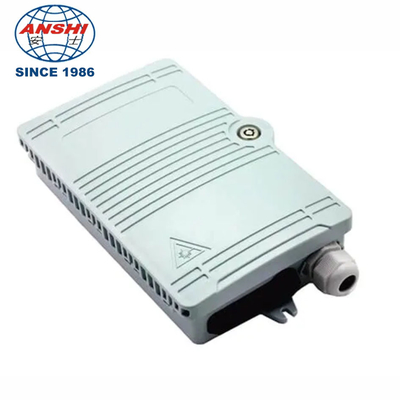

ANSHI 4 Ports Fiber Access Termination Box FTTH Outdoor Fiber Optic Terminal Box
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Fiber Optic Distribution Box | Dimension | 190*140*90mm |
|---|---|---|---|
| Capability | 4 Port | Application | FTTH |
| Material | ABS | Color | Gray |
| Packing | 1 Pcs /box | ||
| Highlight | FTTH Outdoor Fiber Optic Terminal Box,ANSHI Fiber Access Termination Box,4 Ports Fiber Access Termination Box |
||
Product Description
FTTH Waterproof 4 Ports SC/APC Fibre Optics Terminal Distribution Box
Product Description
Descriptions:
- Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
- The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
- AS-ODF-FDB-4B is designed for outdoor using with 1 port for round cable and 4 ports for FTTH drop cable.
- Its waterproof grade can match IP65.
Feature:
- Light weight, small size, save cost.
- Up to 4 FTTH drops.
- Suitable for wall and pole mountable.
- User familiar industry interface, using high impact plastic.
- Can accommodate 1X4 optical fiber splitter.
- 4 pcs of adapter port is fit with SC simplex adapter or LC duplex adapter.
- 1 inlet capacity for outdoor cable and 4 outlet ports for ftth drop cable.

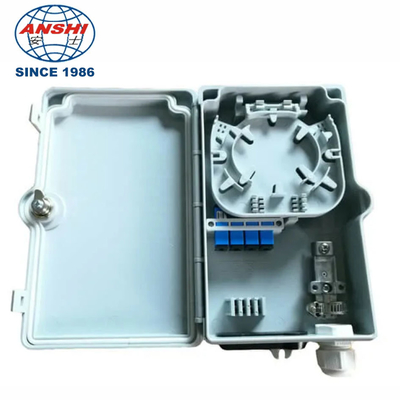

- Space saving: Double-layer design for easier installation and maintenances:
- Lower layer for splitters and over length fiber storage.
- Upper layer for splicing, cross-connecting and fiber distribution.
- Cable fixing units provided for fixing the outdoor optical cable.
- Protection Level: IP65
- Accommodates both cable glands as well as tie-wraps
- Lock provided for extra security
Application
- Passive Fiber Optic System;
- Widely used in FTTX systems;
- Telecom project
- Fiber optic termination, indoor and outdoor application;
- CATV networks
- LAN
- WAN
- Metro
- Data communications networks
- Telecommunication networks;
- FTTD (Fiber To The Desk) interfaces.
| Item | AS-ODF-FDB-4B |
| Dimension | 190X140X90mm |
| Net Weight | 0.35kg |
| Splice tray | 1pcs |
| Adapter ports | 4 port |
| Splitter | Mini Tube PLC Splitter 1X4 |
| Splitter no. | max. 1pcs |
| Color | Gray |
| Working Temperature | -25°C ~ 60°C (5 to 95% relative humidity) |
