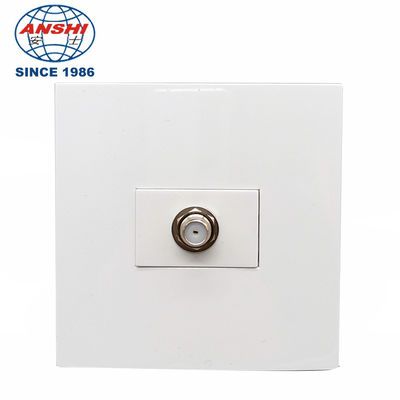

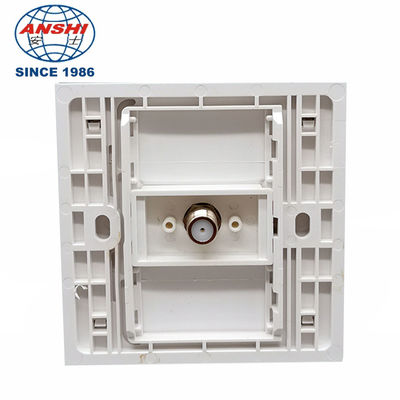

ANSHI 1 Port 86 Type Single Port RF Wall Face Plate

  • ANSHI 1 Port 86 Type Single Port RF Wall Face Plate
  • ANSHI 1 Port 86 Type Single Port RF Wall Face Plate
Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification SGS, DAS, ISO9001
Model Number XL-4015TV-1
Minimum Order Quantity can discuss
Price Negotiable

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Port 1Port SIZE 86 * 86
Material ABS Or PC OEM Yes
Color White Or Ivory
Highlight

RF Wall Face Plate

,

86 Type Face Plate

,

1Port Face Plate
Leave a Message
Product Description

ANSHI Face Plate 1Port 86 Type Single Port RF Wall Face Plate


Product Description



1. Aluminium
2. High return loss and superior power capability
3. O ring sealed watertight
4. 75Ohms


Port terminators provide a 75 Ohm match to unused KS entry ports
Wide bandwidth for use in broadband systems
Standard pin length accommodates all amplifer and multitap mating requirements
High return loss for excellent digital signal performance
Superior power capability provides a minimum of 20 Amps current capacity on all connectors and adapters
O-ring sealed for maximum environmental protection, eliminating water migration




Impedance: 75 Ω
Temperature Range: -55~+155 oC
Frequency Range: DC-1GHz
Insulation resistance ≥ 10000 M Ω
Average power >20A
connector type 5/8 KS
Return loss 30db
Durability(mating) ≥500 (cycles)
Body: brass and brass plate



ANSHI 1 Port 86 Type Single Port RF Wall Face Plate 0ANSHI 1 Port 86 Type Single Port RF Wall Face Plate 1
