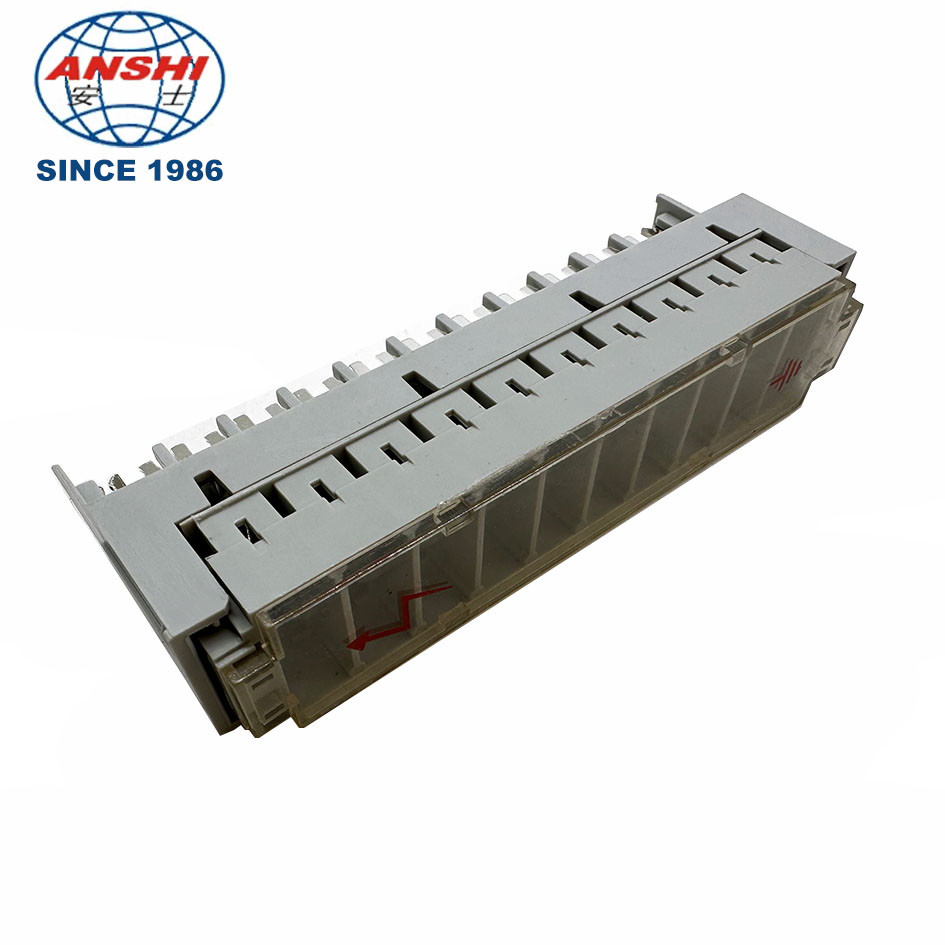

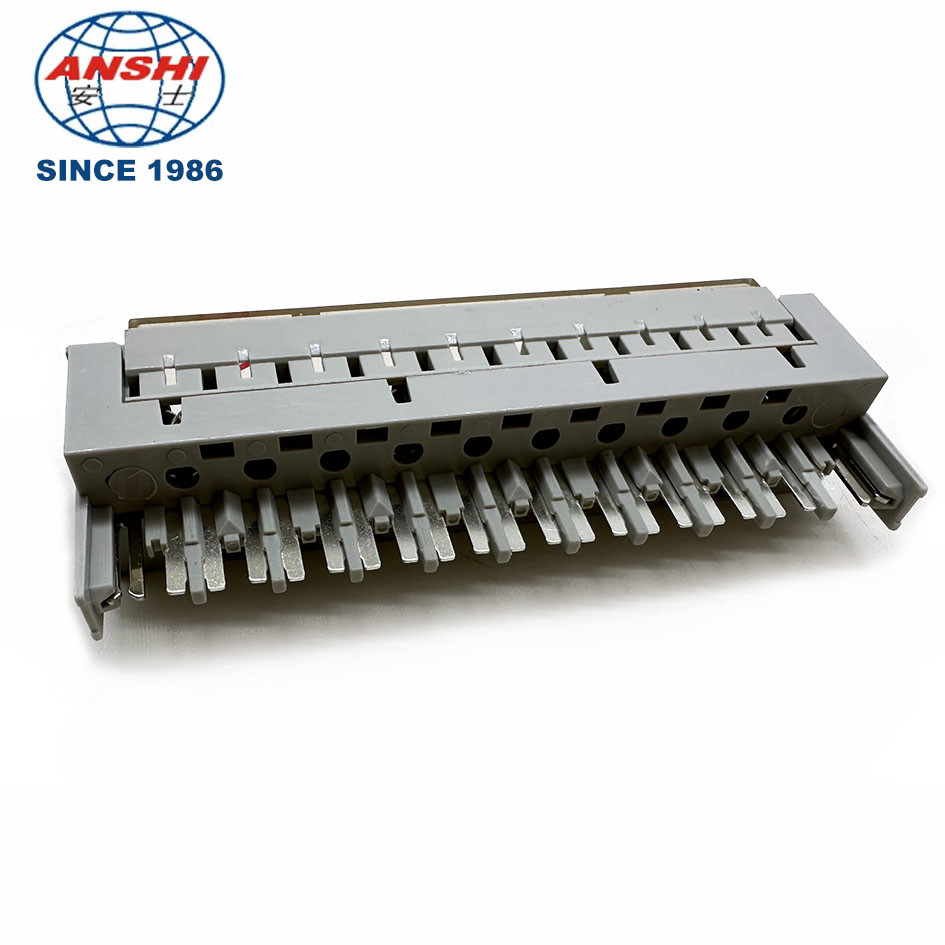

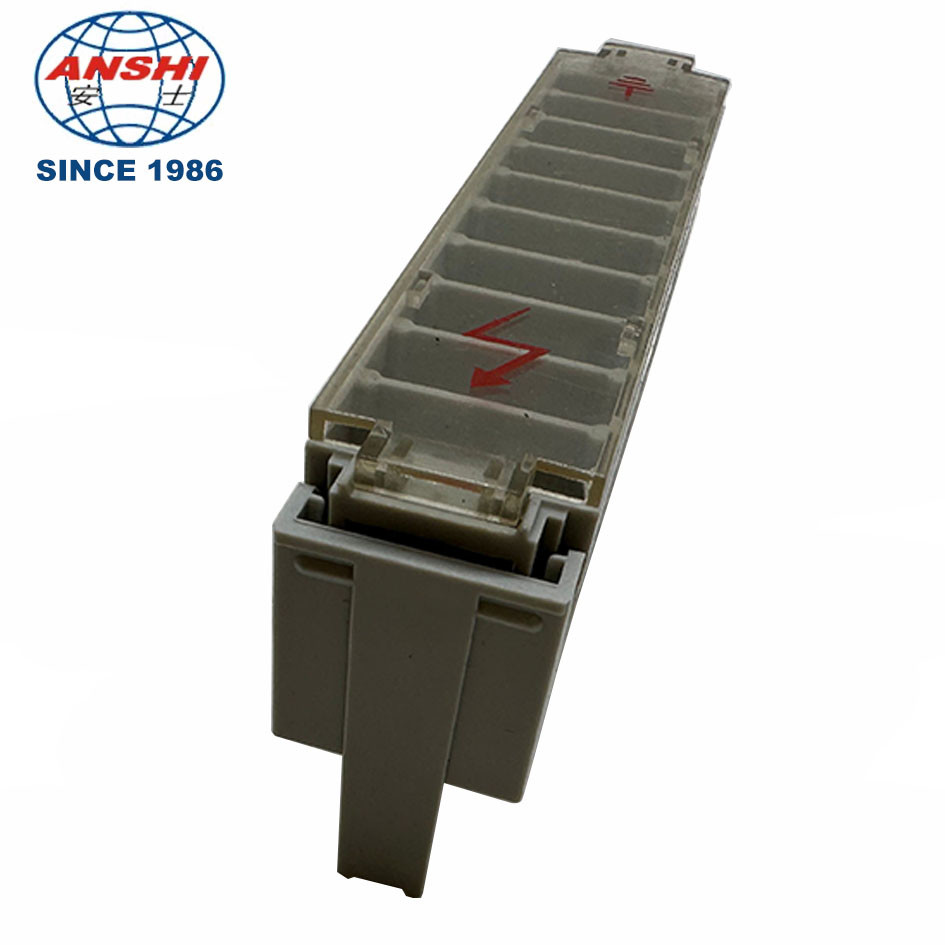

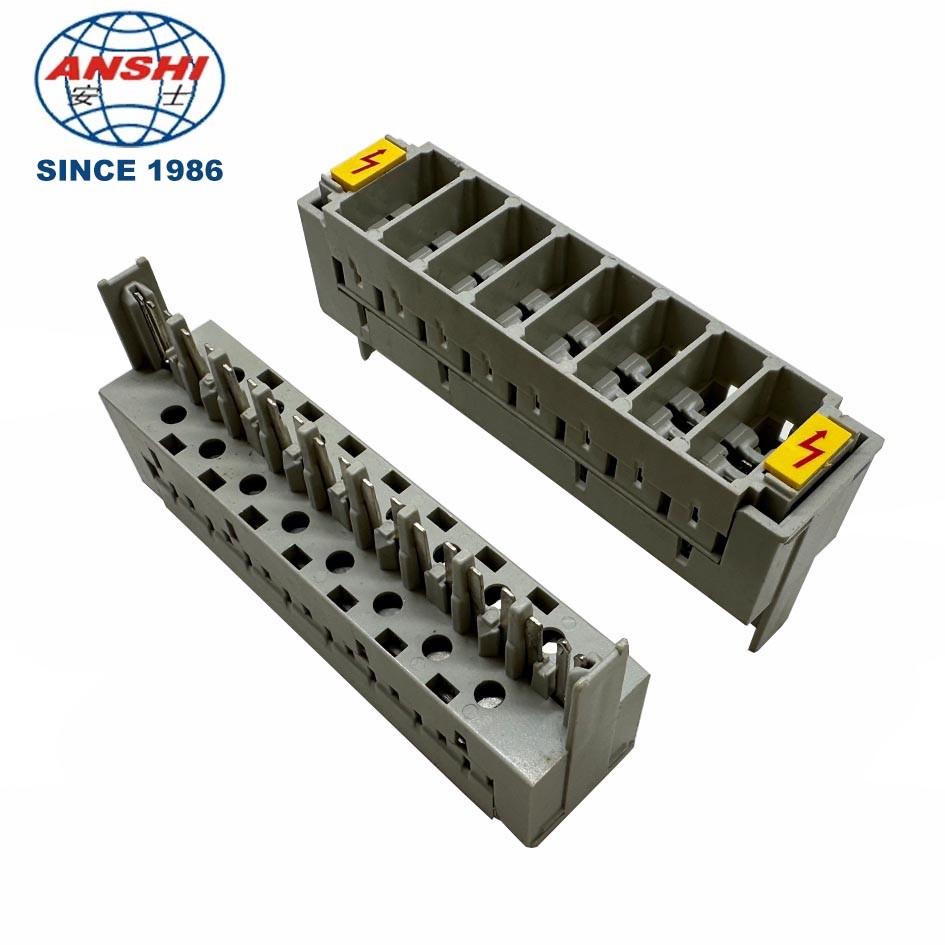

8 Pairs LSA Plus Module 2 Pole Gas Tube Arrester GDT Magazine
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Material||Anti-burn ABS Or PBT||Color||Grey|
|Specification||8 Pairs Or 10 Pairs||Flame Retardance||UL94-V0|
|Contact Pin||Silver-plated Phosphor Bronze||Markings||Dust Cover Or Lighting Mark Cover|
LSA Plus Module 2 Pole,
phosphor bronze LSA Plus Module,
LSA Plus Module 8 Pairs
Overvoltage Protection Basic Protection 2 Pole Gas Tube arrestor GDT Magazine For LSA Plus Module
1, Material: PBT or ABS(UL94V-0)
2, Contact: Phosphor Bronze
3, Silver Plating: 0.5 um1.25 um5 um
4, Can be installed on krone type terminal block
5, With 2pole arrester or 3 pole arrester,can be with duct cover.
6. 8 Pair protection magazine,10 Pair protection magazine,krone single pair protector,5pin lightning protector,various type on option.
7, 100% test passed,arrester voltage usually for 230V,it can be on your requirement.
- Plastic material: ABS&PBT(UL94V-0)
- Contact material: Phosphor Bronze.
- Surface Plating Silver(0.5um-5um)
- Earth bar: Phosphor Bronze.
- Surface Plating nickel
- Electrical Performance:
- Insulation Resistance: R≥1000M Ohm
- Contact Resistance: R≤5m ohm
- Dielectric Strength: 1200V DC 60s can't spark over and haven't fly arc
- The 10pair LSA magazine can be offerred with arrester or unequiped.Gas Discharge Arrester available for 2pole and 3pole types.Usually with voltage 230v arrester(GDT).Each magazine is completely tested before sending to our clients.This protection magazine is used together with the LSA krone module 10pair and 8pair .Meantime there is a plastic cover to plug into the top for avoid any duct affaction.
- The module housing material we mainly offer with imported GE PBT and ABS(UL94V-0).Both material we will use new rall material but not recycling material(first recycling or second recycling).So we can offer good performance modules.You can get very cheap products in the market but they are mainly made of such recycling material PBT or ABS.
High speed LAN and WAN systems,used to protect the telecom equipment from damage of lightning,over voltage and over currence.
|Mechanical Performance||Plastic material: ABS&PBT(UL94V-0)|
|Contact material: Phosphor Bronze.|
|Surface Plating Silver(0.5um-5um)|
|Earth bar: Phosphor Bronze.Surface Plating nickel|
|Environment Characteristic||Storage Tempreture: 40 to 70°C|
|Operating Temperature : 10 to 60°C|
|Relative Humidity: 95%, noncondition|
|Electrical Performance||Insulation resistance: 1000 Mohms minimum|
|Contact resistance :5 mohms maximum|
|Dielectric intensity: 1200V DC 60s can't spark over and haven't fly arc
