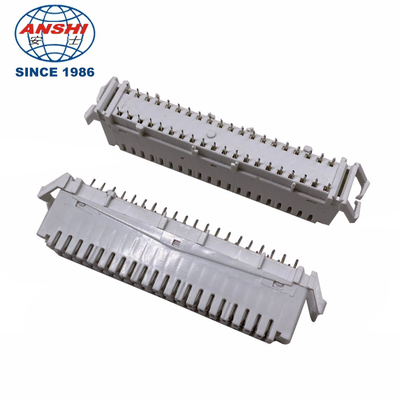

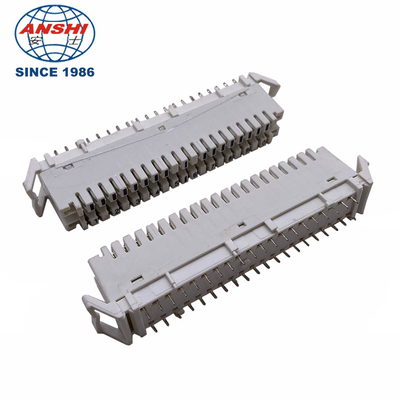

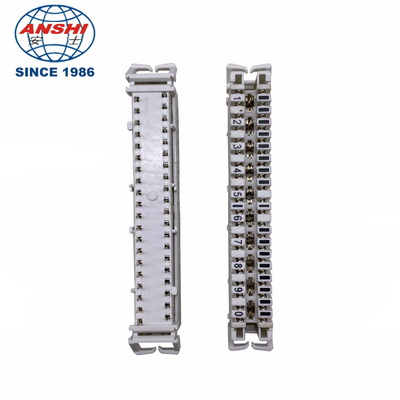

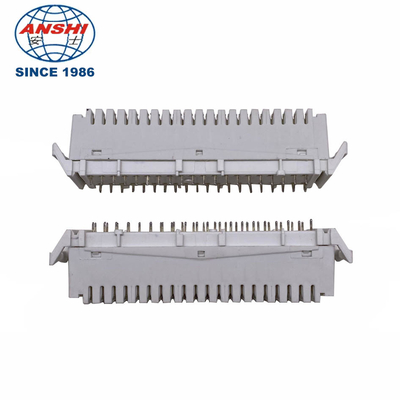

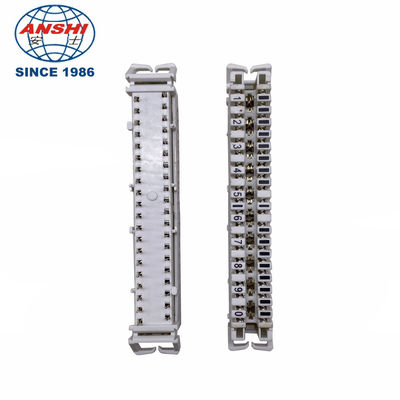

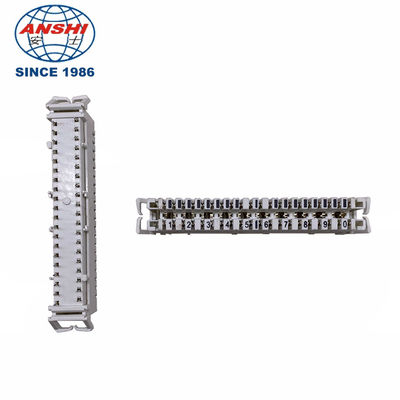

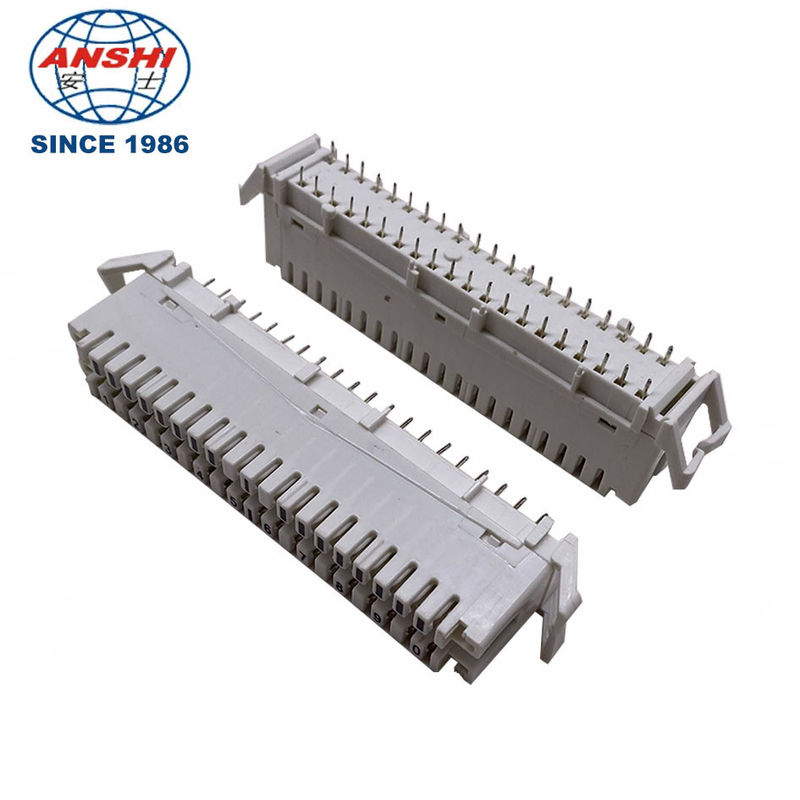

10 Pairs LSA PLUS Krone Connection Module PCB Type
| Place of Origin | ZHEJIANG, CHINA |
|---|---|
| Brand Name | ANSHI |
| Certification | ISO9001, CNACL, SGS, DAS |
| Model Number | XL-011L-MK |
| Document | 10 pairs pcb type module.pdf |
| Minimum Order Quantity | 100 pcs |
| Price | $5~$9 |
| Packaging Details | CARTON:53*24*24CM |
| Payment Terms | T/T |
| Supply Ability | 10000 pcs per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | ABS Or PBT | Color | White/Grey/Green |
|---|---|---|---|
| Contact | Iron, Brass Or Bronze | Type | PCB Type |
| Installation | Back&profile Mount | Application | Cabling |
| Highlight | Lsa Plus Krone Connection Module,20 Pole Lsa Plus Connection Module,Pcb Type Lsa Plus Connection Module |
||
Product Description
10 Pairs LSA Plus Krone Connection Module PCB Type
Product Description
PCB Type Specifications
- LSA-PLUS disconnection module 2/10
- Features PCB and screw block
- Internal wire diameter: 0.4mm-0.65mm
- Color: Grey base with white body or White or Red
Material Composition
- Plastic Parts: PBT-V0 UL94 or ABS
- Contacts Pin: 0.5mm Phosphor bronze with silver-plated
- Silver-plated: as per client request
Technical Specifications
| Mechanical Performance | |
|---|---|
| Insertion force | 40~75N |
| Pull Out Force | F≥25N(axial) F≥7.5N(radial) |
| IDC Life | 200 times (20-26 AWG Solid wire) minimum |
| Copper Conductor Diameter | Φ0.4~Φ0.8(mm) |
| Environment Characteristic | |
| Storage Temperature | -40 to 70°C |
| Operating Temperature | -10 to 60°C |
| Relative Humidity | 95%, non-condensing |
| Electrical Performance | |
| Insulation resistance | 1000 Mohms minimum |
| Contact resistance | 7 mohms maximum |
| Dielectric intensity | AC 1000 Vrms 50Hz or 60Hz in 60s |
