90 Degree Network RJ45 Keystone Jack Cat6A UTP 8P8C With Gold Plating

90 Degree Network RJ45 Keystone Jack Cat6A UTP 8P8C With Gold Plating

  • 90 Degree Network RJ45 Keystone Jack Cat6A UTP 8P8C With Gold Plating
  • 90 Degree Network RJ45 Keystone Jack Cat6A UTP 8P8C With Gold Plating
  • 90 Degree Network RJ45 Keystone Jack Cat6A UTP 8P8C With Gold Plating
90 Degree Network RJ45 Keystone Jack Cat6A UTP 8P8C With Gold Plating
Product Details:
Place of Origin: ZHEJIANG, CHINA
Brand Name: ANSHI
Certification: SGS, ISO9001, DAS
Model Number: XL-4011B-6A
Payment & Shipping Terms:
Minimum Order Quantity: Can discuss
Price: Negotiable
Supply Ability: 30000 Pieces per day
Contact Now
Detailed Product Description
Contact: Phosphor Bronze Plating: Gold Plating
Dimension: 8P8C Color: Can Be Customized
Category: CAT6A UTP Material: ABS Or PC
High Light:

Network RJ45 Keystone Jack

,

Gold Plating RJ45 Keystone Jack

,

90 Degree Cat6a Keystone Jack

Network RJ45 Keystone Jack 90 Degree CAT6A Keystone Jack



Electrical
Voltage Rating : AC 125V
Current Rating : 1.5 AMPS
Insulation Resistance: 500MΩ Min
Withstand Voltage: DC 1000V RMS 50-60Hz Min
Contact Resistange: 20MΩ Max
Mechanical
Insertion Force: 2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N
Retention Strength: 70N between jack and plaug;60N between wire and IDC
Durability: Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini
Wire: AWG 24-26
Material
Housing: PC(UL94V-0);ABS(UL94V-0);PC/ABS(UL94V-0)
IDC Hosing: PC(UL94V-0);PBT(UL94V-0)
Spring Wire: T=0.35mm phosphor bronze alloy selective gold
0.45 dia phosphor bronze gold plating over nickel
IDC Contact : Phosphor bronze;Nickel plating
Shielding: T=0.25mm copper alloy with tin plated gold
Plating : 3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch
Working Environment
Temperature: -10°c-60°c
Humidity: 10-90%

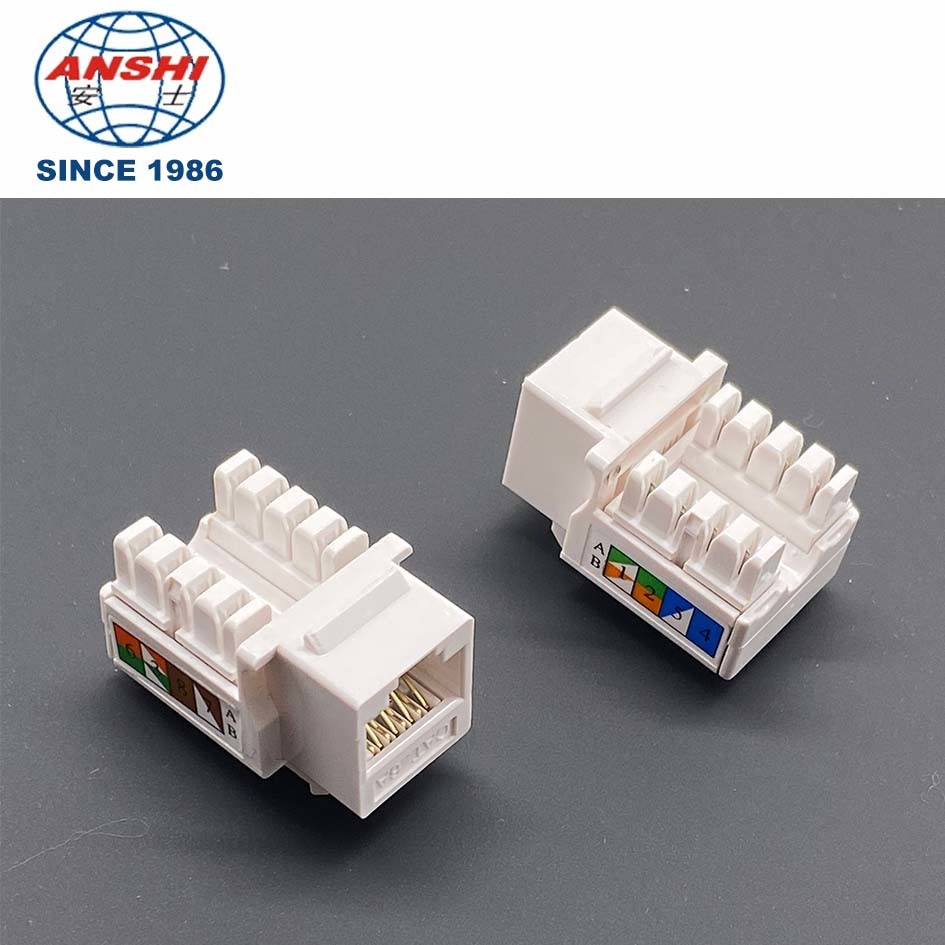

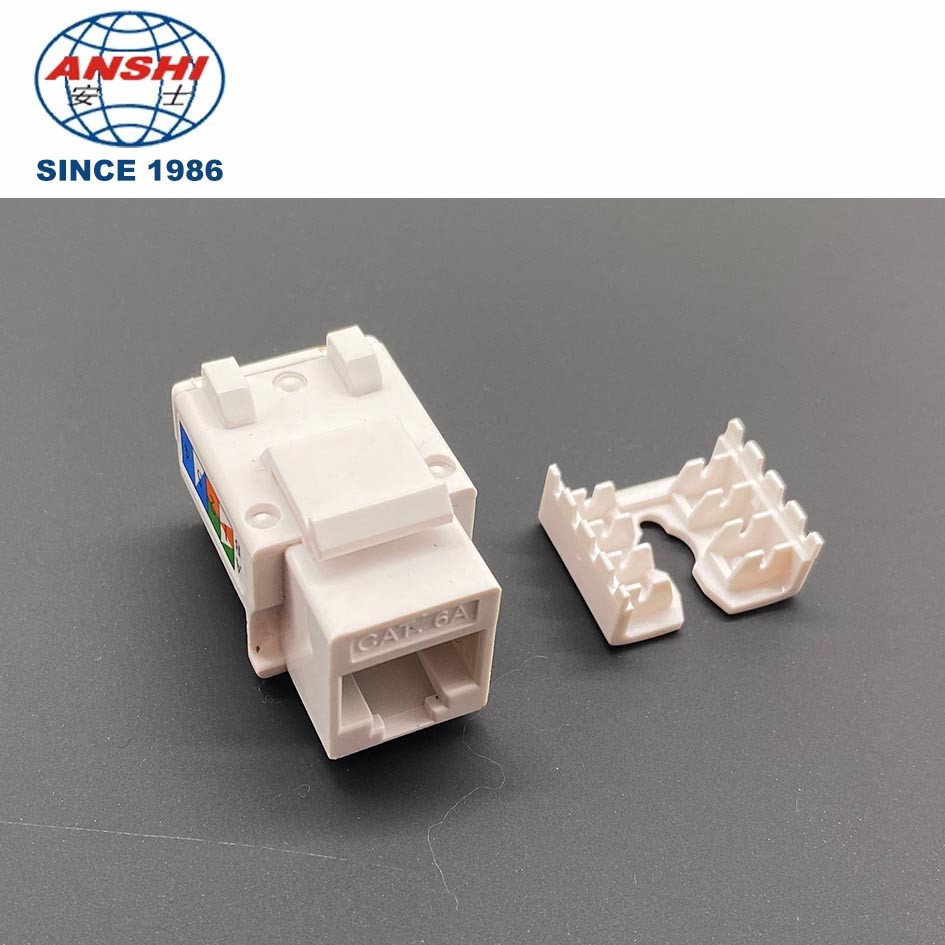

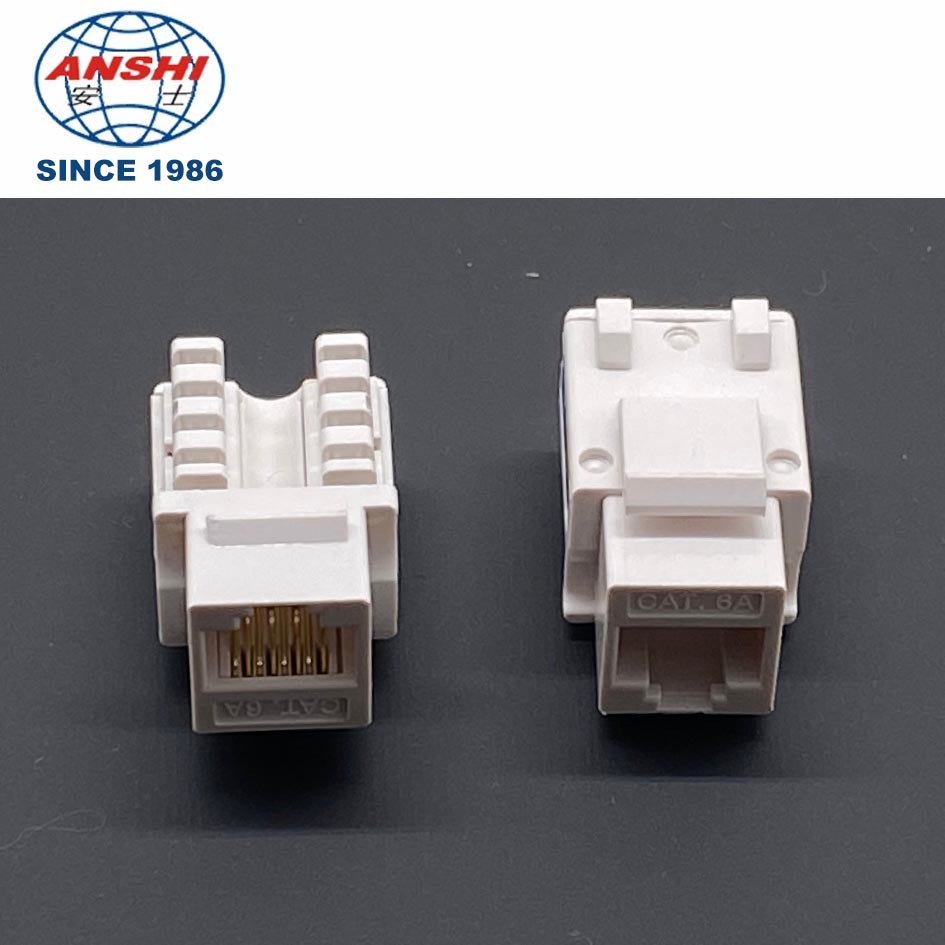

90 Degree Network RJ45 Keystone Jack Cat6A UTP 8P8C With Gold Plating 090 Degree Network RJ45 Keystone Jack Cat6A UTP 8P8C With Gold Plating 1
