PCB PPT MDF Main Distribution Frame Rack Mount For Telecommunication

  • PCB PPT MDF Main Distribution Frame Rack Mount For Telecommunication
  • PCB PPT MDF Main Distribution Frame Rack Mount For Telecommunication
  • PCB PPT MDF Main Distribution Frame Rack Mount For Telecommunication
  • PCB PPT MDF Main Distribution Frame Rack Mount For Telecommunication
  • PCB PPT MDF Main Distribution Frame Rack Mount For Telecommunication
Place of Origin China
Brand Name ANSHI
Certification ROSH, ISO9001
Model Number AS-MDF-JPX01-U
Minimum Order Quantity 100
Price Negotiable
Supply Ability 10000pcs per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Protector Unit For Main Distribution Frame Application Telecommunication.
Material PPT Protect Voltage And Current
Type Rack Mount Structure PCB
Highlight

PCB MDF Main Distribution Frame

,

PPT MDF Telephone Distribution Box

,

Rack Mount Telephone Main Distribution Frame
Leave a Message
Product Description

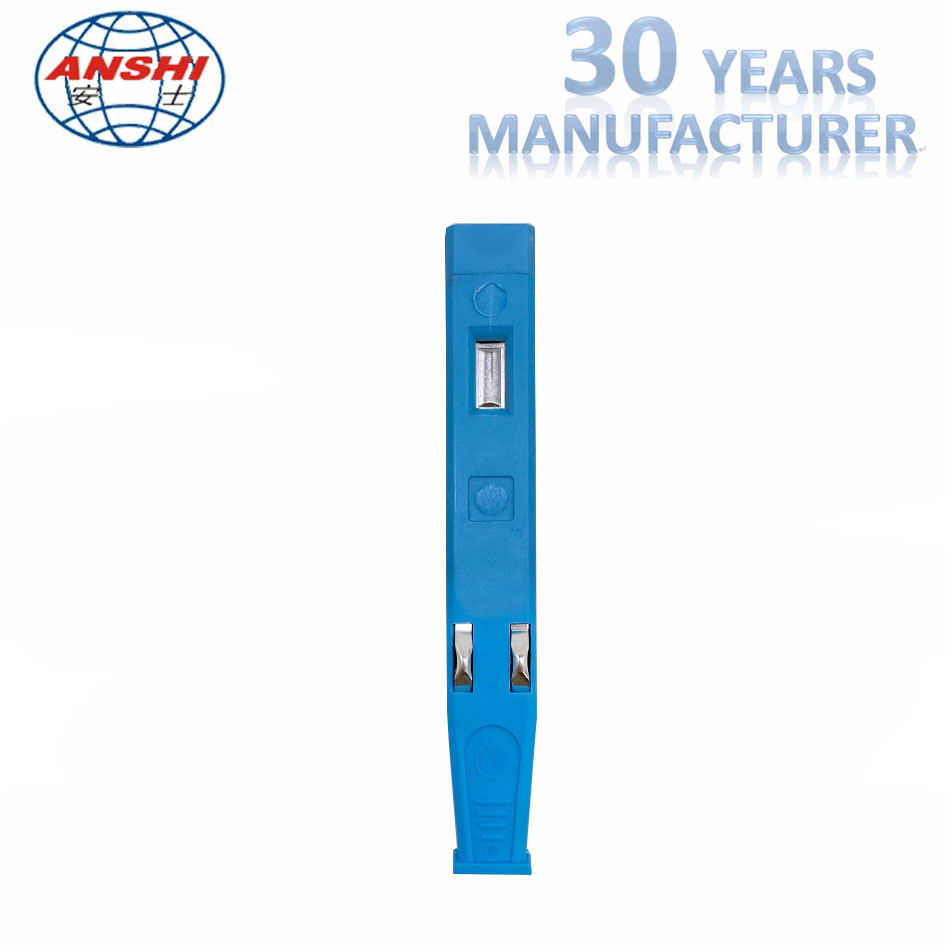

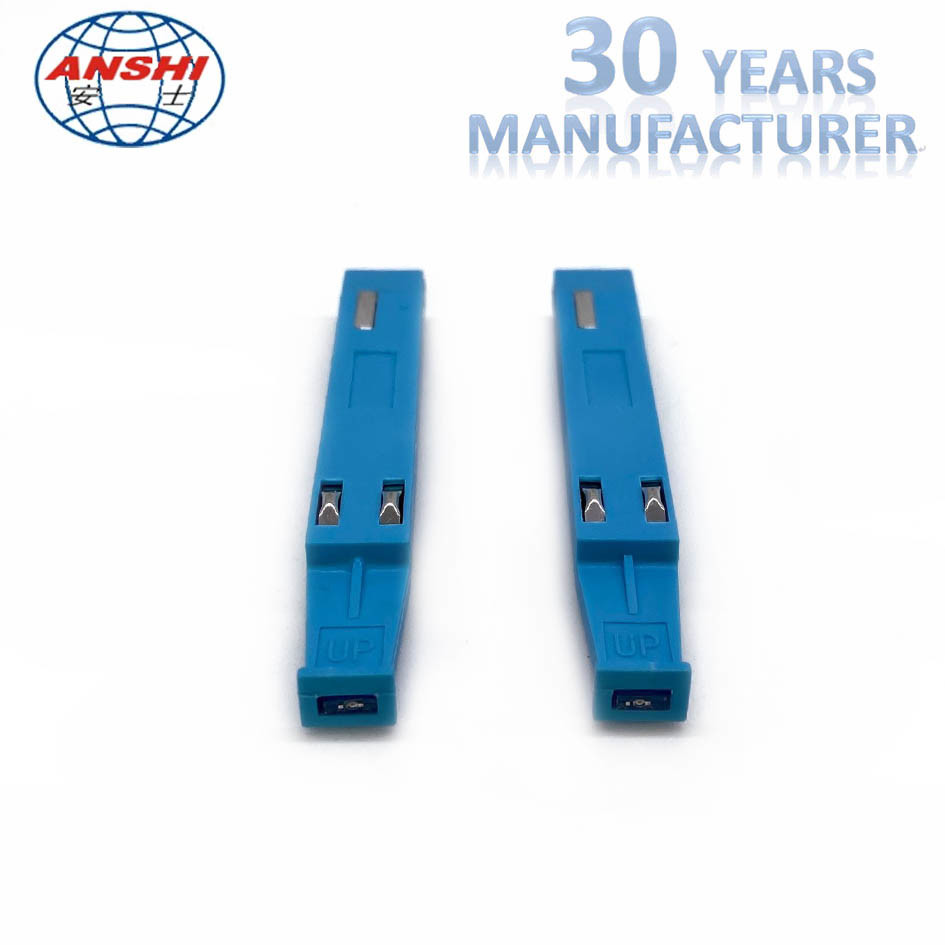

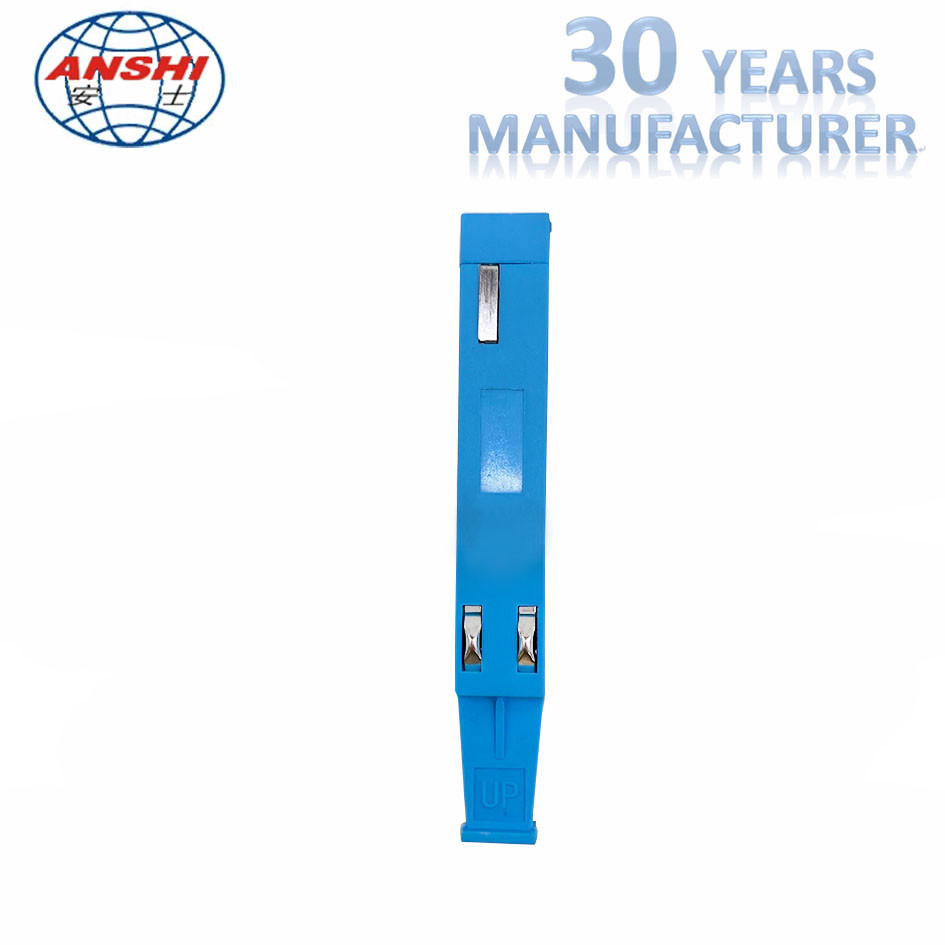

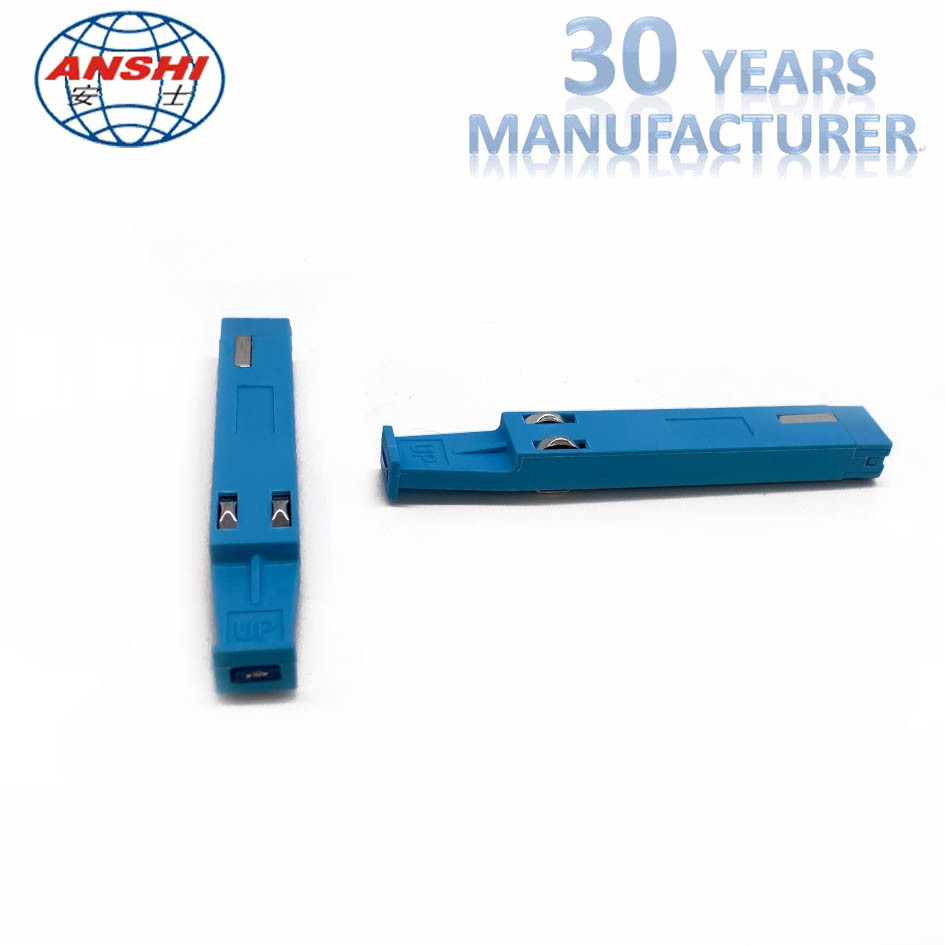

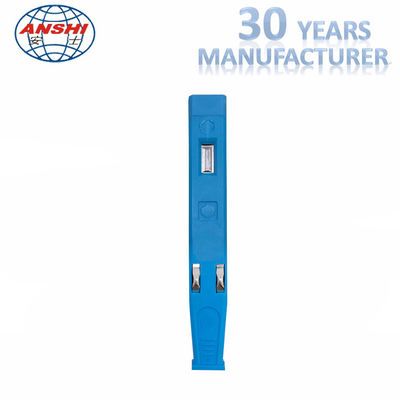

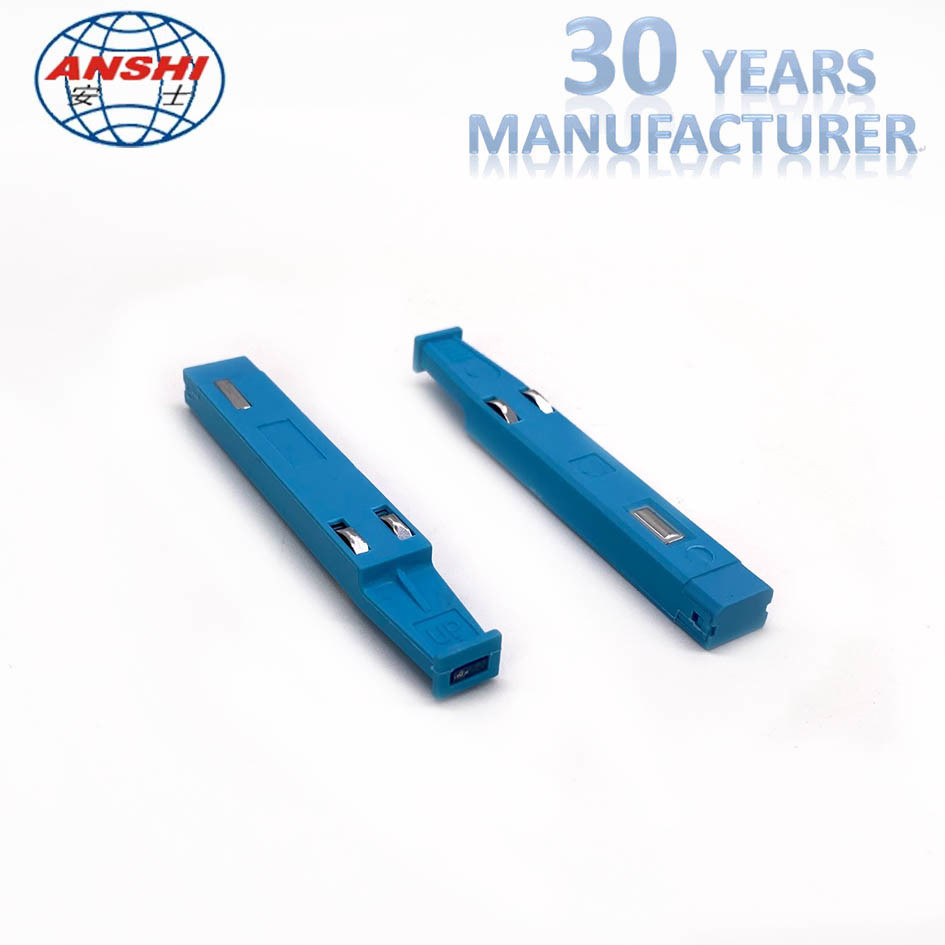

MDF Main Distribution frame 1 pair over-voltage over-current protector unit line protection unit



1. Perfect and reliable over-voltage and over-current protection with sound and light alarm, and self resulming fail protection.

2. The performance of anti-burn: PPT(UL94V-0) or anti-burn ABS(UL94V-0), combustibility achieved GB/T 5169.7-1985 standard

3. DC puncture voltage: 190-260V

4. Pulse puncture voltage: ≤800V(1KV/us voltage increasing rate)

5. Insulation resistance: 1000MΩ(between any two separable modules)

6. Normal temperature resistance: ≤22Ω(R≤2Ω(over-current protection)

7. Contact resistance: ≤3mΩ

8. Contact resistance between reeds: ≤7mΩ

9. Normal temperature current: I=falling from 500mA to 150mA t<20s

I=falling from 1A to 500mA t<1.3s

I=falling from 2A to 500mA t<0.5s

I=falling from 3A to 500mA t<0.2s

10. Sactive time: I=2.5A t<15s(220V/AC)

11. resistance to voltage: ≥1000V(AC)/1min without breakdown or arc

12. used with AS-MDF-XHW-P 100 pair MDF terminal block.
