High Speed, High Quality, Best Service
|Place of Origin:||ZHEJIANG, CHINA|
|Certification:||SGS, ISO9001, DAS|
|Minimum Order Quantity:||Negotiable|
|Supply Ability:||15000 Pieces per Week|
|Product Name:||CAT6 RJ45 Module||Tool:||Toolless|
Network CAT6A Keystone Jack,
90 Degree CAT6A RJ45 Modular Plug,
UTP RJ45 Keystone Coupler

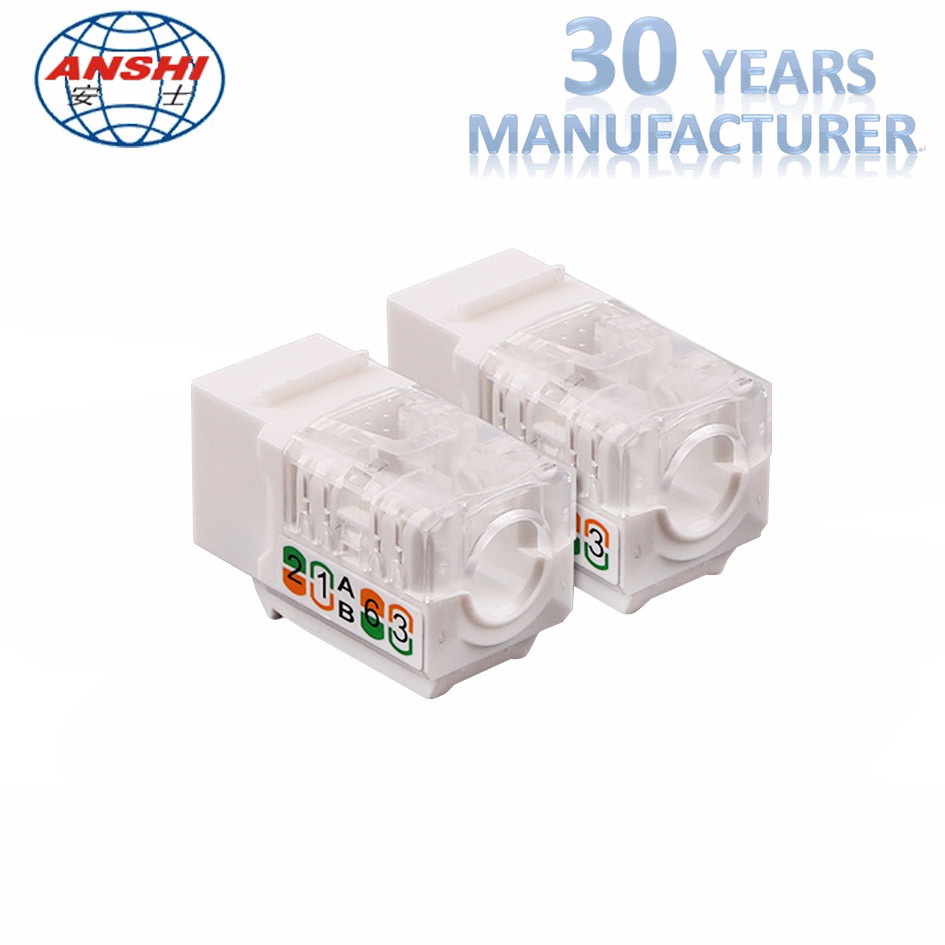

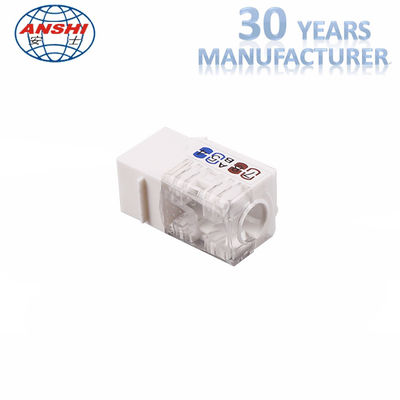

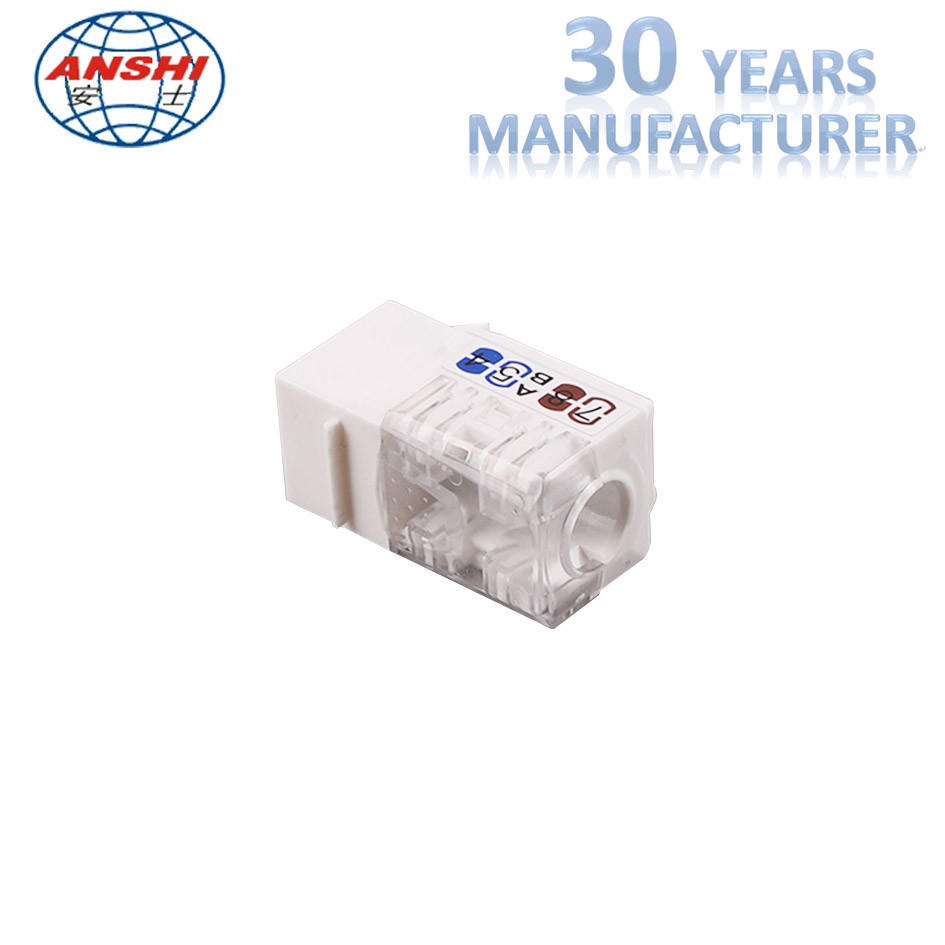

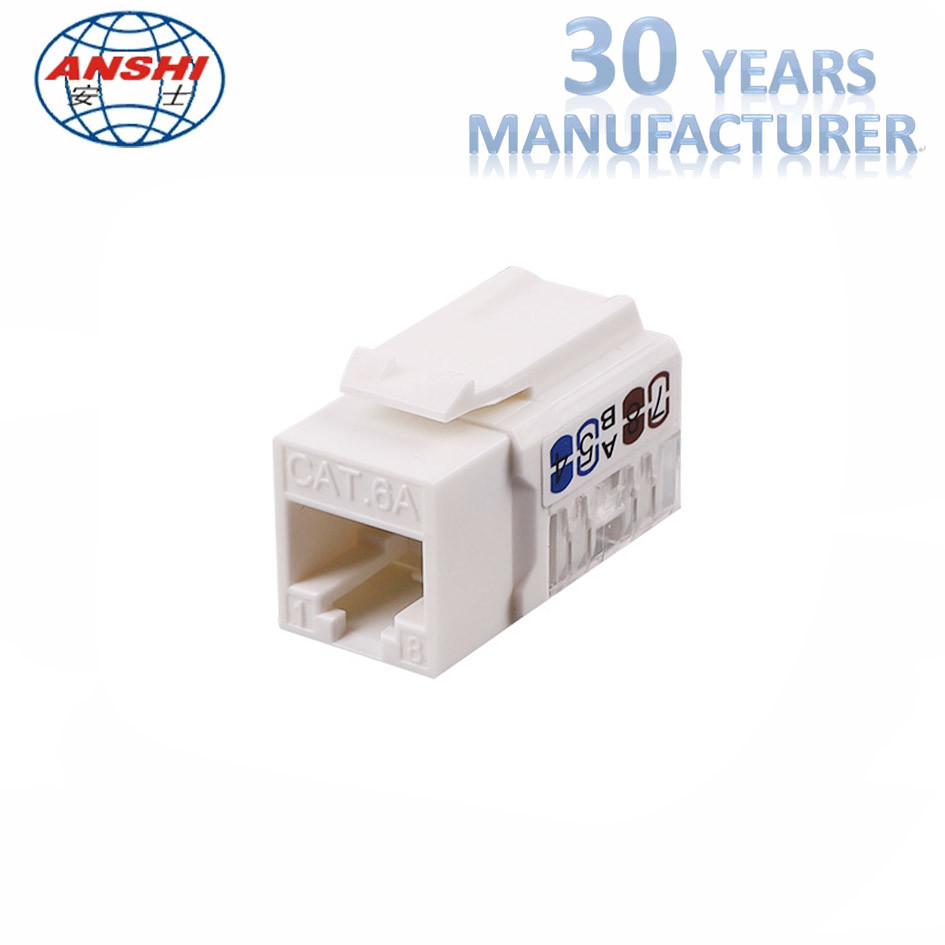

ANSHI Network CAT6 CAT6A 90 Degree UTP RJ45 Keystone Jack
§ PRODUCT FACTS
• Performance:KHA Series completely contains all performance level from Cat 5e to Cat 6A.
• Press-Fit Technology:makes the product more reliable. It also promises a much better quality
of conductivity. A more stable transmission performance is guaranteed
since there is no other medium that takes effect in between PCB and
• Patent (pending) in Taiwan & U.S.:Unique spring contact structure for improving
RL & counteracting NEXT.
1. CE, Lead-free & RoHS2 compliant.
2. Meet the ANSI/TIA-568-C.2, ISO/IEC 11801 2.2 edition and CENELEC EN 50173-1 cabling
requirements for Category 6A& Category 6A components performance.
3. Comply with requirements of ANSI/TIA–1096-A (FCC Part 68) and Level A reliability
requirements of IEC 60603-7-2 IEC 60603-7-4, and IEC 60603-7-41 for RJ45 8-way
• Voltage proof: 1000V DC or AC peak, contact-to-contact.
• Current-carrying capacity: 0.75Amps minimum
• Contact resistance: 20mohm maximum
• Insulation resistance: 500Mohm minimum at 100V DC
• Input to output resistance: 200mohm maximum
• DC resistance: 0.2ohm maximum
• Mechanical operation: 750 cycles minimum for insertion / withdrawal with modular plug
20 cycles minimum for cable re-termination
• Effectiveness of connector coupling devices: 50N (11lbf) for 60s ± 5s.
• Operation Temperature: -10℃~ 60℃
• Humidity: 10% ~ 90%RH
