Mini SC PTLC ODVA Armoured Ftth Fiber Optic Termination Box

  • Mini SC PTLC ODVA Armoured Ftth Fiber Optic Termination Box
  • Mini SC PTLC ODVA Armoured Ftth Fiber Optic Termination Box
  • Mini SC PTLC ODVA Armoured Ftth Fiber Optic Termination Box
  • Mini SC PTLC ODVA Armoured Ftth Fiber Optic Termination Box
Place of Origin China
Brand Name ANSHI
Certification ISO9001, SGS
Model Number AS-ODF-FDB-ODVA
Minimum Order Quantity 50
Price Negotiable
Delivery Time 10000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Optical Fiber Distribution Box Adapter Port Type MINI SC,H Connector (Optitap),MINI IPMPO,ODVA
Fire Retardant UL 94V-0 No. Of Fusion Max 24 Pcs
Application FTTX Enclosure Box Material Plastic
Cable Strength Member Armoured Or Non-armoured Dimensions 280x120x85mm
Highlight

armoured ftth fiber optic termination box

,

armoured ftth distribution box

,

ftth fiber optic termination box
Leave a Message
Product Description

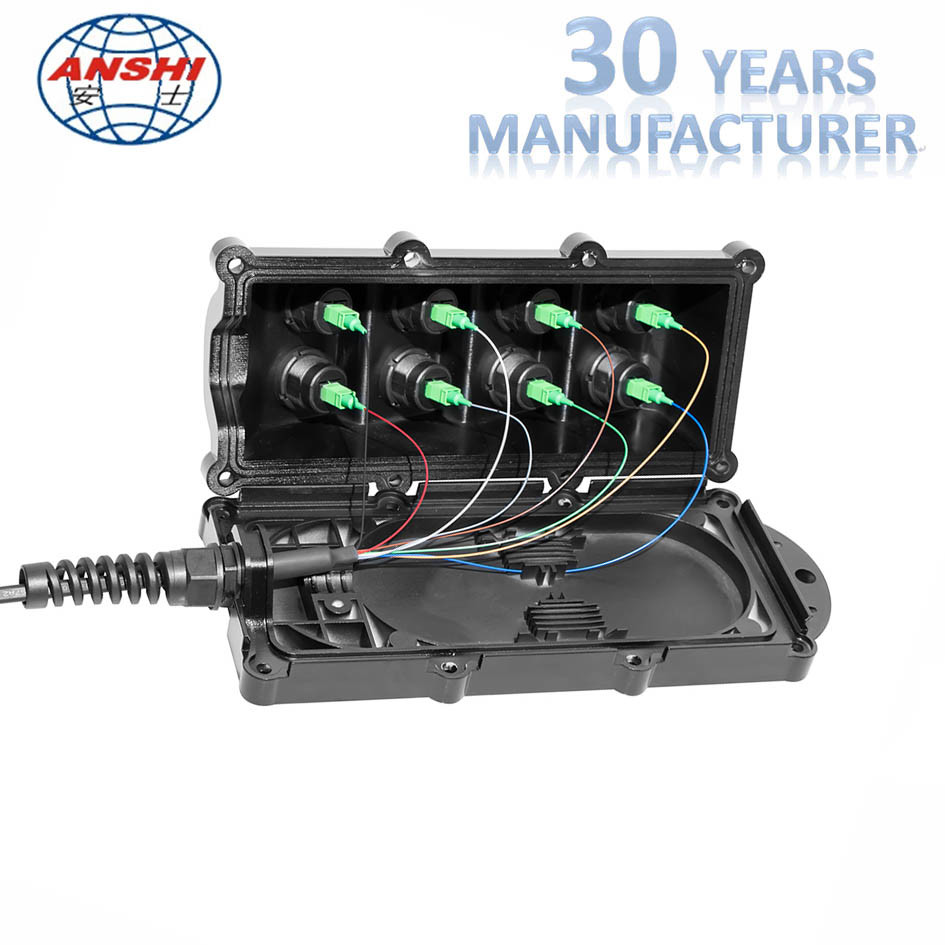

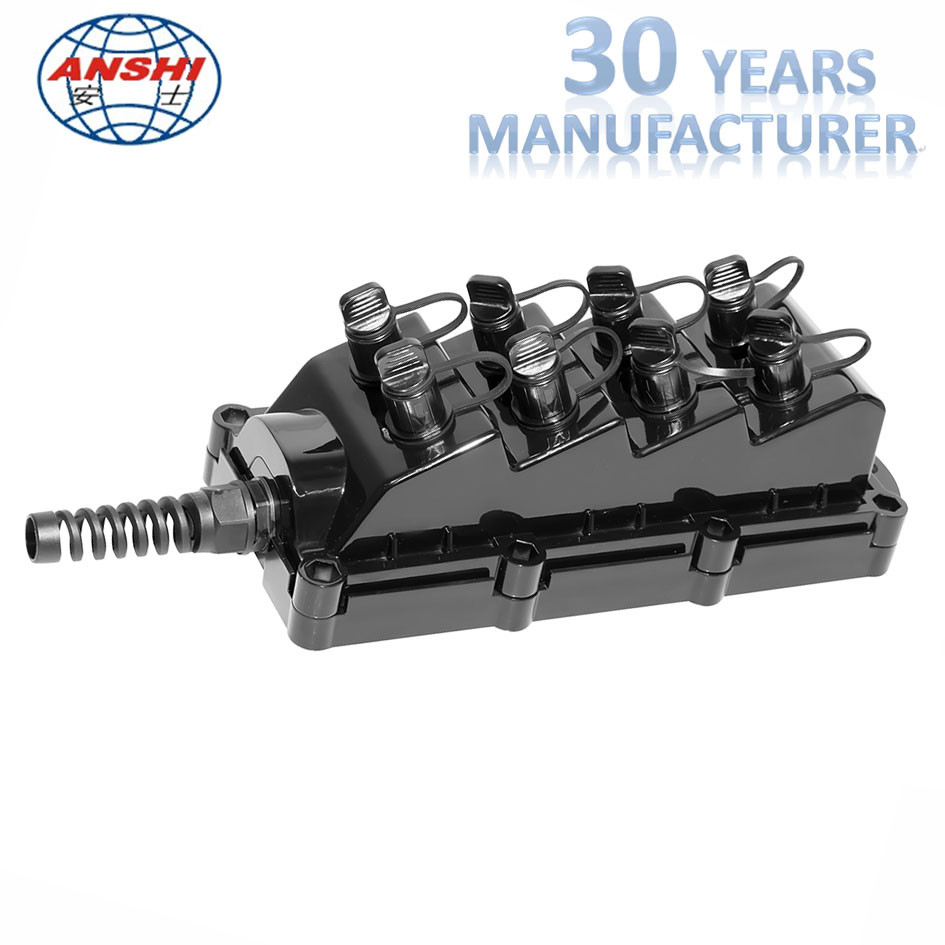

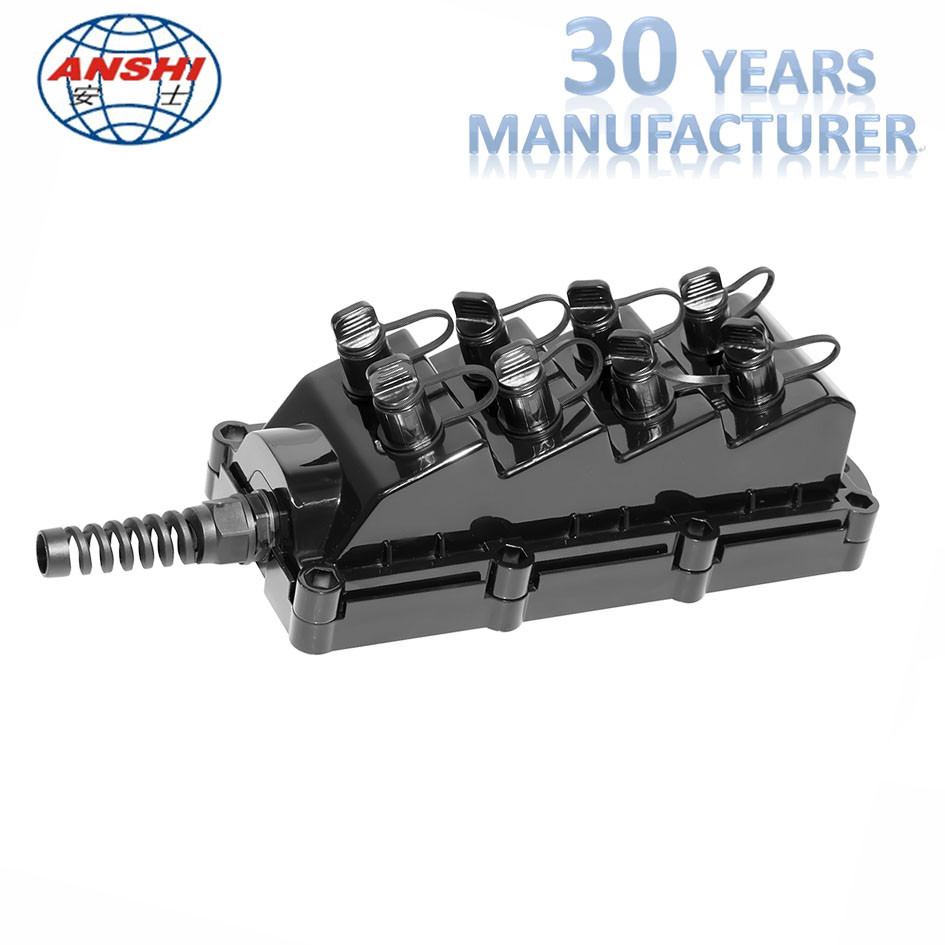

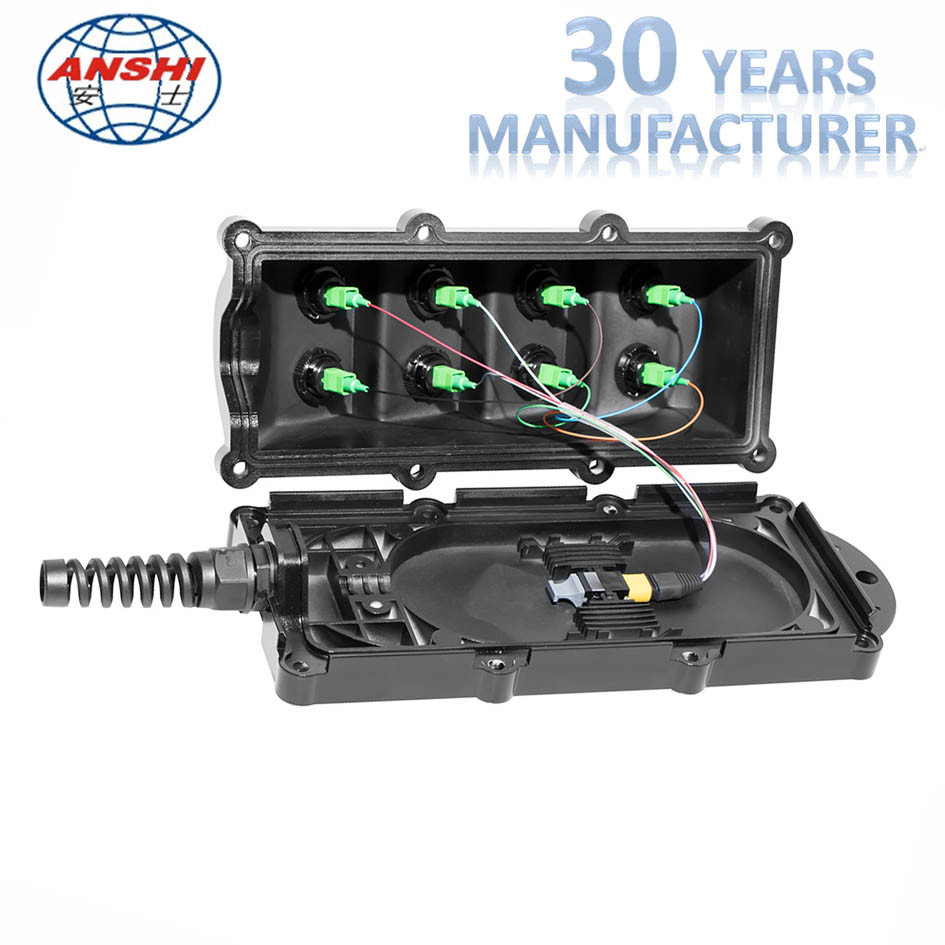

ANSHI Optical Fiber Distribution Box Mini SC PTLC ODVA Fiberhub Box



FTTX Enclosure is a new economic fiber distributed solution for outdoor use. compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.



Applications
1. FTTH field
2. FTTA field
3. Trunk cable connecting
4. Prospecting or military communication



Features
1. High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
2. Factory-sealed or field assembly.
3. IP68 water and dust protection
4. Strong enough: working under 1200N pulling force long term.
5. From 2 to 12 ports for single or multifiber harsh connectors.
6. Available with PLC or splice sleeve for fiber divide .
7. IP68 waterproof rating.
8. Wall-mounting, aerial installation or holding pole installation.
9. Decreased angle surface and height make sure no connector interfering when operating.
10. Meet IEC 61753-1 standard.
11. Cost effective: save 40% operating time.



Configuration

Standard
Optional
Input Hole
PG13.5
MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized
Output Hole
MINI SC,H connector
MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized
Extend Hole
Closed
MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized





Mini SC PTLC ODVA Armoured Ftth Fiber Optic Termination Box 0Mini SC PTLC ODVA Armoured Ftth Fiber Optic Termination Box 1
