Cat5e CAT6 CAT6A CAT7 RJ45 Toolless Shielded STP Keystone Jack

Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification SGS, ISO9001
Model Number AS-KEY-F7
Minimum Order Quantity Negotiable
Price Negotiable
Supply Ability 15000 Pieces per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name RJ45 Keystone Jack Port RJ45
Plating Gold Material Metal
Category CAT5e / CAT6 / CAT6A /CAT7 Install Straight Through

Shielded STP Keystone Jack


CAT7 STP Keystone Jack


CAT6A RJ45 Toolless Keystone Jack

Leave a Message
Product Description

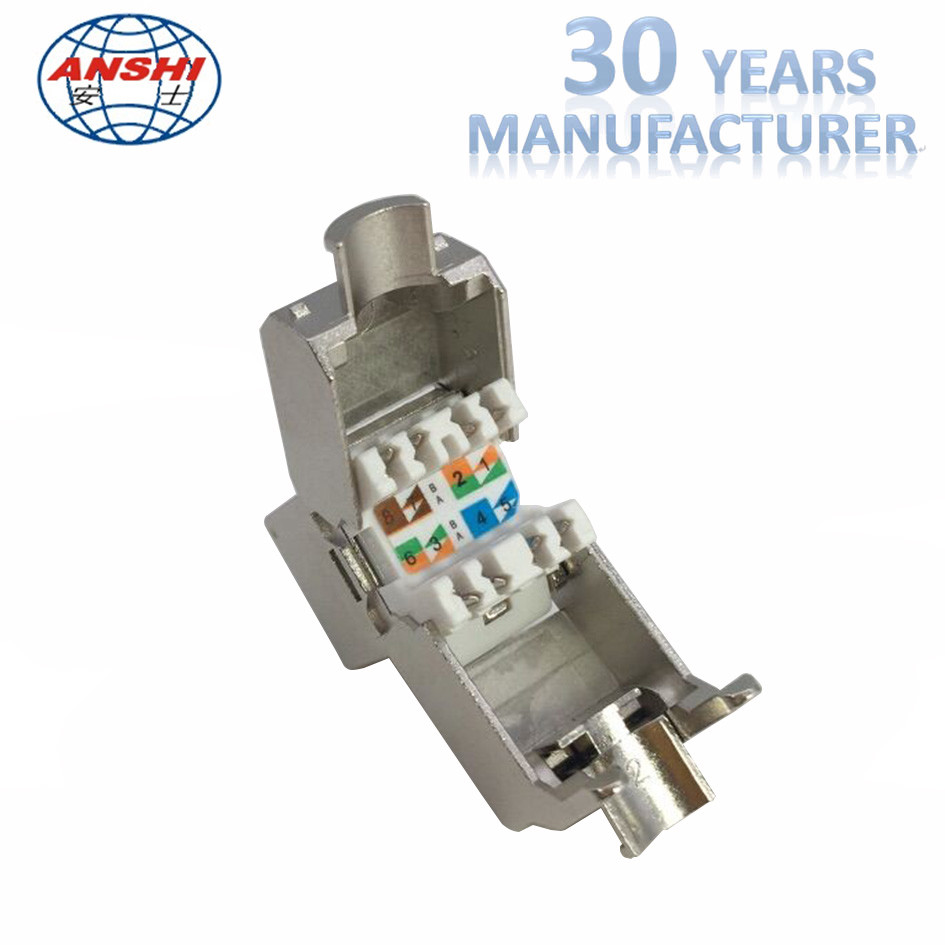

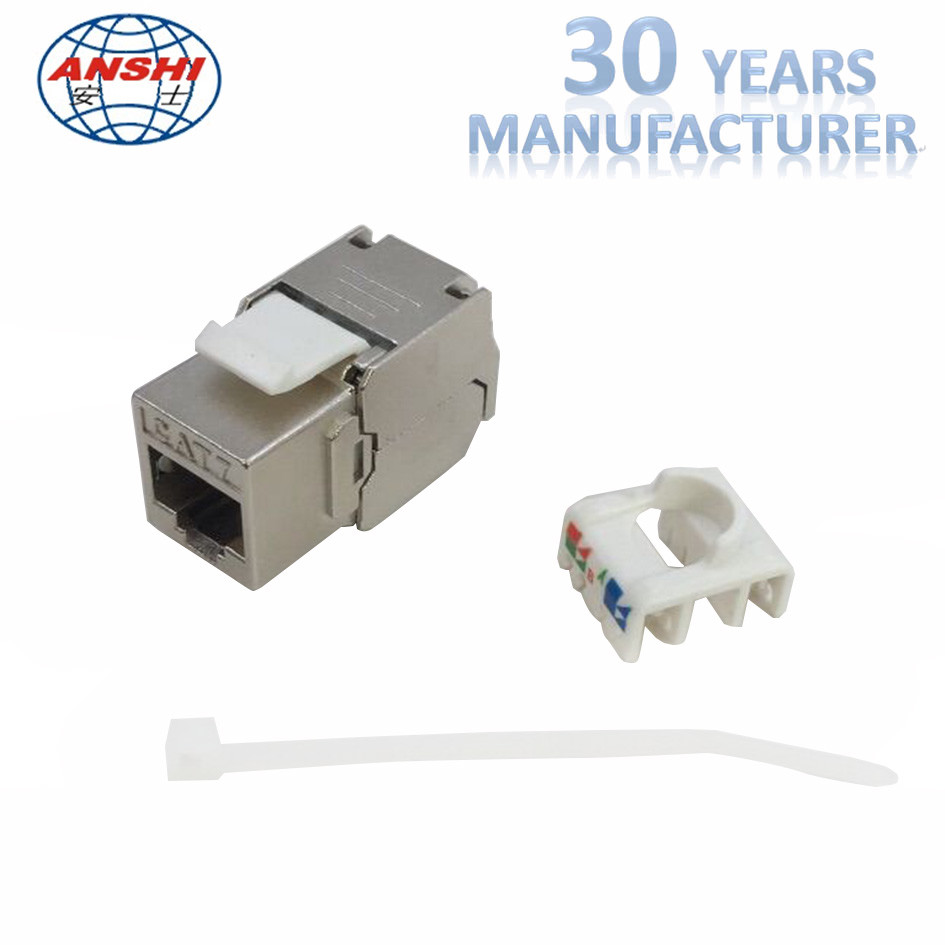

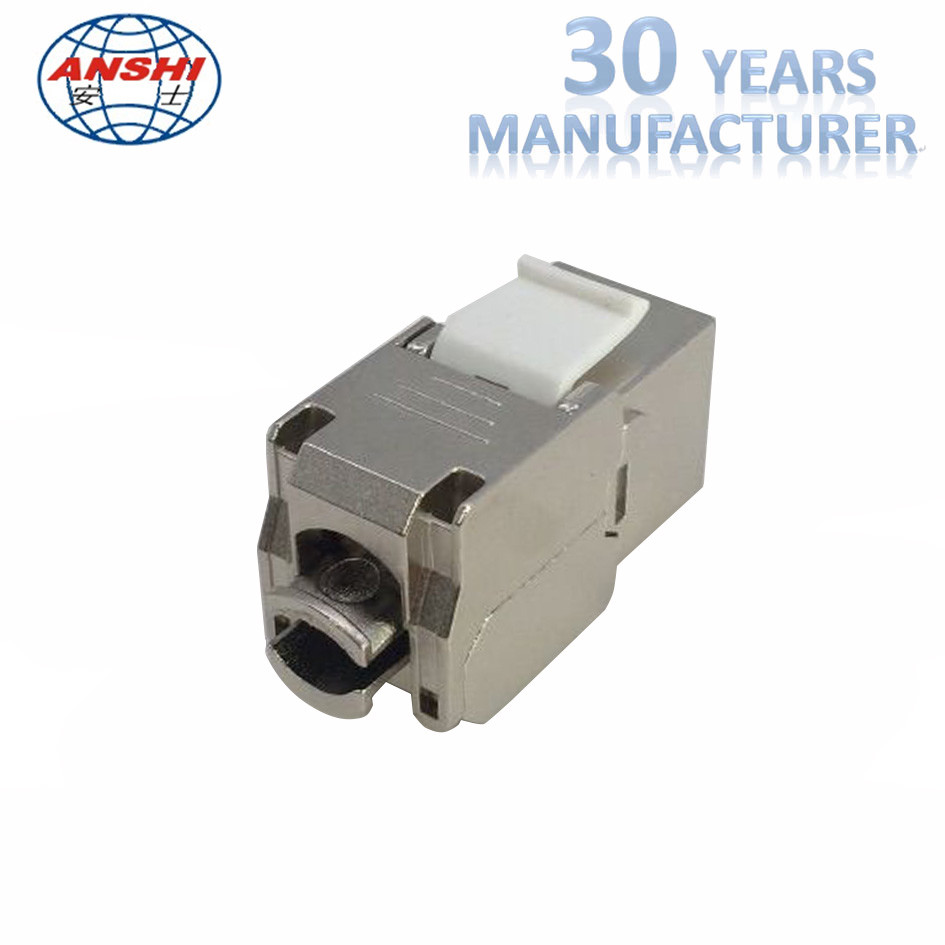

Cat5e CAT6 CAT6A CAT7 RJ45 180 degree Toolless Shielded STP Zinc Alloy Keystone Jack



Electrinic Voltage Rating :125 VAC RMS
Current Rating : 1.5AMP
Contact Resistance:110 Milliohs MAX.
Insulation Resistance:1 000 megohms MIN 500 VDC
Dielectric Strength :750 VAC RMS 60Hz ,1 MIN
Environment Storge: -40~ 85°c
Operation: 0~70°c
Machanical Housing Material: PBT-UL90V-0
Panel Fram: Carbon Steel, Powder Coating in black color
Contact Material: PC-UL90V-0
Contact: Phosphor Bronze with Nickel Plating
RJ45 Jack:IFE:750 times MIN.
IDC Life :200 times MIN.
Wire:AWG 24-26
Tia Cat.5e Perm Link Test: Worst Pair NEXT Margin ≥3dB
Retentiveness of insertion structure:50N 60±5s


  • Electrical:
  • Voltage rating: 125V AC rms
  • Current rating: 1.5Amp
  • Contact resistance: 100m Ohms (maximum)
  • Insulation resistance: 1,000M Ohms (minimum) at 500V DC
  • Dielectric strength: 750V AC rms, 60Hz and one minute
  • Environment:

    Cat3 Cat5e Cat6 keystone jack white

    Storage temperature: -40 to +85°C

    Operating temperature: 0 to 70°C

    Conform to TIA/EIA 568B category 5e

  • Mates with modular plug conforming to FCC part 68 and subpart F
  • Mechanical:
    • Housing material: PC UL94V-0
    • Inner material: flame-retardant ABS UL94V-0
    • PCB material: FR-4
    • Thickness: 1.6mm
    • Contact material: phosphor bronze stamp and PIN T=0.35mm
    • IDC contact material: phosphor bronze, T=0.50mm with nickel plating
    • Wire: 24 to 26AWG
  • Payment mothod Accepted:

    1) Paying with Paypal

    2) Paying with Westunion

    3) Paying with T/T Bank

    Shipping and delivery details:

    1); :sample or trial order: 2 working days

    2): Official order: 5 days after paymen

    3): Package: PE bag, or Customized with Blister or Slide Card or Gift box etc


    Warranty and terms:

    Warranty year is 1 year under normal use!
