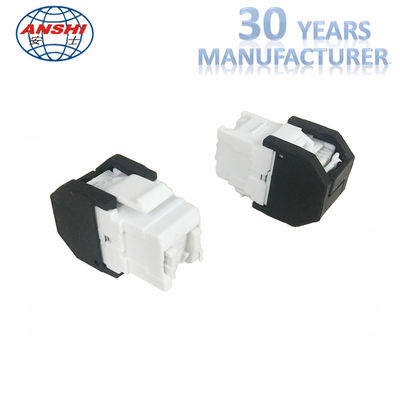

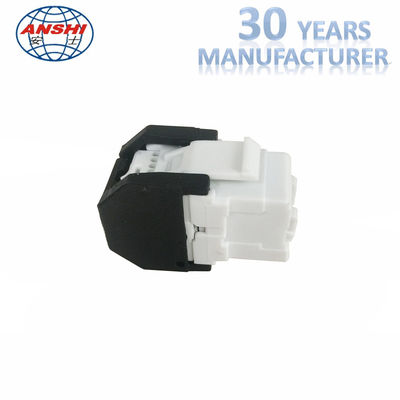

Unshielded 3M Type CAT6 UTP RJ45 Keystone Jack

Place of Origin ZHEJIANG, CHINA
Brand Name ANSHI
Certification SGS, ISO9001, DAS
Model Number XL-KEY-3M-01
Minimum Order Quantity Can discuss
Price Negotiable
Supply Ability 30000 Pieces per day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Contact Phosphor Bronze Plating Gold Plating
Port&Pin 8P8C Color White And Black
Category CAT6 UTP Material ABS Or PC
Highlight

UTP RJ45 Keystone Jack

,

Unshielded RJ45 Keystone Jack

,

3M Type CAT6 Keystone Jack

Leave a Message
Product Description

RJ45 3M Type UTP CAT6 Unshiled Keystone Jack​





3M Keystone Jack Specifications:

  • Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6 /5Erequirements.
  • Meet TIA/EIA TSB-40
  • Meet ISO/IEC Generic Cabling Standard 11801
  • Meet CENELEC Generic Cabling Standard EN50173
  • Angle: 180 Degree
  • Termination: Krone- 110- DUAL Type

3M Keystone Jack Electrical:

  • According to UL 1863
  • Current rating: 1.5 Amp Max.
  • Voltage rating: 150 Volts
  • Contact resistance: 20 m-ohm
  • Insulation Resistance: 500M-ohm
  • Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min

3M Keystone Jack Materials:

  • Housing: PC UL94V-0
  • IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
  • PCB: FR4 1.6mm(0.04") thickness, 2 layers
  • Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area.



Unshielded 3M Type CAT6 UTP RJ45 Keystone Jack 0Unshielded 3M Type CAT6 UTP RJ45 Keystone Jack 1Unshielded 3M Type CAT6 UTP RJ45 Keystone Jack 2
