SC / UPC FTTH fast connector Field assembly connector Quick Connector

Place of Origin China
Brand Name ANSHI
Certification ROHS, ISO9001
Model Number AS-ODF-KJT-SC/UPC-4
Minimum Order Quantity Negotiable
Price Negotiable
Supply Ability 500,000pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type SC/UPC Mode Singlemode
Application FTTH System Product Size 55mm*9mm
Insertion Loss ≤0.3dB Package Type 1000PCS/CTN

SC UPC Fiber Cable Accessories


Ftth Fiber Optic Cable Accessories

Leave a Message
Product Description

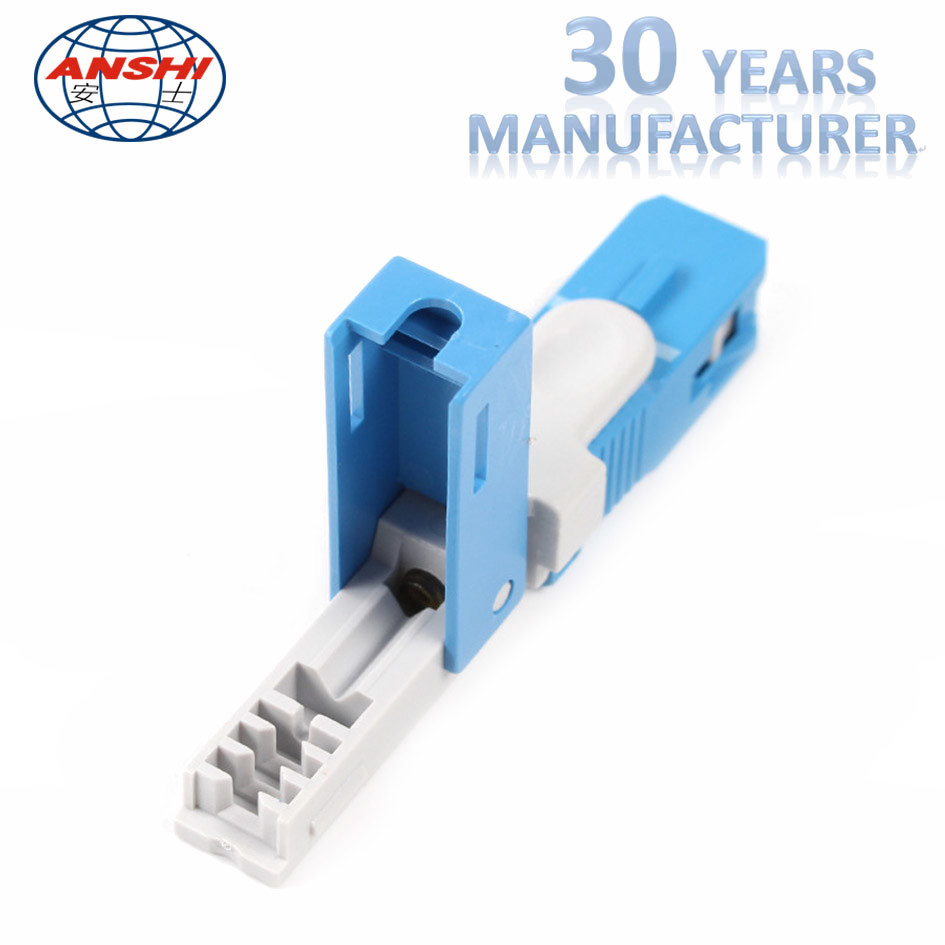

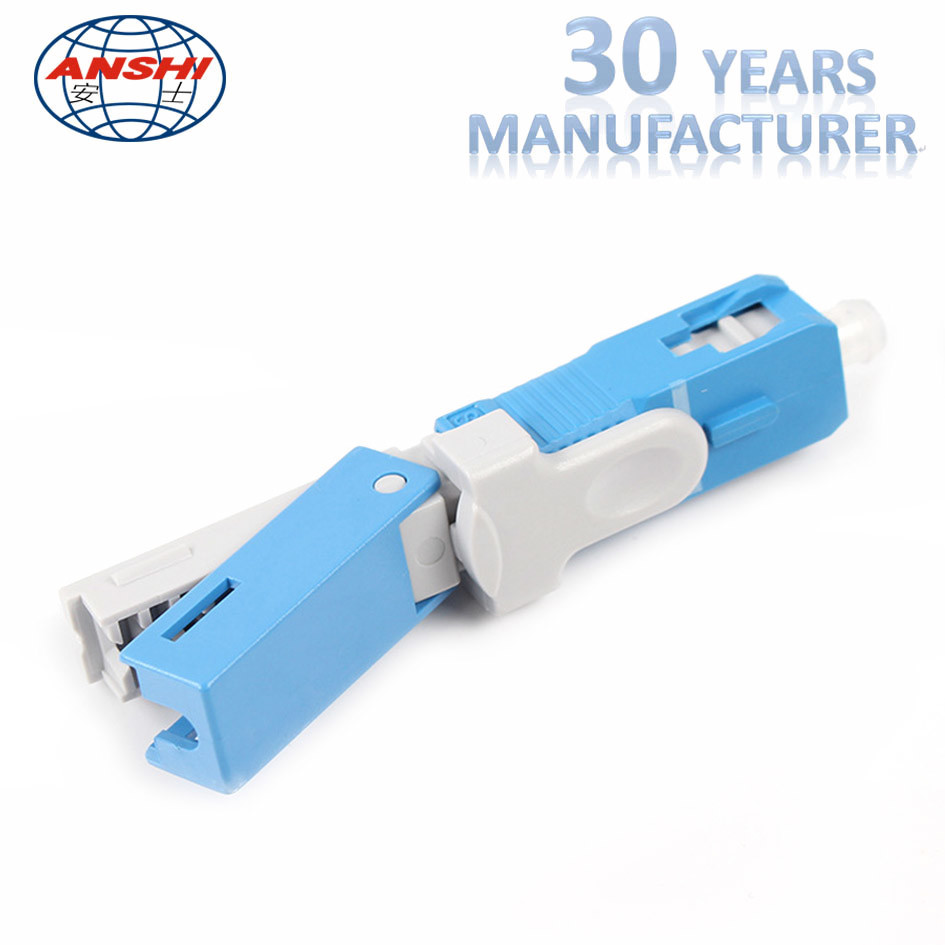

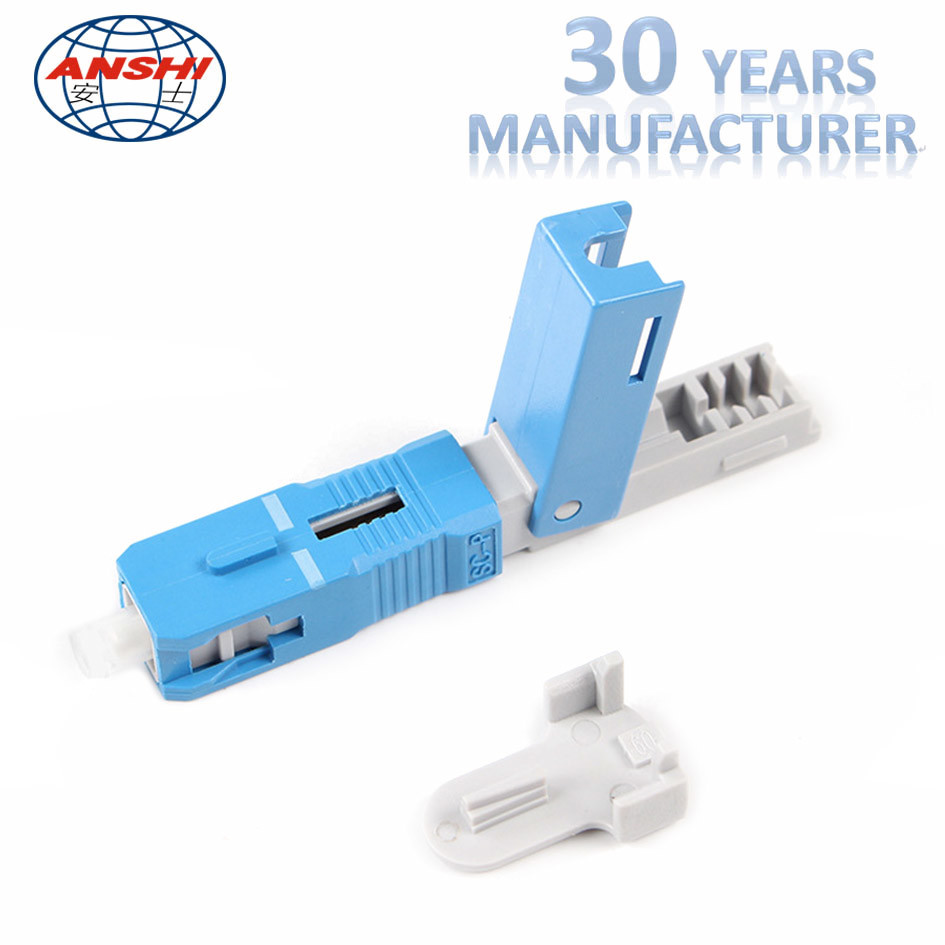

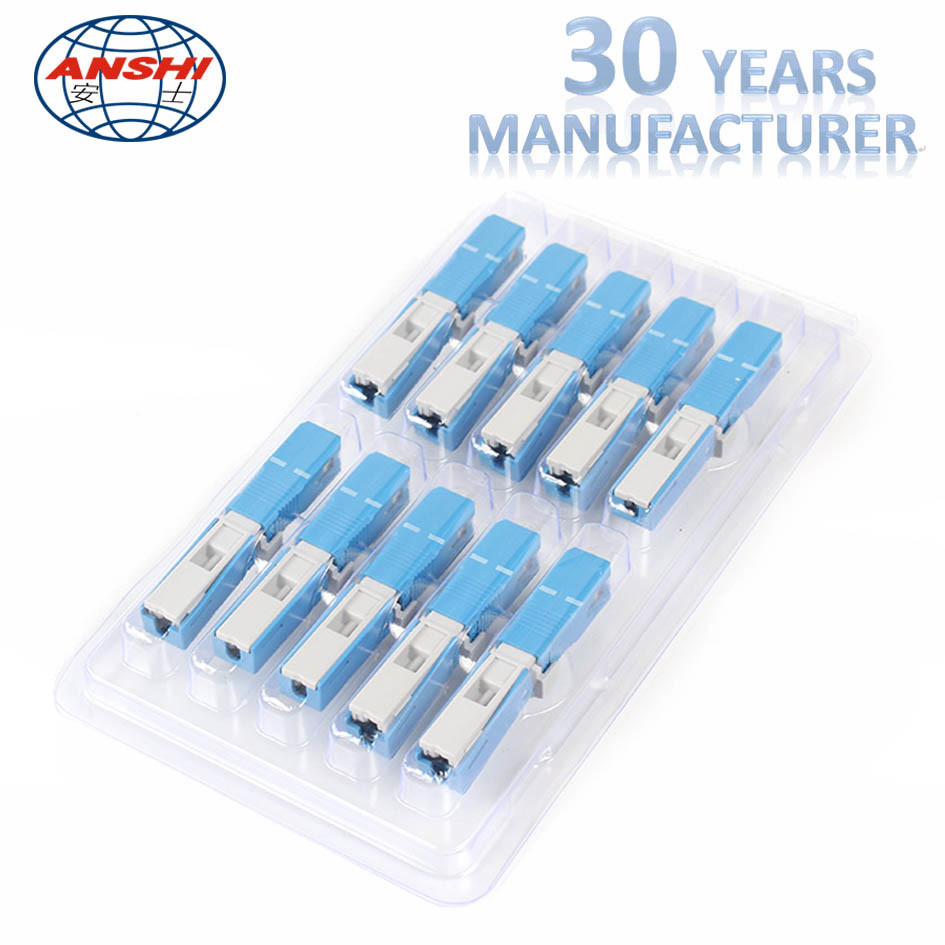

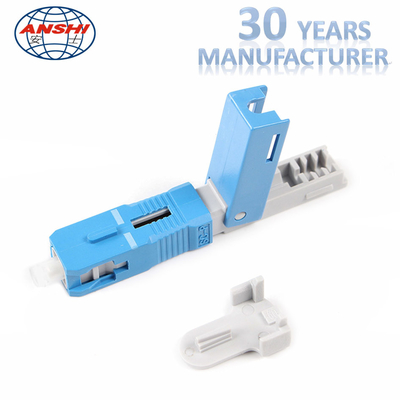

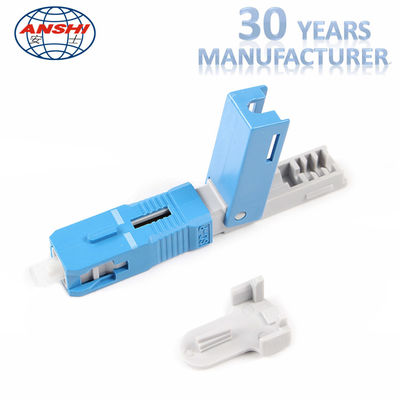

SC / UPC FTTH fast connector Field assembly connector Quick Connector



Fiber Optic Fast Connector is used for field-installable optical fiber connector. It can provide Open flow and Precast type of products,
whose optical and mechanical specification meets the standard optical fiber connector. it is designed for high quality and high efficiency
for installation. the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables. Adapted
fiber pre-installed structure, and convenient for field installation.





.Easy and fast installation, 30 seconds to learn install, 90 seconds to operate in the field
.No need of polishing or adhesive, ceramic ferrule with embedded fiber stub is pre-polished
.Fiber aligned in v-groove through the ceramic ferrule
.Low-volatile reliable matching liquid preserved by side cover
.Unique bell-shaped boot maintains the mini fiber bend radius
.Precision mechanical alignment insures low insertion loss
.Pre-installed, on-site assembly without end face grinding and consideration


.Used to open the FTTH fiber terminal end.
.Fiber Optic Distribution Frame, Patch Panel, ONU
.In the box, cabinet, such as wiring into the box.
.Maintenance or emergency restoration of fiber network
.The construction of the fiber end user access and maintenance.
.Optical fiber access of mobile base station.
.For FTTH Drop Cable field termination.
.For emergency fiber path repair.
.FTTH, LAN and other fiber optic system.



Product nameProduct name Fiber Optic Fast connector
Product size 55mm*9mm
Insertion Loss ≤0.3dB
Return Loss of pigtail ≥50dB
Type Singlemode
Suit cable diameter 0.9/2.0/3.0mm
Application scope FTTH FTTB FTTX Network
Test criteria Tension test, drop test, high and low temperature test
